➤ Used Mazak NT-X48 - Laser Cutter For sale | gindumac.com

Show in original language

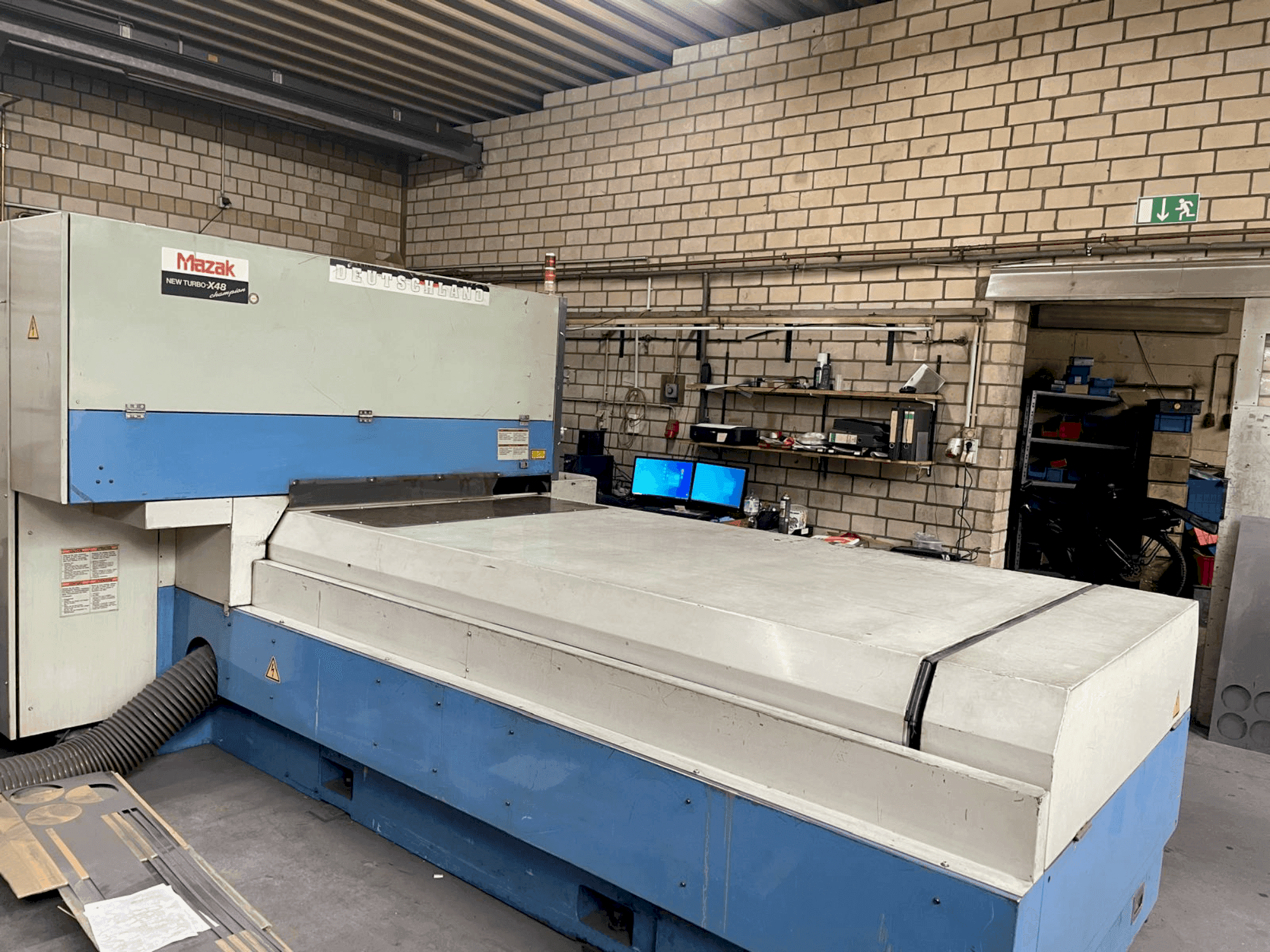

This 3-axis Mazak NT-X48 Laser cutting machine was manufactured in 1999. It features a 1.5 kW laser with a 5" focus lens, capable of handling maximum machining dimensions of 1250x2500 mm and a maximum loading capacity of 300 kg. The rapid traverse rates are impressive at 24m/min for X&Y axes and 20m/min for Z. It also includes a chip conveyor and a robust NC unit, MAZATROL L-32B. For more information about this Laser cutting machine, please reach out to us.

Overview

brand: Mazak
year: 1999
MODEL: NT-X48
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Immediately
control unit brand: MAZATROL

Technical Information - Mazak NT-X48

General Data

Machine weight: 9900 kg

Control Unit

Model: MAZATROL L-32B
Brand: MAZATROL

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 2650 mm
X-AXIS Rapid traverse: 24m/min
Y-AXIS Movement: 1270 mm
Y-AXIS Rapid traverse: 24m/min
Z-AXIS Movement: 100 mm
Z-AXIS Rapid traverse: 20m/min

Table

Table load: 300 kg

Media

Chip conveyor: Yes

Additional Equipment

- Machining head with a 5" focus lens on 1kW laser
- Worksheet clamp and locator: 3 clamps and 1 locator
- Suction system as shown in the picture

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max workpiece size: 2500 x 1250 x 12 mm
- - Worksheet table height: 900 mm
- - High precision with positioning accuracy of ±0. 01/500mm for x & y axes and ±0. 01/100mm for z axis
- - Rapid traverse rates enhance productivity
- - Hybrid type laser cutting machine suitable for various materials
- - Z axis profiling: contact and following type
- - Rated laser output: 1. 5 kw
Qualitative Machine Benefits:
- - Repeatability of ±0. 005 mm across all axes ensures consistent quality
- - Robust design with a significant machining dimension capacity

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
