Mazak - Quick Turn 200MSHU-TUR-MAZ-2017-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Mazak Quick Turn 200MS Turning
Show in original language

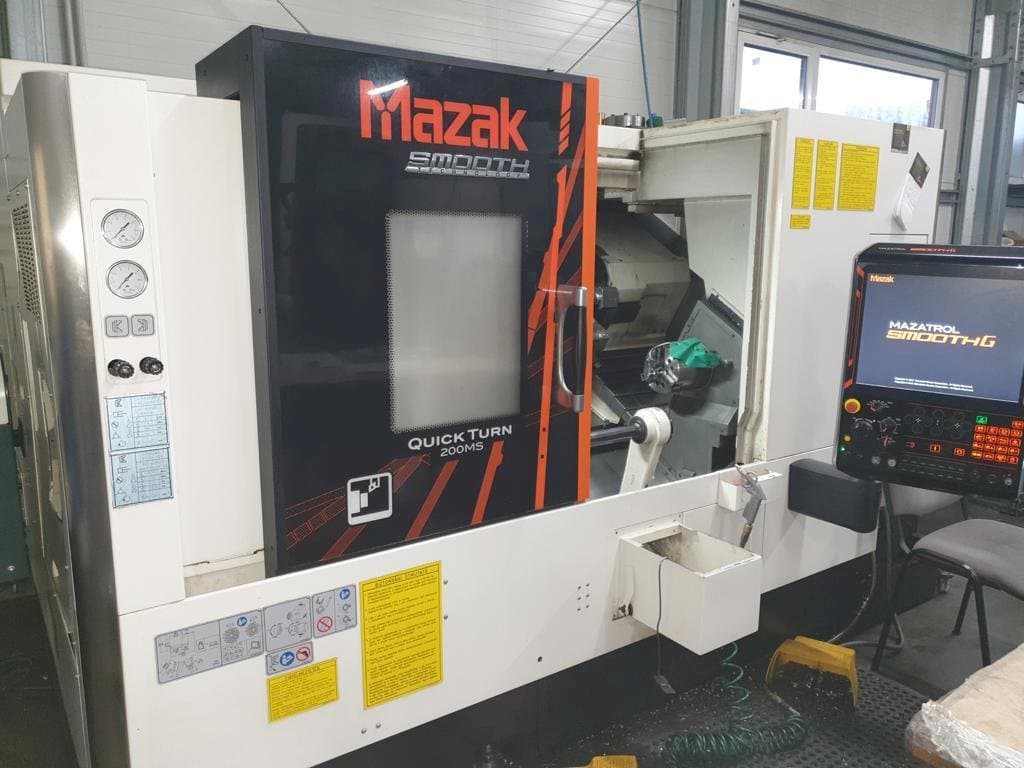

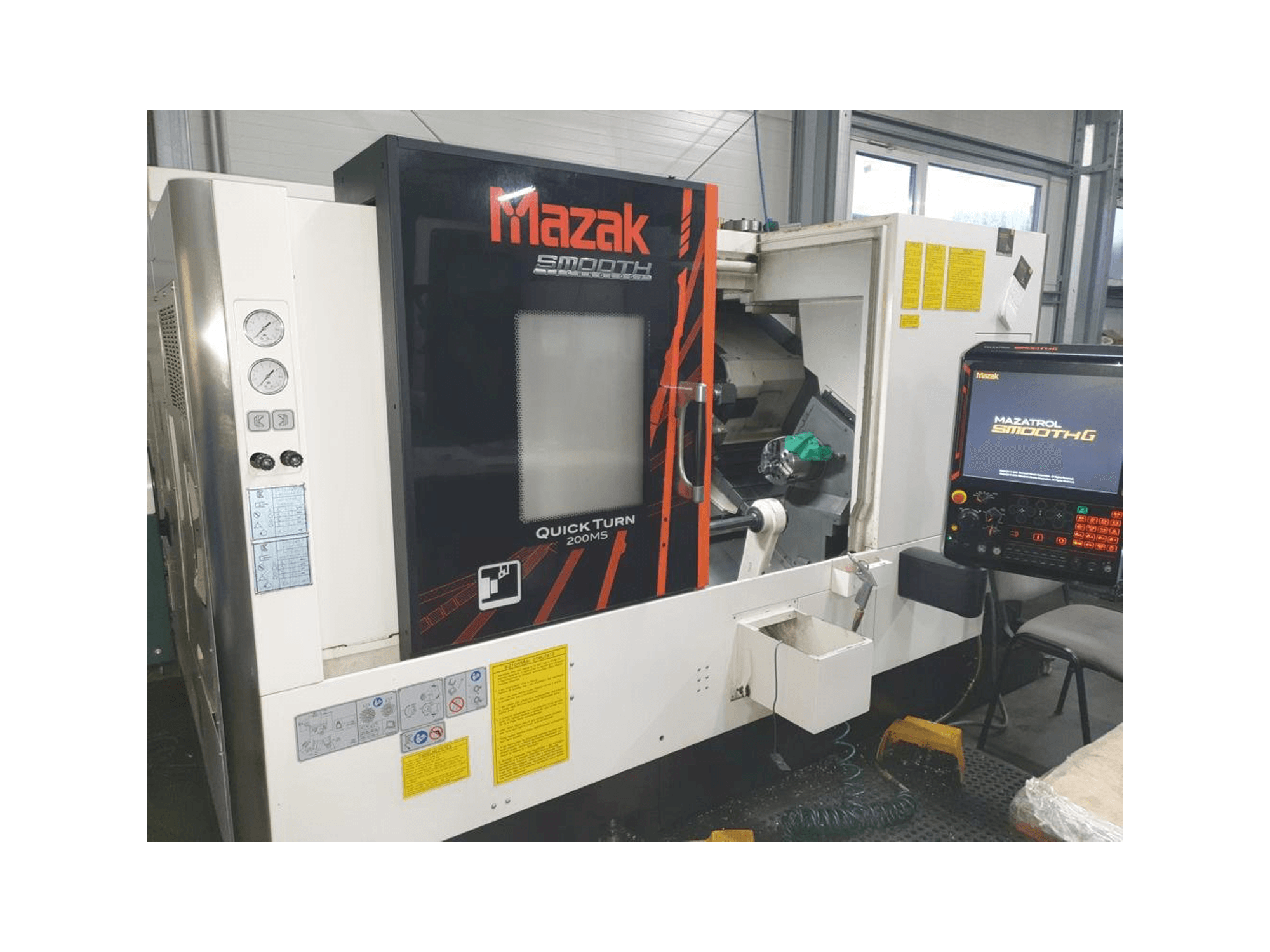

This Mazak Quick Turn 200MS Turning machine was manufactured in the year 2017. This 4th axis machine can work with a spindle speed up tp 5000 rpm. It contains different additional pieces such as a high power pressure cooling and a rod feed system.
Overview
- brand: Mazak
- year: 2017
- MODEL: Quick Turn 200MS
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
Technical Information - Mazak Quick Turn 200MS
Dimensions
- Machine Depth: 2760 mm
- Machine Height: 1857 mm
- Machine Weight: 5850 kg
Movement
- Number of Axes: 4
- X-axis Travel: 234 mm
- Y-axis Travel: 555 mm
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- High power Pressure cooling
- Automatic workpiece catcher
- Rod Feed System
- Coolant tank hood
Machine Benefits
Qualitative Machine Benefits
- Number of tools: 12
- Tool size (turning to outside diameter): 25mm
- Tool size (turning to inside diameter): 40 mm
- Tool size (rotary drill): 20 mm
- Milling spindle motor output power: 5. 5 kw
- Milling spindle maximum torque: 47 kw
- High speed x axis: 30 m/min
- High speed z axis: 33 m/min
- High speed w axis: 30 m/min
- Spindle center height: 1020 mnm
Technical Machine Benefits
- Spindle size: 203 mm
- Maximum rotation: 153 mm
- Standard machine diameter: 276 mm
- Maximum machining diameter: 380 mm
- Spindle cutting: 65 mm
- Spindle maximum chuck durable weight: 300 kg
- Rear spindle maximum support weight: 150 kg
- Engine output power: 26 kw
- Maximum torque: 465 nm
- Spring maximum speed: 6000 min.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
