Mazak Super Quick Turn 250M Lathe

Show in original language

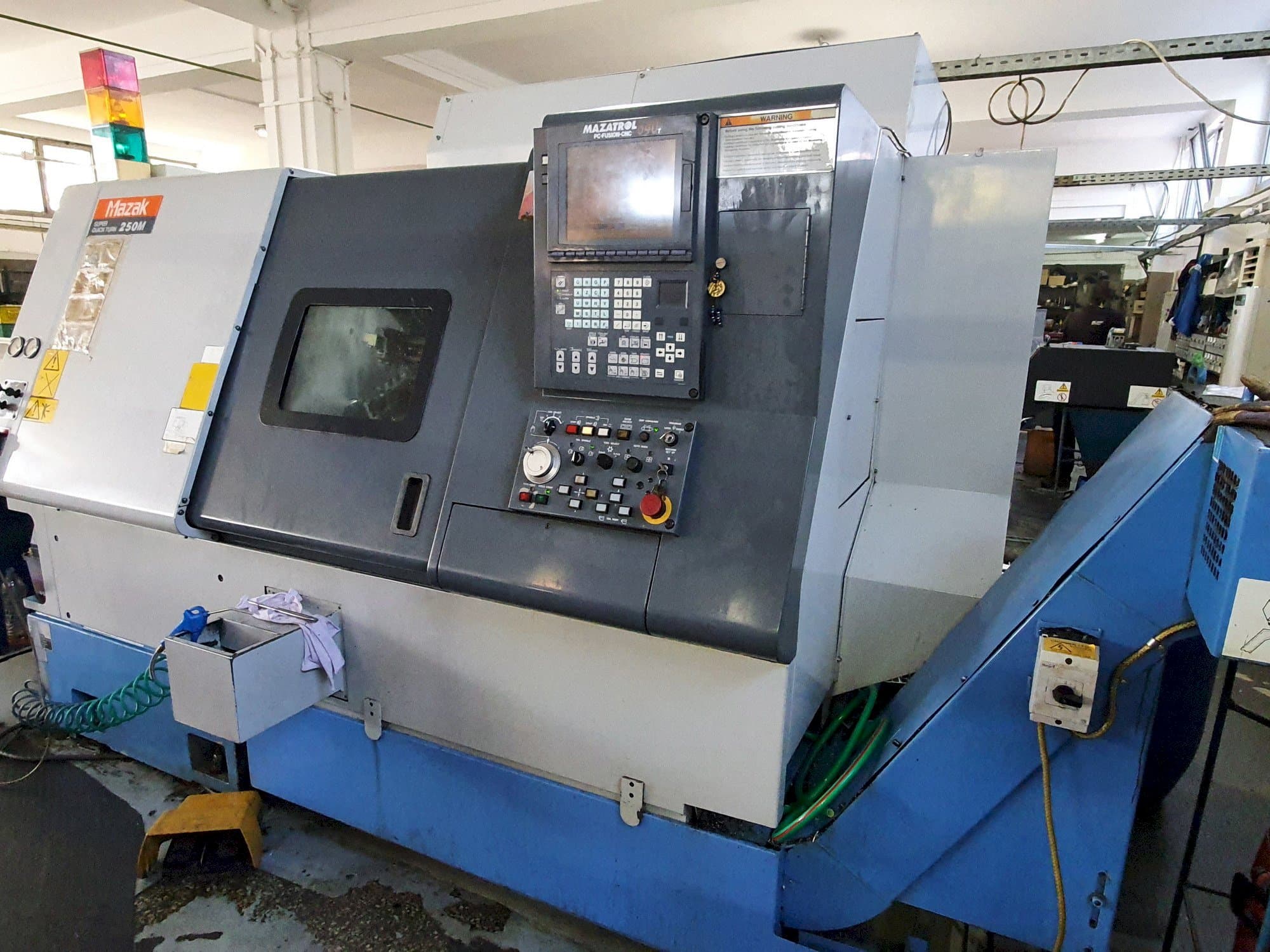

This Mazak Super Quick Turn 250M Lathe was built in the year 2001. It is operated through a Mazatarol PC Fusion CNC 640T control unit. This machine can perform with a speed up to 4000 rpm. This machine includes a bar feeder Fedek DH65L of 1,5m long.

Overview

brand: Mazak
year: 2001
MODEL: Super Quick Turn 250M
application type: Turning
Location: Greece
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Super Quick Turn 250M

General Data

Machine weight: 5050 kg

Control Unit

Model: PC Fusion CNC 640T
Brand: MAZATROL

Main drive

Spindle speed range: 35 - 4000 1/MIN
Spindle motor power: 18,5 kW

Movement

X-AXIS Rapid traverse: 30 m/min
Z-AXIS Rapid traverse: 30 m/min

Additional Equipment

- bar feeder Fedek DH65L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter 525 mm
- - Max. Machining diameter 300 mm
- - Max. Machining length 497 mm
- - Max. Bar material diameter 64 mm
- - Max. Torque 350 nm
- - Spindle nose a2 – 6 ''
- - Spindle bore 76 mm
- - Spindle indexing increments 0,001 °
- - Turret tool capacity 12

Extra information

- Rotary tools: Spindle speed 120-4.500 RPM, Power 3,7 kW Max. torque 35 Nm. C-axis 400 RPM Tailstock: Tailstock quill stroke150 mm, Tailstock centerMK 5, Tailstock travel400 mm Cutting feed rate: X/Z-axis0 - 5.000 mm/min, C-axis1 - 2.000 °/min Machine-data: Electrical power supply35 KVA. The machine is a full equiped with options: -kitagawa Chuck B-210, tool eye(automatic measurement), -parts catcher, -Chip conveyor, -synchronize tapping, -milling operation in all positions, -tailstock hydraulic. -Optional the machine has 6live driven tools (for face and for diameter). -all the diameter of protection plain tubes. -Navigation monitoring display -PCMCIA port -IC Port -Interface for MAZATROL DATA TRANSFER -Documentation.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
