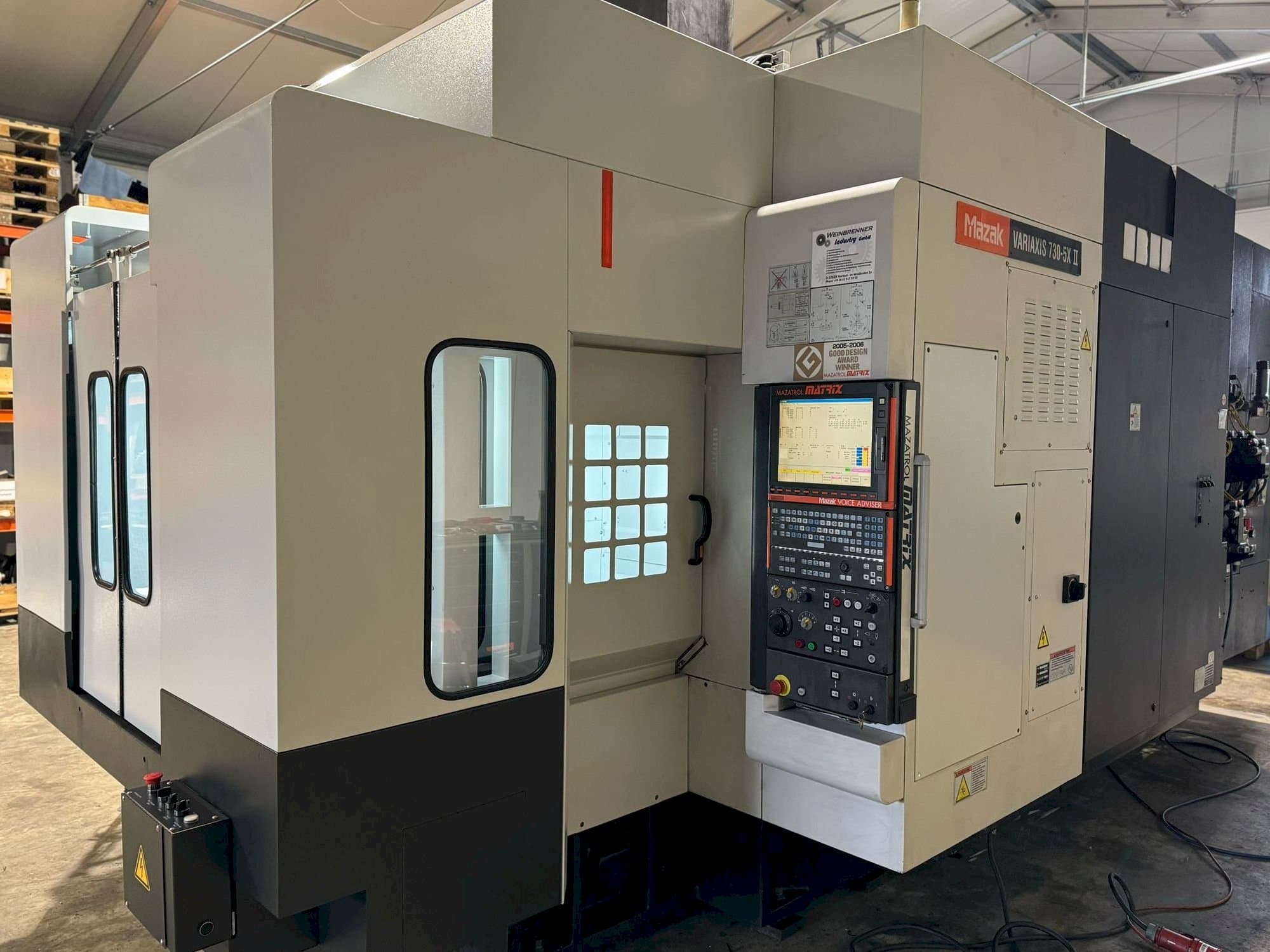

Front view of Mazak Variaxis 730-5X II machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Variaxis 730-5X II

Photo Gallery

Mazak - Variaxis 730-5X IIDE-MIL-MAZ-2007-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak VARIAXIS 730-5X II Vertical Machining center

Show in original language

This MAZAK Variaxis 730-5X II Vertical Machining center was manufactured in the year 2007. It is equipped with a Mazatrol Matrix control unit and has 5 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: Mazak
year: 2007
MODEL: Variaxis 730-5X II
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak Variaxis 730-5X II

General Data

Measurements width: 5900 mm
Measurements depth: 3907 mm
Measurements height: 3535 mm
Machine weight: 21000 kg

Control Unit

Model: Matrix
Brand: MAZATROL

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 22-30KW
Tool taper: SK50
Number of axis: 5

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 560 mm
A-AXIS Movement: -120° /+30° MM
C-AXIS Movement: +/-360° MM

Workpiece

Workpiece weight: 500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Interface fms / robot prepared
- - 2 compartment pallet changer
- - Automatic pallet door
- - Internal cooling ikz 25bar
- - Eia
- - External cooling
- - Chip flushing
- - Chip conveyor consep
- - Measuring probe 3d renishaw omp60
Qualitative Machine Benefits:
- - The machine has been partially overhauled, documentation is available. An accuracy protocol was created.
- - A laser measurement using renishaw xl 80 was carried out, as well as a quick check using renishaw ball bar. Protocols are available.
- - The ball screws of the x and y axes have been replaced.
- - All components have been checked, serviced, repaired or defective components replaced.
- - The machine has a consep system, which has also been checked and defective components replaced.
- - Documentation: oil mist extraction
- - Oil mist extraction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
