Mazak - VARIAXIS J-600IN-MIL-MAZ-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mazak VARIAXIS J-600

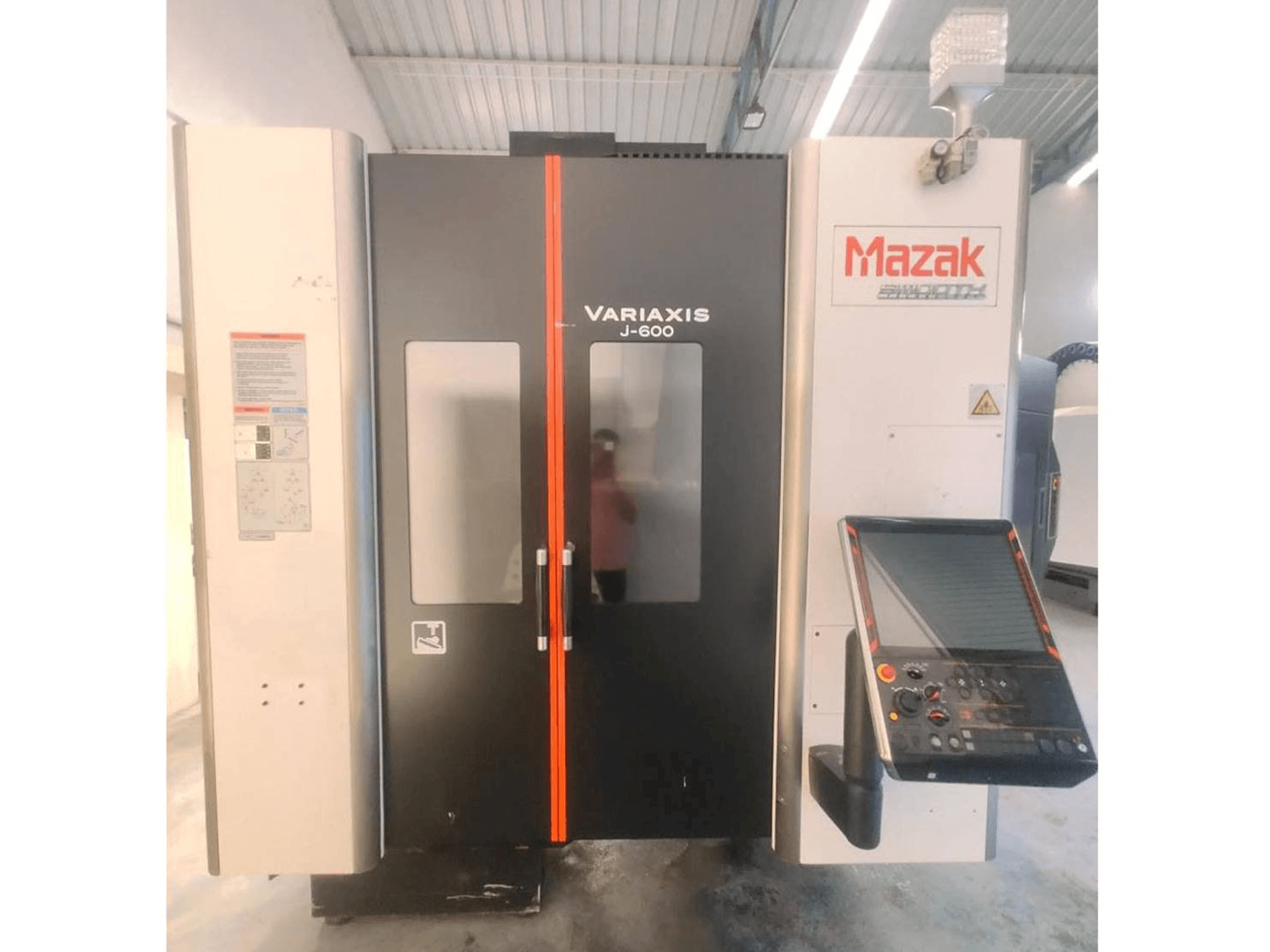

This Mazak VARIAXIS J-600 Vertical Machining Center was manufactured in 2017. This 5 axis machine has a record of 14433 hours, of which 4772 are auto operational time and 4574 are auto cutting time. It stands out for its spindle speed range 35-12000 rpm and its table diameter 600 x 500 mm. It has internal cooling 25 bar.
Overview
- brand: Mazak
- year: 2017
- MODEL: VARIAXIS J-600
- production hours: 14433
- application type: Milling
- Location: India
- machine type: Vertical Machining Centre
Technical Information - Mazak VARIAXIS J-600
Dimensions
- Machine Depth: 3325 mm
- Machine Height: 3060 mm
- Machine Weight: 11000 kg
- Table Length: 600 mm
- Table Load: 500 kg
- Table Width: 500 mm
Movement
- Number of Axes: 5
- X-axis Travel: 850 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Machine Benefits
Technical Machine Benefits
- Spindle with chiller unit; 4 + 1 axis simultaneously
- B axis travel -120 º to +90º; c axis travel +- 360º
- B/c axis rapid traverse y cutting feed 10800 º/min
- 30 tool atc; coolant through spindle (25 bar)
- Distance between spindle nose and top of the table: 70 to 580 mm
- Distance between spindle nose and center of the table: 20 to 530 mm
- Job possibility diameter 730 mm x 450 mm height
- X/y/z cutting feed: 30000 mm/min
- Magazine capacity 30 tools
- Has internal cooling 25 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
