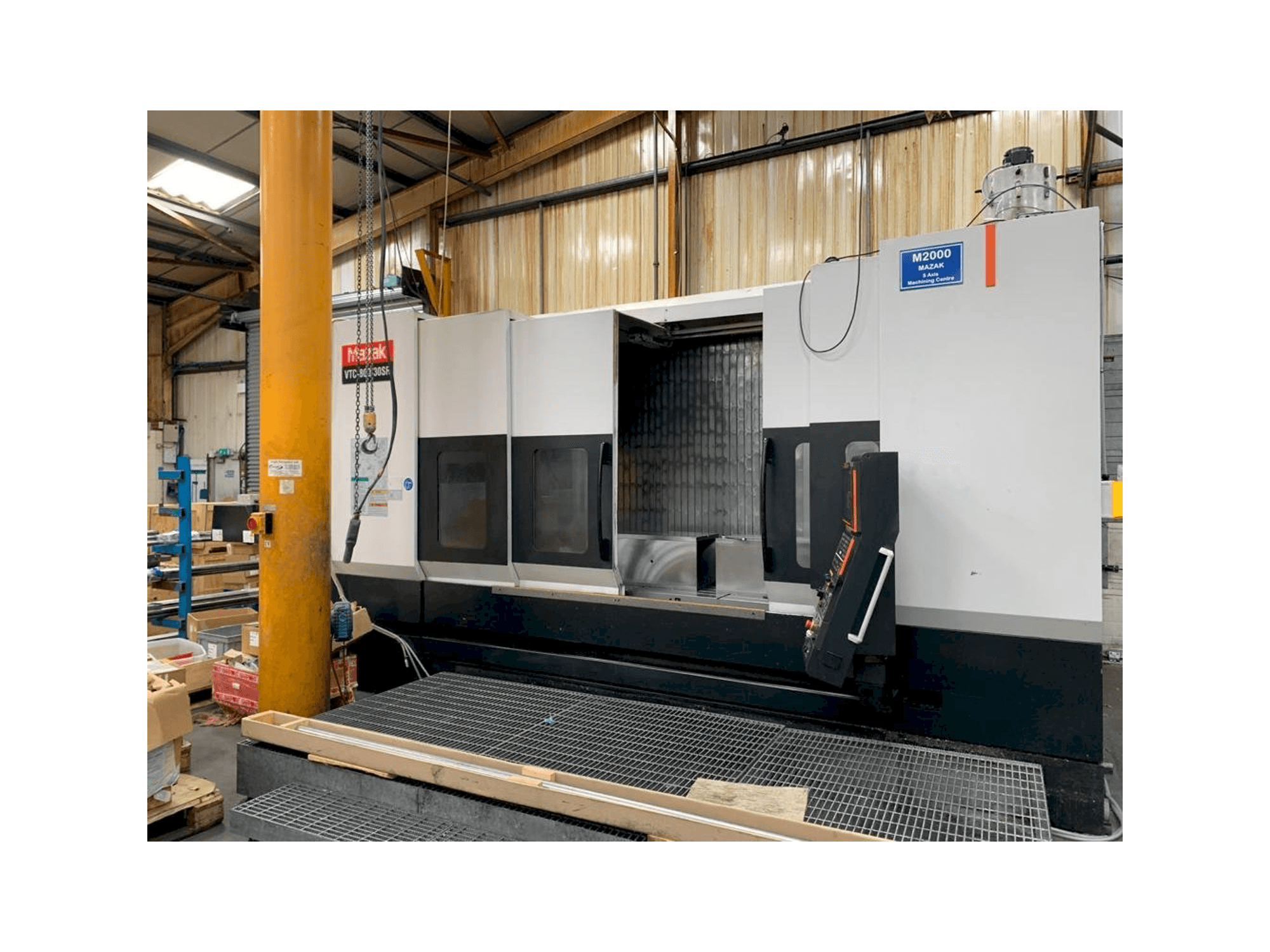

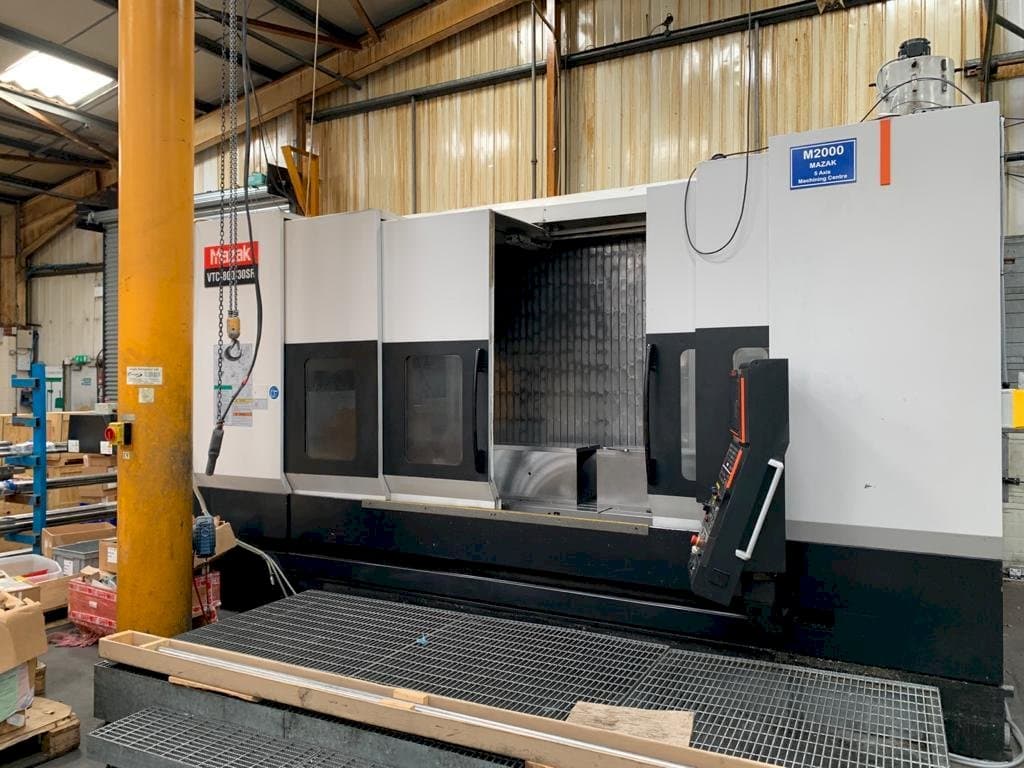

Front view of Mazak VTC-800/30SR machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak VTC-800/30SR

Photo Gallery

Mazak - VTC-800/30SRGB-MIL-MAZ-2009-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak VTC-800/30SR Vertical Machining Center

Show in original language

This Mazak VTC-800/30SR Vertical Machining Center was built in the United Kingdom in 2009. It has been on for 74968 hours of which 8703 are cutting hours. It is operated through a Mazatrol Matrix control unit. This 5 axis machine is can works with a spindle speed up to 18000 rpm. Includes a through spindle coolant and interlocked guards. Very good condition.

Overview

brand: Mazak
year: 2009
MODEL: VTC-800/30SR
production hours: 8703
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC-800/30SR

General Data

Measurements width: 5250 mm
Measurements depth: 3550 mm
Measurements height: 3262 mm
Machine weight: 16100 KG

Control Unit

Model: Matrix
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 35 kW

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 2500 KG

Table

Outer length: 3500 mm
Outer width: 820 mm

Tools

Slots in storage: 30
Type of tool holder: BT 40

Media

Main electronic connection: 415V / 50Hz
Power consumption: 77.65 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Rotary table
- - B-axis: +/- 110 degrees
- - Min. -max. Height under spindle: 140 - 860 mm
- - Rapid feedrate: 50 m/min
- - Through spindle coolant
- - Coolant
- - Interlocked guards
Qualitative Machine Benefits:
- - Includes machine manual
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
