MICROCUT - HBM-4HU-MIL-MIC-2018-00001

Name: MICROCUT HBM-4
Brand: MICROCUT
SKU: HU-MIL-MIC-2018-00001
Price: 195791 GBP
Availability: InStock

£ 195,791

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MICROCUT HBM-4 For Sale | gindumac.com

Show in original language

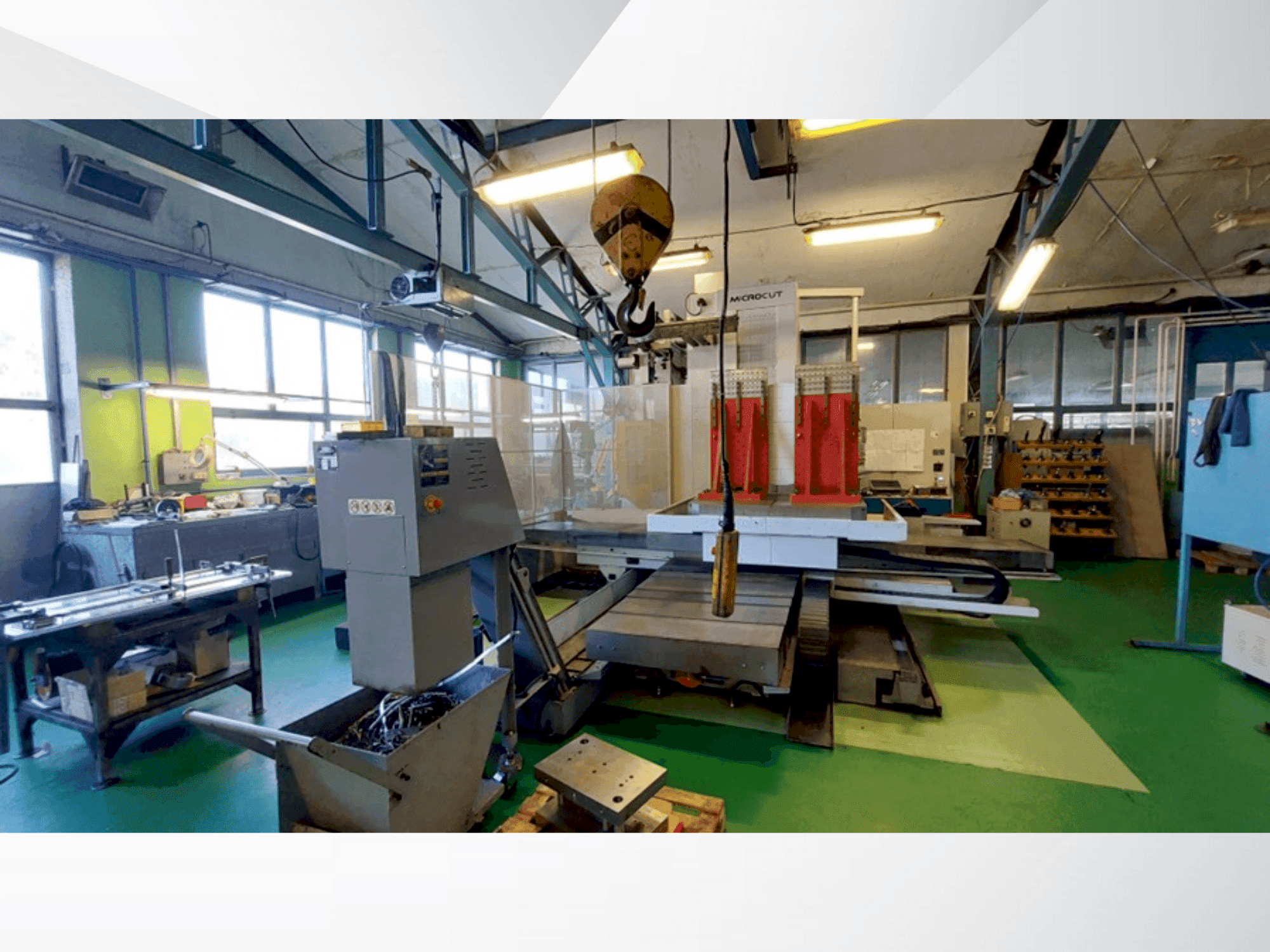

This 5-axis MICROCUT HBM-4 boring machine was manufactured in 2018. It features a robust Meehanite cast iron structure, high spindle speeds with low vibration, and a Fanuc 31iMB control for precision. The spindle supports a 150 mm diameter and operates at speeds up to 3000 rpm. The table can handle loads up to 5000 kg, with a working area of 1250 x 1500 mm. If you are looking to get high-quality boring capabilities, consider the MICROCUT HBM-4 machine we have for sale. Contact us for more information.

Overview

brand: MICROCUT
year: 2018
MODEL: HBM-4
production hours: 500
application type: Other Machine Tools
Location: Hungary
machine type: Boring Machine (Metal)
control unit brand: FANUC

Technical Information - MICROCUT HBM-4

Control Unit

Control Brand: FANUC
Control Model: 31iMB

Dimensions

Machine Depth: 7750 mm
Machine Height: 3700 mm
Machine Weight: 22500 kg
Table Length: 1250 mm
Table Load: 5000 kg
Table Width: 1500 mm

Movement

B-axis Max: 0.001°

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 3000 RPM
Taper Size: ISO 50

Additional Information

Additional equipment

Tool Changer Type: Arm type / Tool Positions: 60 / Max Tool Diameter: Ø125 mm / Max Tool Length: 300 mm / Max Tool Weight: 25 kg / Tool Change Time: 9 seconds
Standard Accessories: Fanuc 0i CNC control, spindle oil cooler, chip conveyor, high-pressure cooling system (30 bar), hydraulic system and central lubrication, electronic handwheel, workspace lighting, spindle vibration monitoring
Optional Features: 0.001° table indexing, 3D Fanuc option for universal milling head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
