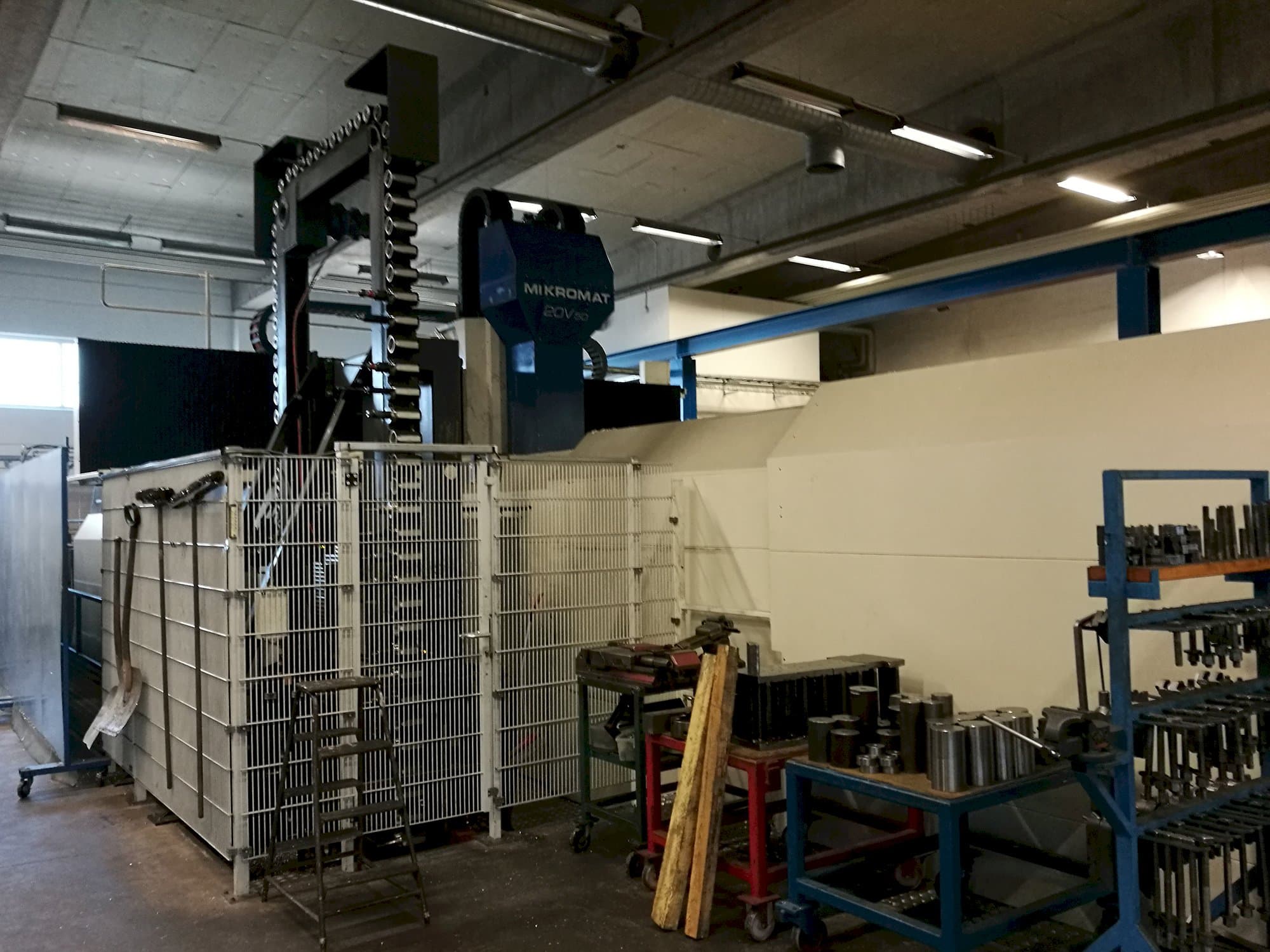

MIKROMAT 20V 5D Milling Machine

Show in original language

This MIKROMAT 20V 5D Milling Machine was produced in the year 2007 in Germany and counts with approximately 15000 working hours. Equipped with a SIEMENS SINUMERIK 804 D Control unit, this machine counts with 2 spindles, capable of working up to 24000 rpm. This model incorporates an extra table and extra tool slots.

Overview

brand: MIKROMAT
year: 2007
MODEL: 20V 5D
production hours: 15000
application type: Milling
Location: Sweden
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - MIKROMAT 20V 5D

General Data

Measurements width: 11500 mm
Measurements depth: 6400 mm
Measurements height: 5500 mm
Machine weight: 80000 kg

Control Unit

Model: SINUMERIK 804 D
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 7000-24000 rpm 1/MIN

Movement

X-AXIS Movement: 5700 mm
Y-AXIS Movement: 3400 mm
Z-AXIS Movement: 1250 mm

Workpiece

Workpiece drm: 1180 mm
Workpiece x: 5000 mm
Workpiece y: 2600 mm
Workpiece z: 1000 mm

Table

Outer length: 5000 mm
Outer width: 2400 mm
Height adjustment: 14
Distance between: 160 mm

Tools

Slots in storage: 90
Max weight: 25 kg
Max tool diameter: 125 mm
Max tool length: 450 mm
Type of tool holder: ATC 90

Media

Main electronic connection: 400 V
Power consumption: 196 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Extra table

Machine Benefits

Qualitative Machine Benefits

The high speed spindle is brand new

Technical Machine Benefits

The two heads are equipped with hsk63 and hsk100.
The machine is very robust

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
