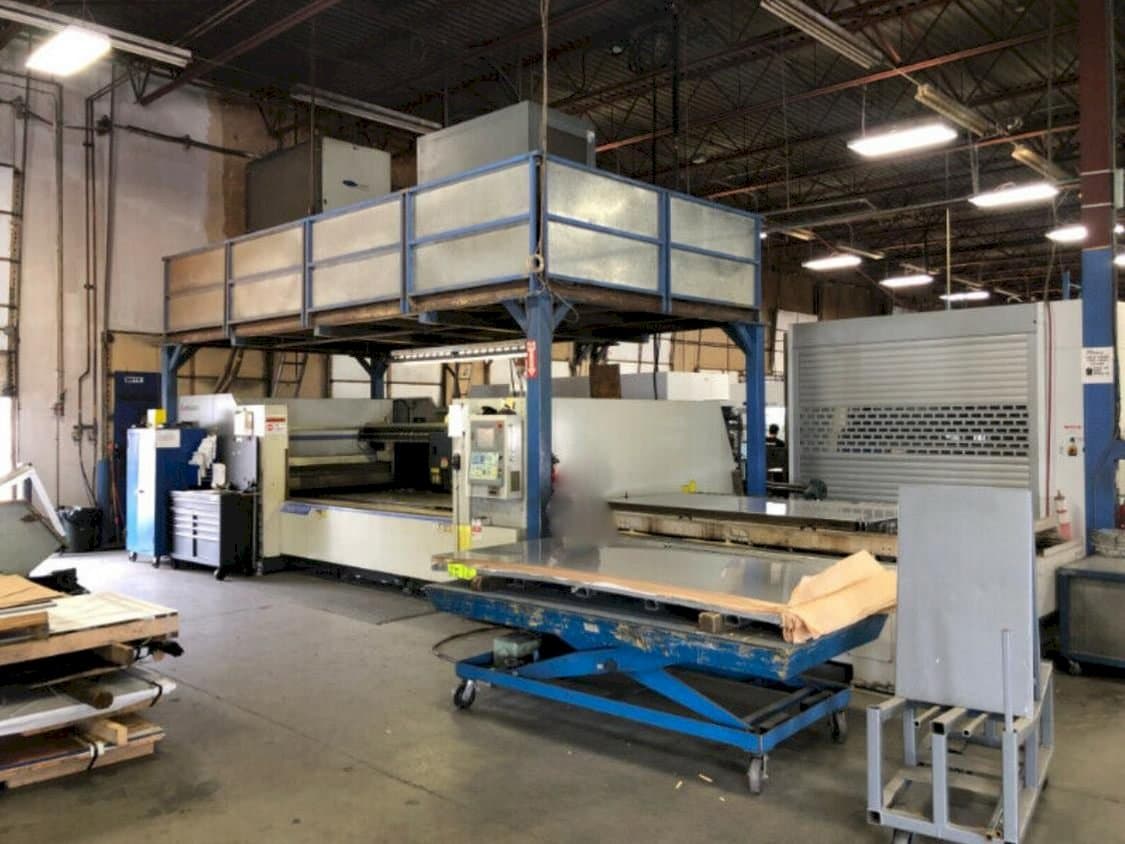

Front view of Mitsubishi ML3015LVP PLUS 40CFX-A machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mitsubishi ML3015LVP PLUS 40CFX-A

Photo Gallery

Mitsubishi - ML3015LVP PLUS 40CFX-ACA-LAS-MIT-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Mitsubishi ML3015LVP PLUS 40CFX-A Laser Cutting Machine

Show in original language

This Mitsubishi ML3015LVP PLUS 40CFX-A Laser Cutting Machine was built in the year 2006. This machine incorporates a laser power of 4 kW and can cut steel sheets of a size of 1524x3048 mm.

Overview

brand: Mitsubishi
year: 2006
MODEL: ML3015LVP PLUS 40CFX-A
application type: Cutting
Location: Canada
machine type: CO2 Laser Cutting Machine

Technical Information - Mitsubishi ML3015LVP PLUS 40CFX-A

General Data

Measurements width: 11690 mm
Measurements depth: 5695 mm
Machine weight: 12400 kg

Main drive

Laserpower: 4 kW
Laser type: CO2

Movement

X-AXIS Movement: 3101 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 90 mm

Workpiece

Workpiece weight: 930 kg

Table

Outer length: 1524 MM
Outer width: 3048 mm

Additional Information

Additional equipment

Chiller

Machine Benefits

Qualitative Machine Benefits

Drive motor type intelligent ac servo
Pallet changer: change time approx. 25 sec
Drive mechanism chain
Excitation method 3-axis cross flow, sd
Control method power feedback
Power stability plus/minus 1 percent
Beam mode low-order
Consumption amount 3 liter/hour
High-speed capacitance height sensor

Technical Machine Benefits

Max. Workpiece size: 3050 x 1525 mm
Processing access auto up/down style front door
Max. Processing feedrate: 29972 mm
Machine structure fixed table / flying optic
Automatic heavy-duty pallet changer
Programmable gas assist w/ high pressure bypass system
Closed loop air cooler
Mitsubishi phx cutting head
Beam optimizer
Multifunction visible alignment laser

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
