Miyano - ABX-51TH2SI-TUR-MIY-2009-00001

Name: Miyano ABX-51TH2
Brand: Miyano
SKU: SI-TUR-MIY-2009-00001
Price: 94900 GBP
Availability: InStock

£ 94,900

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Miyano ABX-51TH2 For sale | gindumac.com

Show in original language

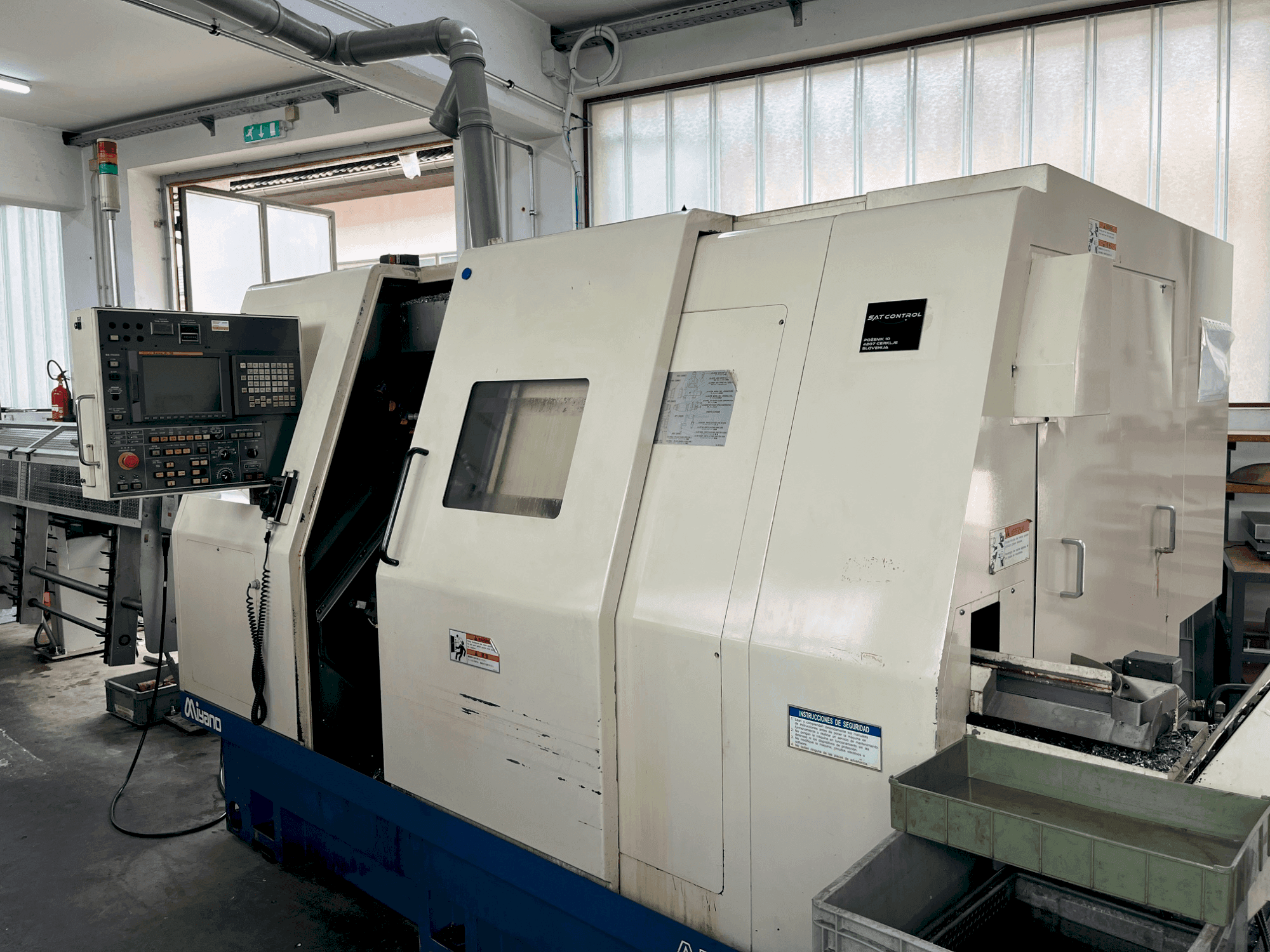

This 9-axis Miyano ABX-51TH2 was manufactured in 2009, featuring a FANUC Series 16i-TB control system. It offers a turning diameter of 125mm and supports a bar diameter of 51mm. Equipped with a chuck diameter of 150mm, the machine provides a spindle speed of 5000 rpm. It includes a main spindle motor of 15 kW and a sub spindle motor of 11 kW, with dual 12-station toolholders. Reach out for further details regarding this swiss type turning machine.

Overview

brand: Miyano
year: 2009
MODEL: ABX-51TH2
application type: Turning
Location: Slovenia
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Miyano ABX-51TH2

Control Unit

Model: Series 16i-TB
Brand: FANUC

Main drive

Spindle speed range: 5000 rpm 1/MIN
Number of axis: 9

Additional Equipment

- Automatic bar feeder: LNS SPRINT 552-565 (2009)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor power: main spindle 15 kw, sub spindle 11 kw
- - X-axis: x-1, x-2, x-3 axis travels 190 mm each
- - Y-axis: y-1, y-3 axis travels +/- 40 mm
- - Z-axis: z-1 axis 257 mm, z-2 axis 500 mm, z-3 axis 650mm
- - High spindle speed, multiple axes for complex operations, powerful spindle motors
Qualitative Machine Benefits:
- - High precision with fanuc control, increased versatility and productivity with sub-spindle and multiple tool stations

Extra information

- Turning diameter: 125 mm Chuck diameter: 150 mm Bar pitch: 52 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
