- MOLLART MATRIX DHD1510-18S Drilling machine

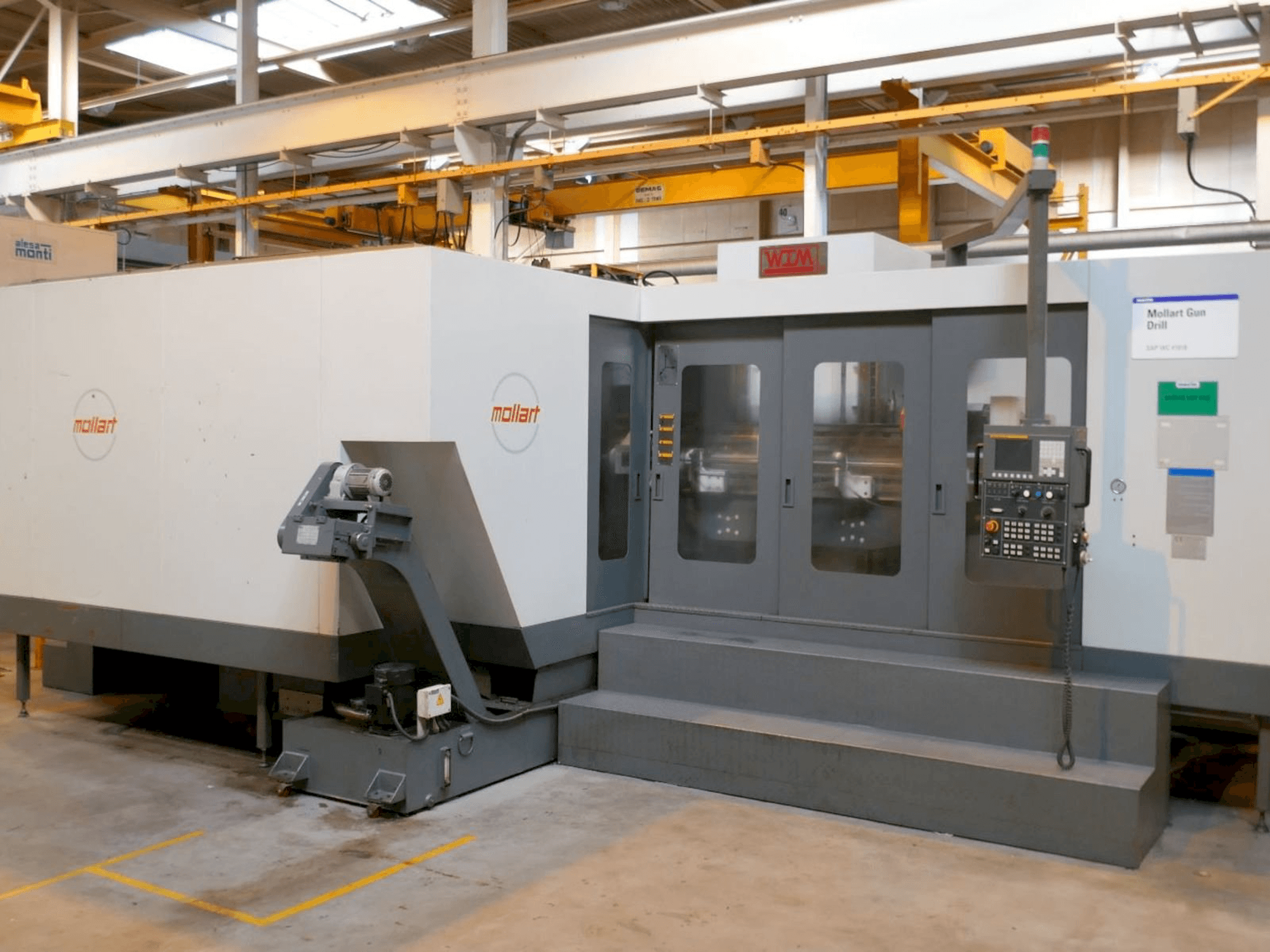

This MOLLART MATRIX DHD1510-18S Drilling machine was built in the year 2011 in the United Kingdom. It is equipped with a FANUC Series 0i-MD control unit. The machine has a spindle speed of 0 - 6000 rpm, a drilling depth of 1850 mm, and includes a selection of single lip gun drill tools 10mm – 16mm.
Overview
- brand: MOLLART
- year: 2011
- MODEL: MATRIX DHD1510-18S
- application type: Other Machine Tools
- Location: United Kingdom
- machine type: Drilling Machine (Metal)
- control unit brand: FANUC
Technical Information - MOLLART MATRIX DHD1510-18S
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-MD
Dimensions
- Machine Depth: 6000 mm
- Machine Height: 3000 mm
- Machine Weight: 12000 kg
- Table Length: 1200 mm
- Table Load: 600 kg
- Table Width: 1700 mm
Movement
- X-axis Travel: 1500 mm
- Y-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Drilling diameter range from solid: 3 mm - 40 mm
- Drilling depth: 1850 mm
- Drilling feeds: 0 – 3000 mm/min
- Coolant pressure: 2 – 11 mpa
- Full guarding
- Whip guide set
- Chip conveyor
- High pressure coolant system
- Chiller
- Selection of single lip gun drill tools 10mm – 16mm.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
