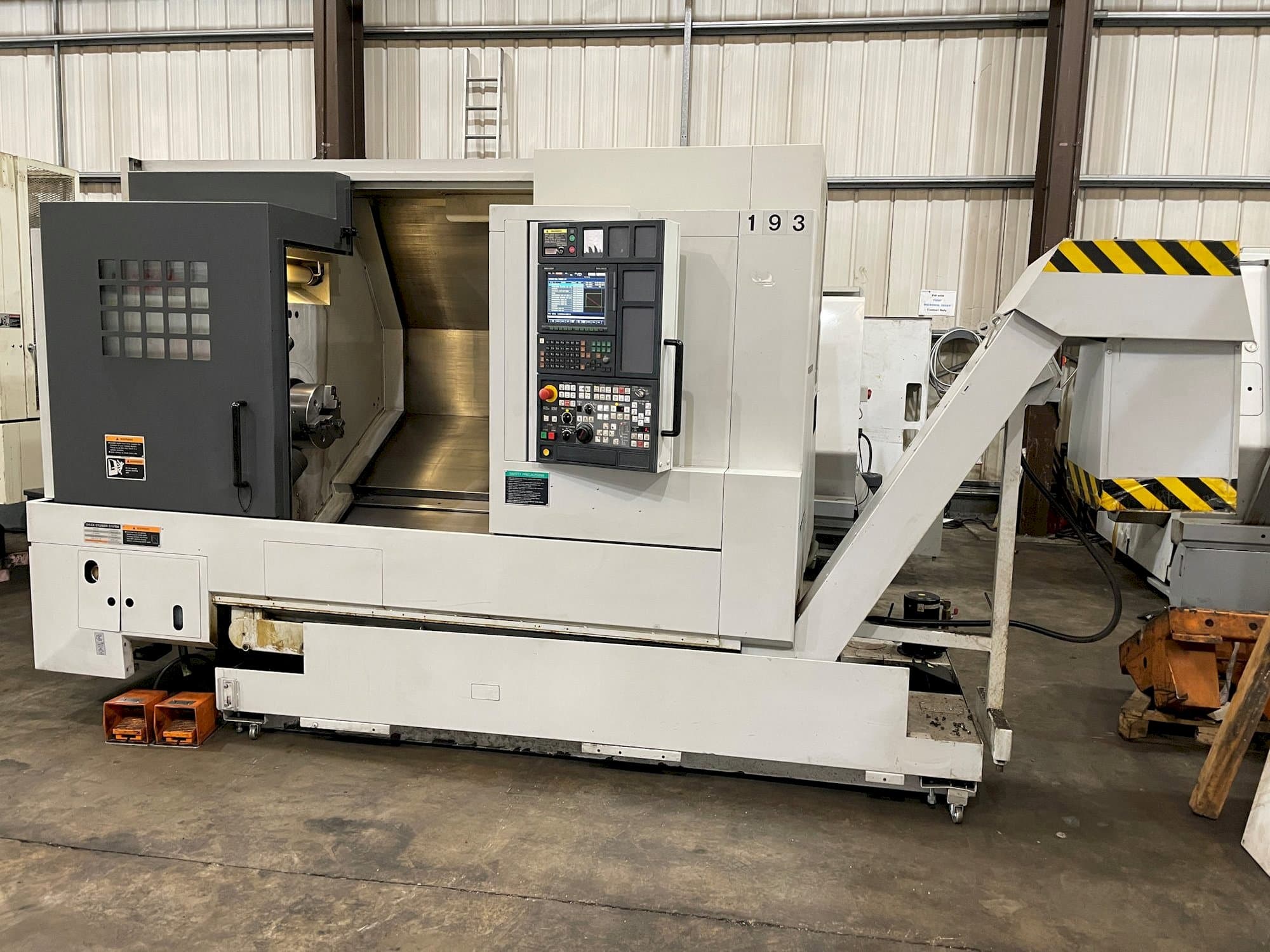

Front view of MORI SEIKI NL 2500/700 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NL 2500/700

Photo Gallery

MORI SEIKI - NL 2500/700GB-TUR-MOR-2007-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI NL 2500/700 Lathe

Show in original language

This MORI SEIKI NL 2500/700 Lathe machine was built in the year 2007 in Japan. It is equipped with a Mori Seiki MSX-850 III control unit. This 3 axis machine works with a spindle speed up to 4000 rpm. Includes a tool setter, tailstock, interlocked guards, low volt light, and 3 jaw chuck.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NL 2500/700
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine

Technical Information - MORI SEIKI NL 2500/700

General Data

Measurements width: 3100 mm
Measurements depth: 1950 mm
Measurements height: 2133 mm
Machine weight: 5818 kg

Control Unit

Model: MSX-850 III

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 18.5/15KW
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
Z-AXIS Movement: 795 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 924 mm
- - Swing over the cross-slide: 754 mm
- - Maximum cutting diameter: 355 mm
- - Maximum cutting length: 703 mm
- - Bar capacity: 80 mm
- - Rapid feedrates: 30 m/minute
- - Tailstock body travel: 734 mm, taper mt #5
- - Tool setter, tailstock, interlocked guards, low volt light, 3 jaw chuck
- - 3 controlled axes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
