MORI SEIKI - NL 2500 SY/700DE-TUR-MOR-2004-00001

Name: MORI SEIKI NL 2500 SY/700
Brand: MORI SEIKI
SKU: DE-TUR-MOR-2004-00001
Price: 49650 GBP
Availability: InStock

£ 49,650

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NL 2500 SY/700 For Sale | gindumac.com

Show in original language

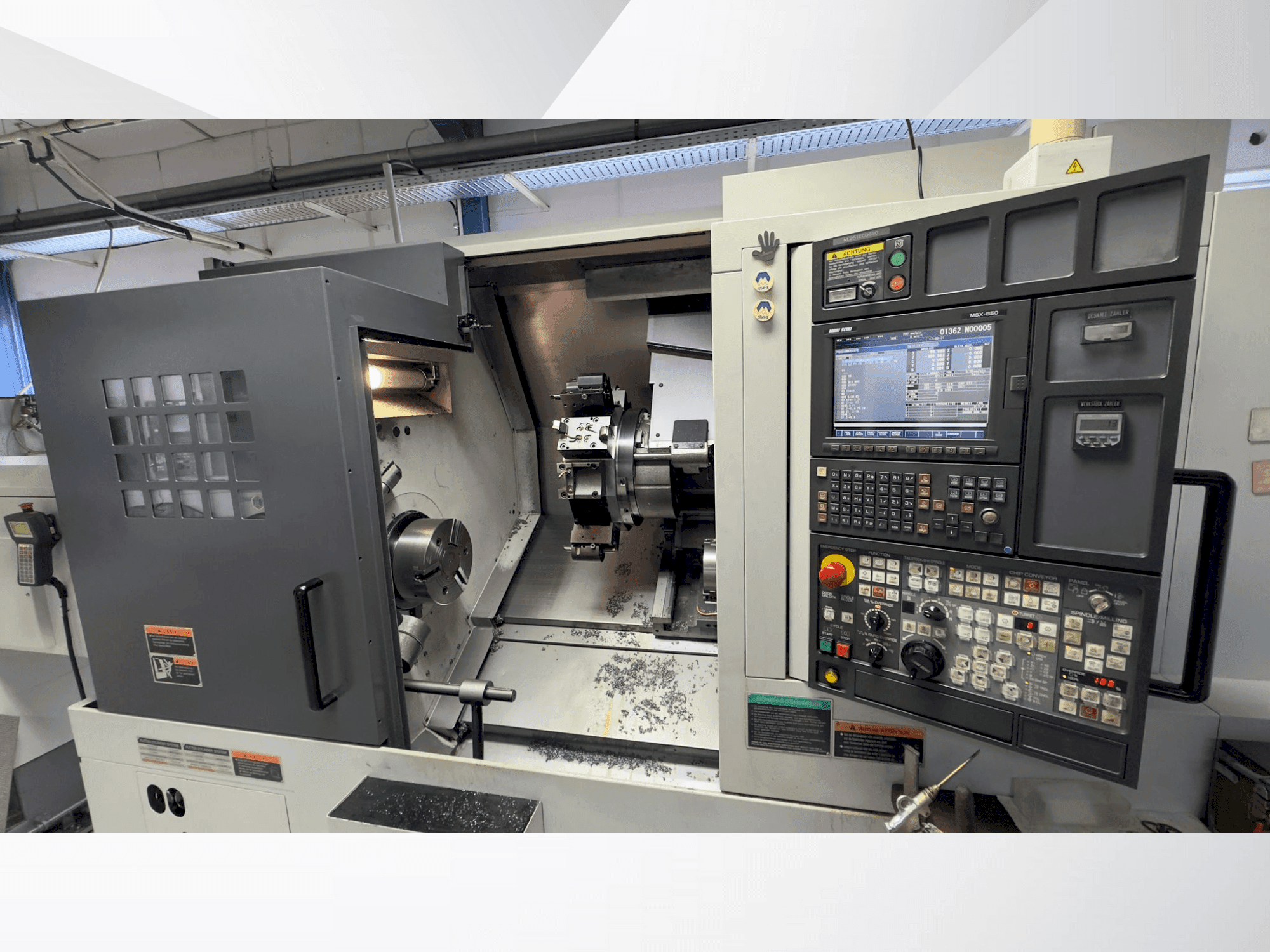

This 4-axis MORI SEIKI NL 2500 SY/700 turn-mill centre was manufactured in 2004. Ideal for precision machining, it features a robust design and advanced control system. Consider the opportunity to buy this MORI SEIKI NL 2500 SY/700 turn-mill centre. Contact us for more information.

Overview

brand: MORI SEIKI
year: 2004
MODEL: NL 2500 SY/700
application type: Turning
Location: Germany
machine type: Turn-Mill Centre

Technical Information - MORI SEIKI NL 2500 SY/700

General Data

Measurements width: 2050 mm
Measurements depth: 3100 mm
Measurements height: 2120 mm
Machine weight: 6200 kg

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 100 (±50 mm)
Z-AXIS Movement: 795 mm

Additional Equipment

- Counter-spindle: Yes / Y-axis: Yes / Driven tools: Yes/ Bar loader: Yes
- Number of tool stations: 12 (10) / Shank height for square tool: 25 mm / Boring bar tool shank: Main Spindle: Max. 50 mm / Sub-spindle Max. 32 mm / Boring bar tool shank: Main Spindle: Max. 50 mm / Sub-spindle Max. 32 mmz / Turret switching time: 0.25 s / Max. speed of driven tools: 6000 rpm
- Rapid traverse speed: X/Z-axis: 30000 mm/min / Y-axis: 10000 mm/min / C-axis: 400 min⁻¹

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 923. 8 mm (579. 8 mm with front cover) / swing over cross slide: 755 mm / max. Turning diameter: 356 mm / standard turning diameter: 275 mm / max. Turning length: 510 mm / max. Bar capacity: 80 mm
- - B-axis travel (sub-spindle movement): 734 mm
- - Max. Spindle speed: main spindle: 4000 rpm / sub-spindle: 6000 rpm / spindle nose: main spindle: jis a2-8 / sub-spindle: jis a2-5 / spindle bore: main spindle: 91 mm / sub-spindle: 43 mm / spindle bearing (inner diameter): main spindle: 140 mm / sub-spindle: 85 mm
- - Spindle motor power: main spindle: 16. 5/18. 5/15 kw // sub-spindle: 11/7. 5 kw
- - Drive motor for driven tools: 5. 5/5. 5/3. 7 kw
- - Feed motor power: x/y/b: 2. 0 kw // z: 3. 5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
