MYLAS - DT52SI-TUR-MYL-2018-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- MYLAS DT52 Lathe
Show in original language

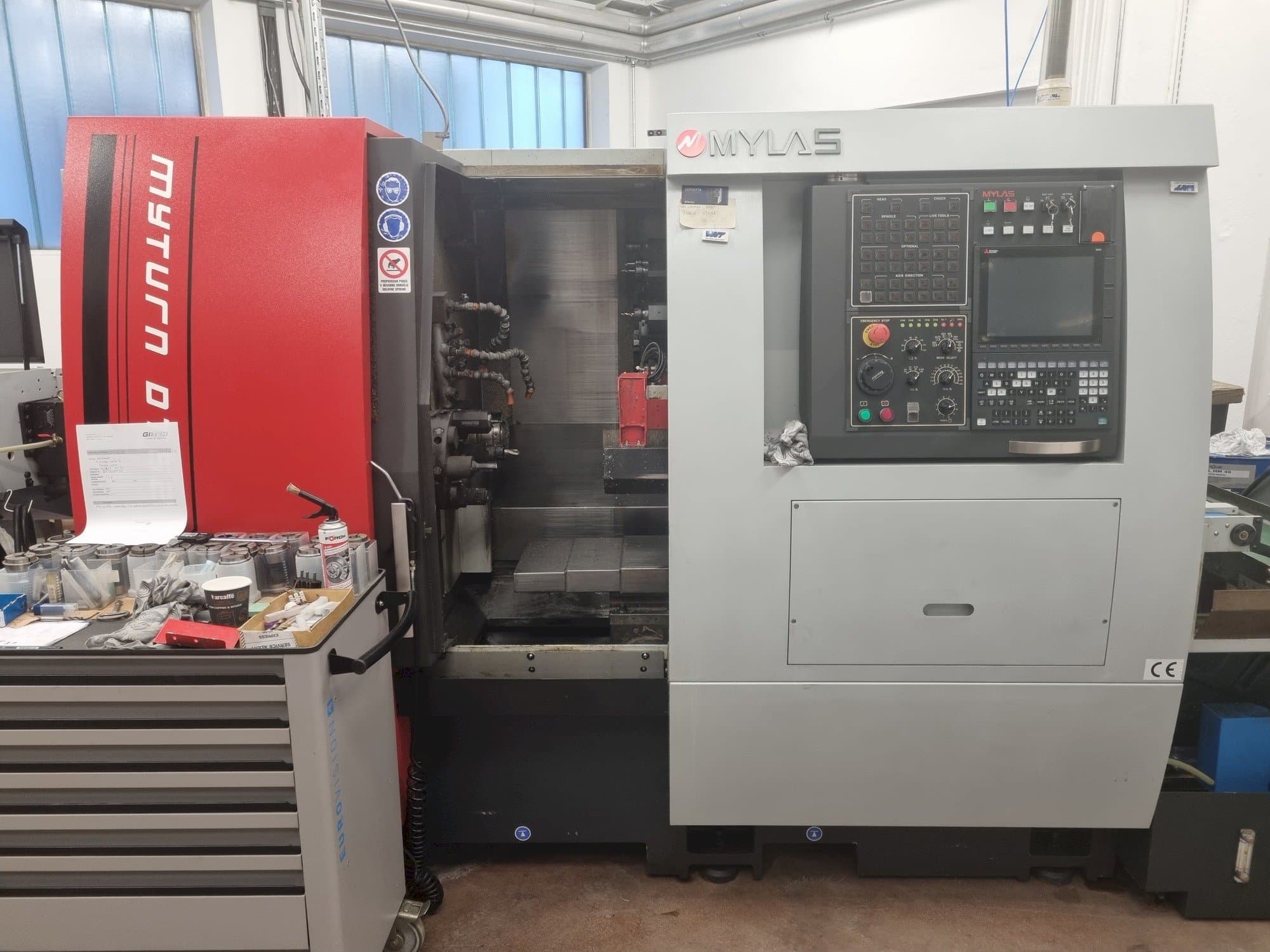

This MYLAS DT52 Lathe was manufactured in the year 2018 in Taiwan. It is equipped with a Mitsubishi M80 control unit. The machine has a spindle speed of 6000 rpm.
Overview
- brand: MYLAS
- year: 2018
- MODEL: DT52
- application type: Turning
- Location: Slovenia
- machine type: Horizontal Turning Machine
- control unit brand: MITSUBISHI
Technical Information - MYLAS DT52
Control Unit
- Control Brand: MITSUBISHI
- Control Model: M80
Movement
- X-axis Travel: 175 mm
- Y-axis Travel: 450 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- X1os servo motor 1,8kw
- Oil skimmer
- Transporter of pieces
- Carrier of spurs
- Gripping jaw type main spindle 177e
- Fast strokes xl , yin x2 axis 18m/min
- Stations on the revolver (main) 12
- Bmt 45 revolver (standard 1809)
Technical Machine Benefits
- Max. Turning length: 350mm
- Max. Diameter of the scraper from the rod (main): 50mm
- Max. Turning diameter (sub): 32mm
- Zl and z2 axis speeds 24m/min
- Max. St. V1t (main) 50-4500
- Engine power (main) 7,5/llkw
- Clamping for external turning (main) 20x20mm
- Max. Drilling diameter on revolver (main/sub) 13mm
- Revolver motor power (main) 2,2/3,7 kw
- Max. Threaded drill bit size (main/sub) m8
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
