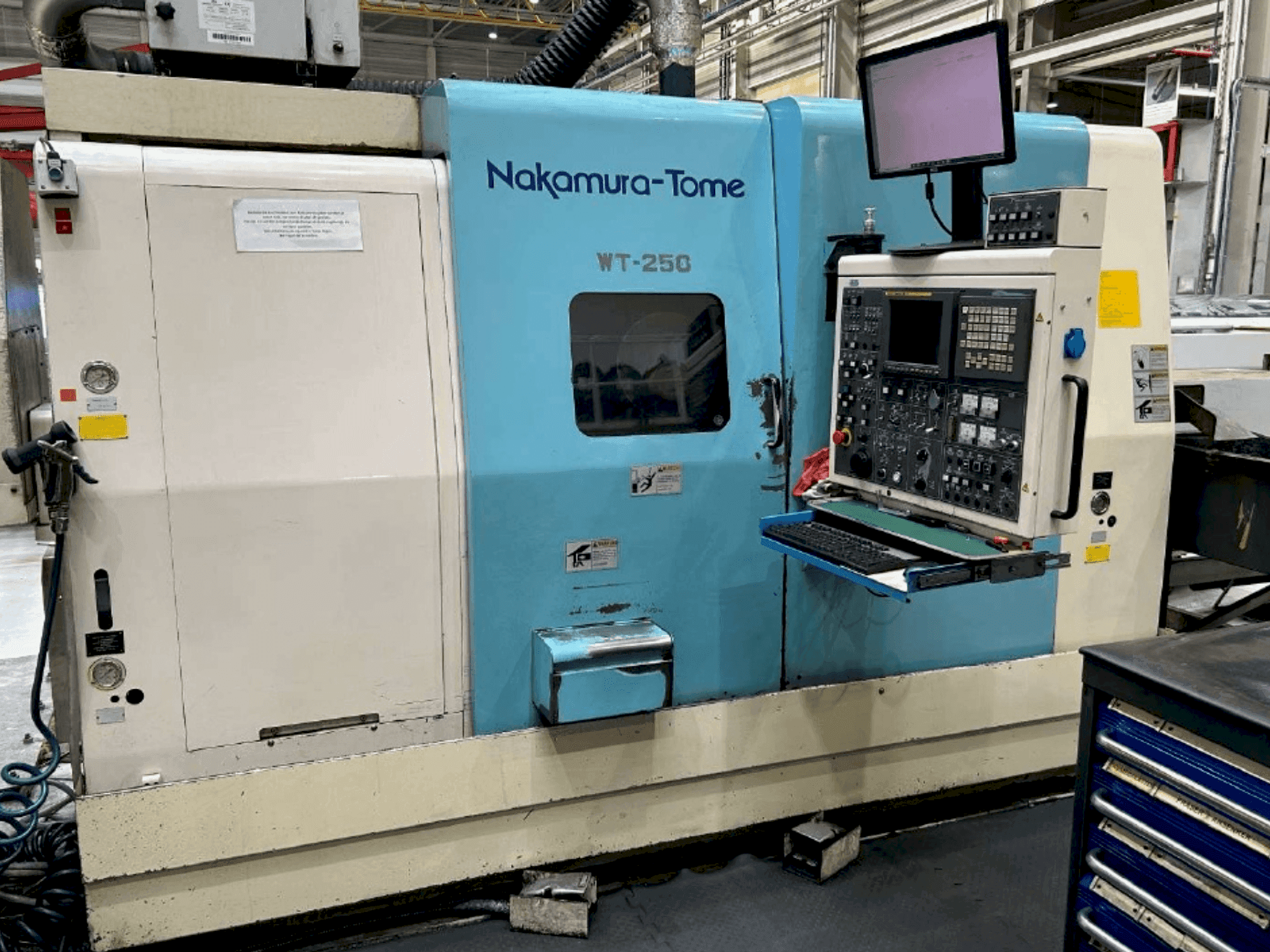

NAKAMURA TOME WT 250 (1999) Lathe

Show in original language

This NAKAMURA TOME WT 250 Lathe machine was manufactured in the year 1999. It is equipped with a FANUC Series 18i-T Control Unit. Drilling and milling work possible over the entire circumference with one clamping. The tools and holders for driven tools are not included in the scope of delivery.

Overview

brand: NAKAMURA-TOME
year: 1999
MODEL: WT 250
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: FANUC

Technical Information - NAKAMURA-TOME WT 250

General Data

Measurements width: 3500 mm
Measurements depth: 3000 MM
Measurements height: 2200 MM
Machine weight: 6500 kg

Control Unit

Model: Series 18i - T
Brand: FANUC

Main drive

Number of axis: 8

Turret

Number of turrets: 2
Number of tool slots: 24

Media

Chip conveyor: Yes

Additional Equipment

- Tool holders on both turrets are VDI25
- Barfeeder from pictures included // Dimensions of bar feeder: ~7m x 2.1m x 2.5m; 1.5t
- Y axis on the upper turret.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Loading length 6000 mm
- - Max. Finished part length 2500 mm
- - Max. Diameter 20-55 mm in steps of 5
- - High quantities, shaft machining on both sides with one clamping
- - 8-axis; all material and surface qualities; 24 tools on 2 turrets
- - Drilling and milling work possible over the entire circumference with one clamping
Qualitative Machine Benefits:
- - Condition: good, used

Extra information

- Tools and holders for driven tools not included in the scope of delivery

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
