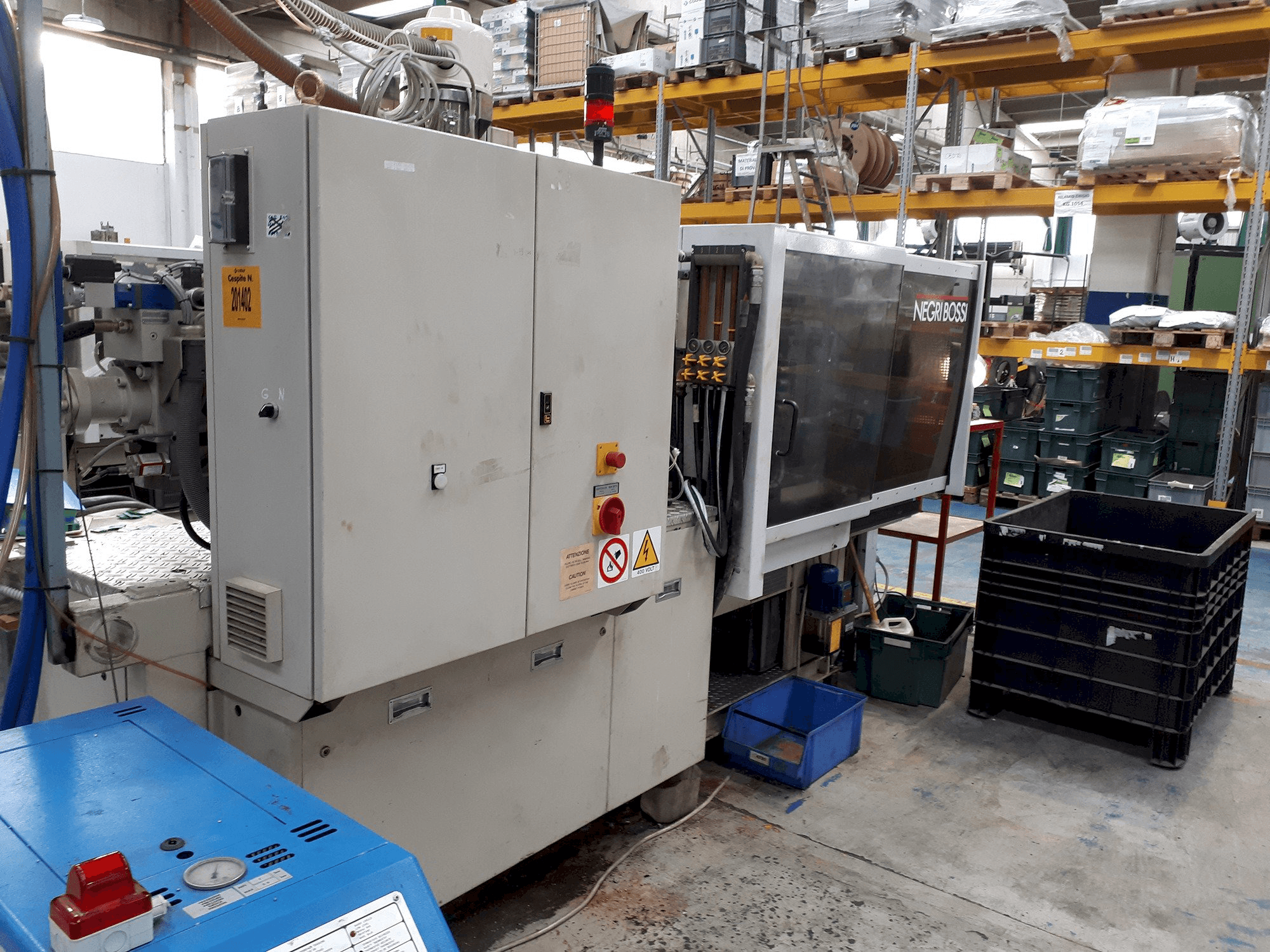

Negri Bossi V 70-200 Injection Moulding Machine

Show in original language

This Negri Bossi V 70-200 Injection Moulding Machine was made in Italy in 2001 and counts with approximately 48000 production hours. Operated through a DML 2 Control unit, this machine is capable of working with a clamping force of 700 kN.

Overview

brand: Negri Bossi
year: 2001
MODEL: V 70-200
production hours: 48000
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Negri Bossi V 70-200

General Data

Measurements width: 4065 mm
Measurements depth: 1250 mm
Measurements height: 1890 mm
Machine weight: 2450 kg

Injection Unit

Screw diameter: 32 mm
Shot weight: 109 g/PS
Stroke volume: 120 cm³
Injection pressure: 1700 bar
Plasticizing rate max.: 15 g/PS
Screw speed: 320 rpm
Heating capacity: 6 kW
Adjustable heating zones: 3
Nozzle pressure: 23 kN

Clamping unit

Clamping force: 700 kN
Opening stroke: 310 mm
Distance between bars: 360X315 mm
Mould height min: 120 mm
Mould height max: 400 mm
Size of mold platens: 530X495 mm
Ejector stroke: 100 mm
Ejector force for / back: 35 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
