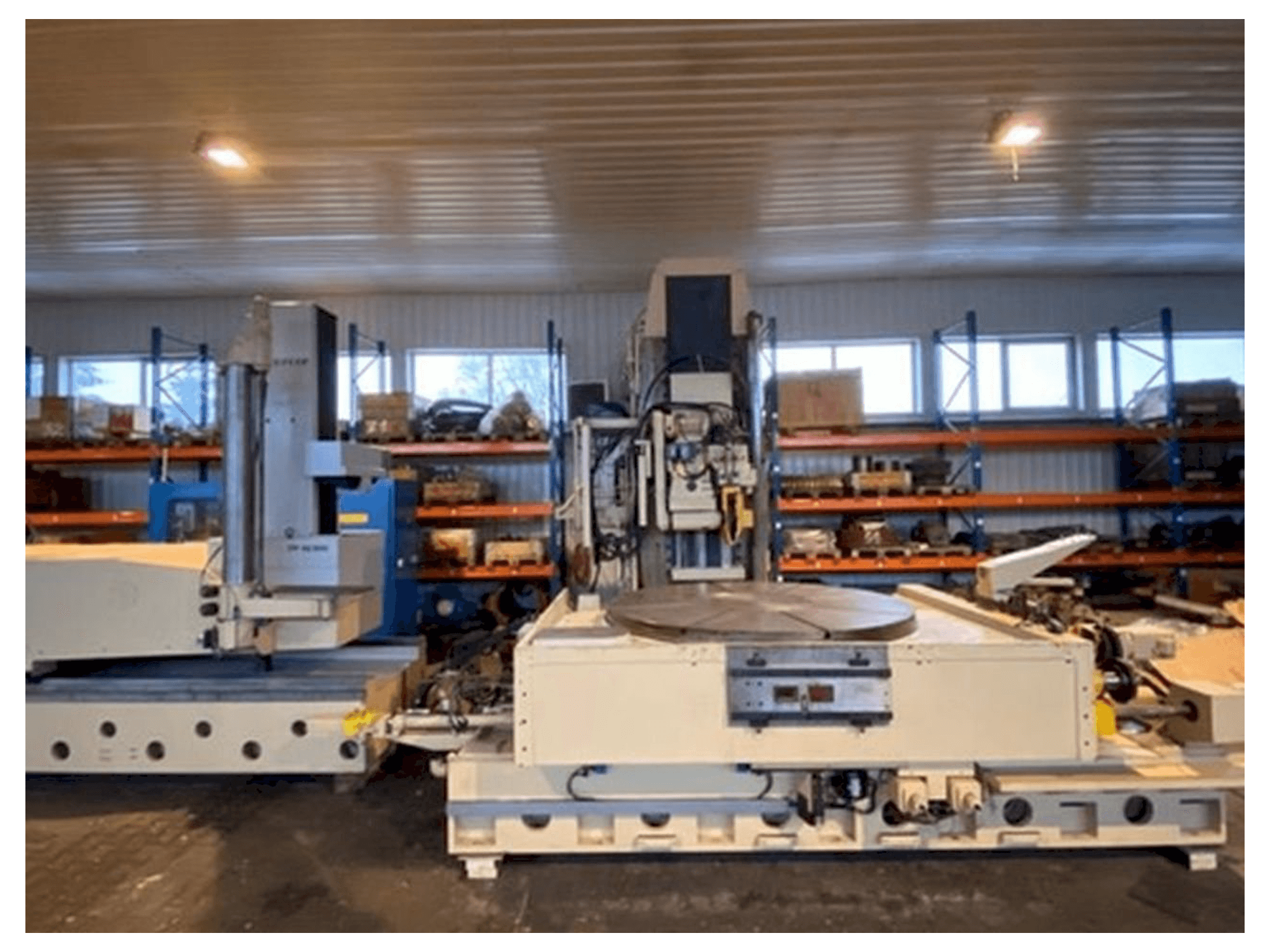

Front view of NILES ZSTZ 35 machine
Front view of NILES ZSTZ 35 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

NILES - ZSTZ 35PL-GRI-NIL-1994-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This NILES ZSTZ 35 Grinding Machine was built in Germany in the year 1994 and mechanically renovated in 2005. It is equipped with a HEIDENHAIN control unit. This machine can operate with a grinding spindle speed range 120 - 6300 rpm. It includes an air conditioned cabinet, a geometric control center HOFLER TPF 40/1000 for certifications and a mechanical rolling with sets of gears. This machine is working and from the beginning of April 2021 is ready for tests.

Overview

  • brand: NILES
  • year: 1994
  • MODEL: ZSTZ 35
  • application type: Grinding
  • Location: Poland
  • machine type: Cylindrical Grinding Machine
  • control unit brand: HEIDENHAIN

Technical Information - NILES ZSTZ 35

Control Unit

  • Control Brand: HEIDENHAIN

Dimensions

  • Machine Depth: 7600 mm
  • Machine Height: 4500 mm
  • Machine Weight: 57300 kg

Additional Information

Additional equipment

  • air conditioned cabinet
  • Geometric control center: HOFLER TPF 40/1000 for certifications
  • Mechanical rolling with sets of gears

Machine Benefits

Qualitative Machine Benefits

  • The machine was mechanically renovated in 2005.
  • The machine is working and from the beginning of april 2021 ready for tests

Technical Machine Benefits

  • Max wheel diameter: 3. 500 mm
  • Gear width: 710 mm
  • Max module: 34 / min module: 4
  • Min root circle dia. : 350 mm
  • Number of teeth: 16-600
  • Max. Helix angle: 35 deg
  • Table diameter: 2000 mm / table bore diameter: 450 mm
  • Max. Ram stroke: 250 mm / min. Ram stroke: 100 mm / ram strokes: 20-120 hub/min
  • Grinding wheel diameter: 300-400 mm / grinding spindle speed: 120 - 6300 u/min
  • Max. Width of grinding wheel: 32/40/50 (63) mm / grinding wheel hole diameter: 127

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
