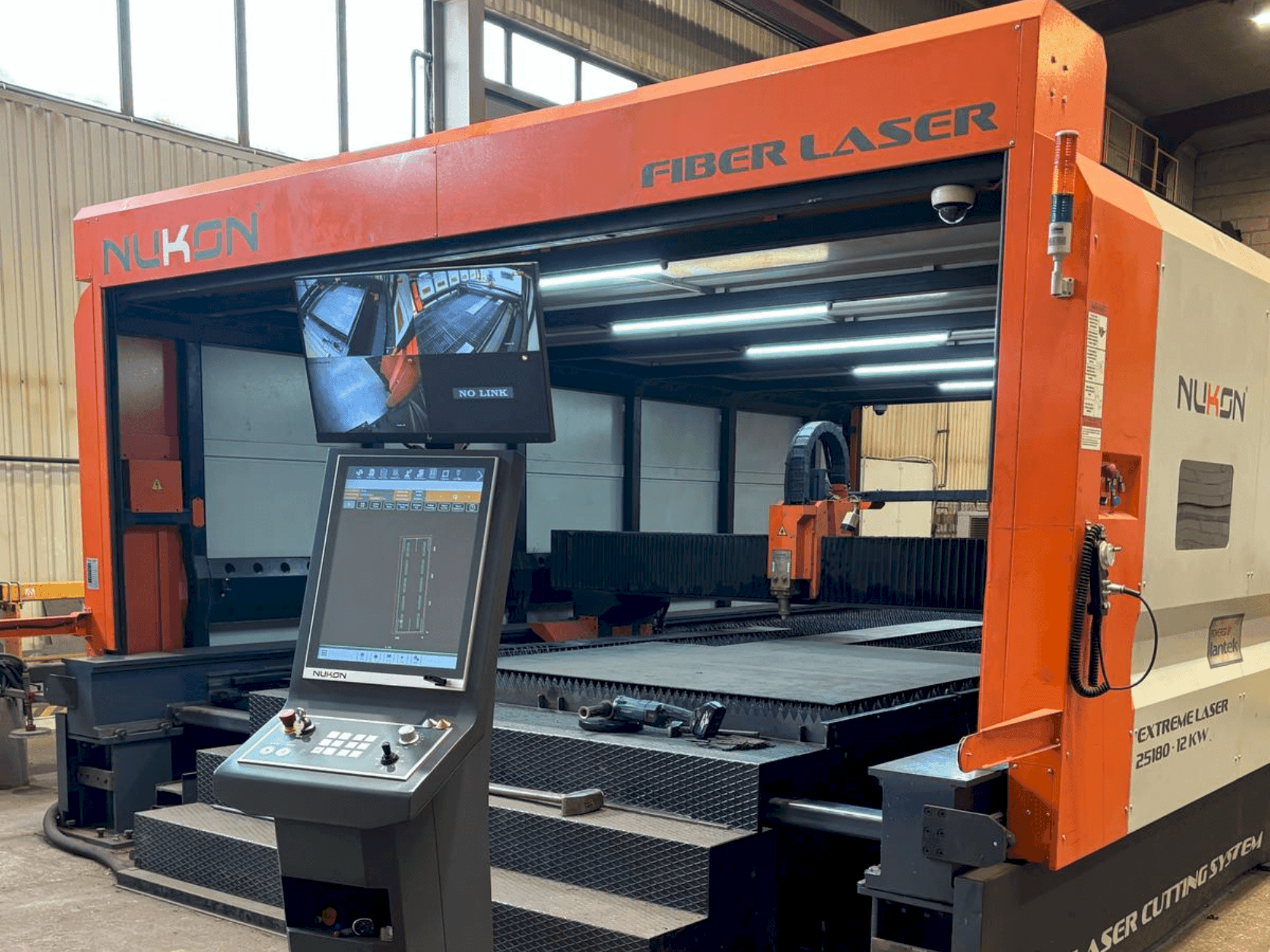

Front view of NUKON Fiber Laser Extreme 30250 machine
Front view of NUKON Fiber Laser Extreme 30250 machine

NUKON - Fiber Laser Extreme 30250DE-CUT-NUK-2021-00001

£ 461,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis NUKON Fiber Laser Extreme 30250 was manufactured in 2021. It features a 12 kW fiber laser, Beckhoff CNC control system, and a maximum sheet size of 2,500 x 12,000 mm. The machine supports speeds up to 50 m/min and includes a servo drive system. Consider the opportunity to buy this NUKON Fiber Laser Extreme 30250 fiber laser cutting machine. Contact us for more information about this machine.

Overview

  • brand: NUKON
  • year: 2021
  • MODEL: Fiber Laser Extreme 30250
  • application type: Cutting
  • Location: Germany
  • machine type: Fiber Laser Cutting Machine
  • control unit brand: BECKHOFF

Technical Information - NUKON Fiber Laser Extreme 30250

General Data

  • Machine weight: 35900 kg

Control Unit

  • Brand: BECKHOFF
  • Model: n/a

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Rapid traverse: 50 m/min
  • Y-AXIS Rapid traverse: 50 m/min
  • Z-AXIS Rapid traverse: 160 mm/min
  • W-Axis Rapid traverse: 50 m/min

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Noise emission: 60 db
      • - Control system: beckhoff cnc
      • - Display: 19" tft standard screen
      • - Control console: all functions can be controlled from the panel
      • - Interface: ethernet
      • - Drive type: servo
      • - Repeatability: ± 0. 35 mm (over 500 mm)
      • - Rotary axis (rotational axis): 160 rpm
      • - Acceleration (x, y, z): 1. 5 g
      • - Positioning accuracy: ± 0. 35 mm (over 500 mm)

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
