➤ Used OMRON LD90 - 2019 - Robot For Sale | gindumac.com

Show in original language

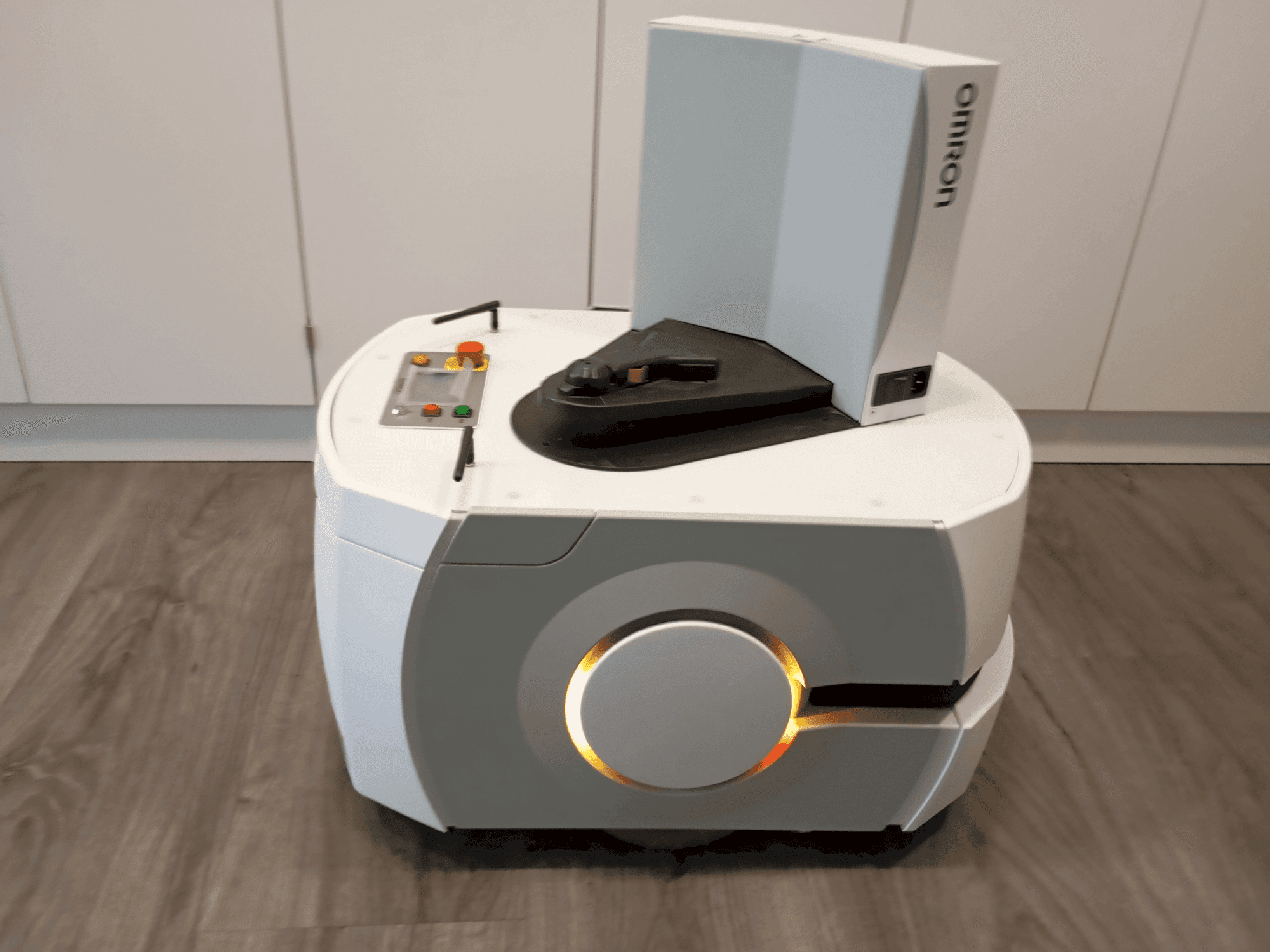

This OMRON LD90 was manufactured in 2019. A collaborative robot designed for versatility and safety in automation tasks. Ideal for businesses aiming to enhance productivity and operational efficiency. Contact us for more information.

Overview

brand: OMRON
year: 2019
MODEL: LD90
application type: Robotics
Location: Germany
machine type: Collaborative Robot

Technical Information - OMRON LD90

General Data

Measurements width: 500 mm
Measurements depth: 698 mm
Measurements height: 383 mm
Machine weight: 62 kg

Main drive

Max payload: 90 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum speed: 1350 mm/s
- - Type: lithium-ion (lifepo4)
- - Duty cycle: 80%
- - Voltage: 22 to 30 vdc (25. 6 vdc nominal)
- - Output current: < 40 a (continuous), 60 a (300 ms), 80 a (8 ms)
- - Capacity: 72 ah nominal
- - Energy: 1. 84 kwh nominal
- - Recharge time: 2 hrs 10 min for 20% to 80% charge
- - Life span: approximately 2000 cycles

Extra information

- Scope of Delivery Mobile Robot Starter Kit Charger Battery Joystick Top Plate Docking Station (Automatic docking procedure) Mobile Planner Tablet Edition App Monitoring and control interface for mobile fleet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
