ONA DB300

Photo Gallery

ONA - DB300DE-EDM-ONA-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
ONA D830 erosion machine

Show in original language

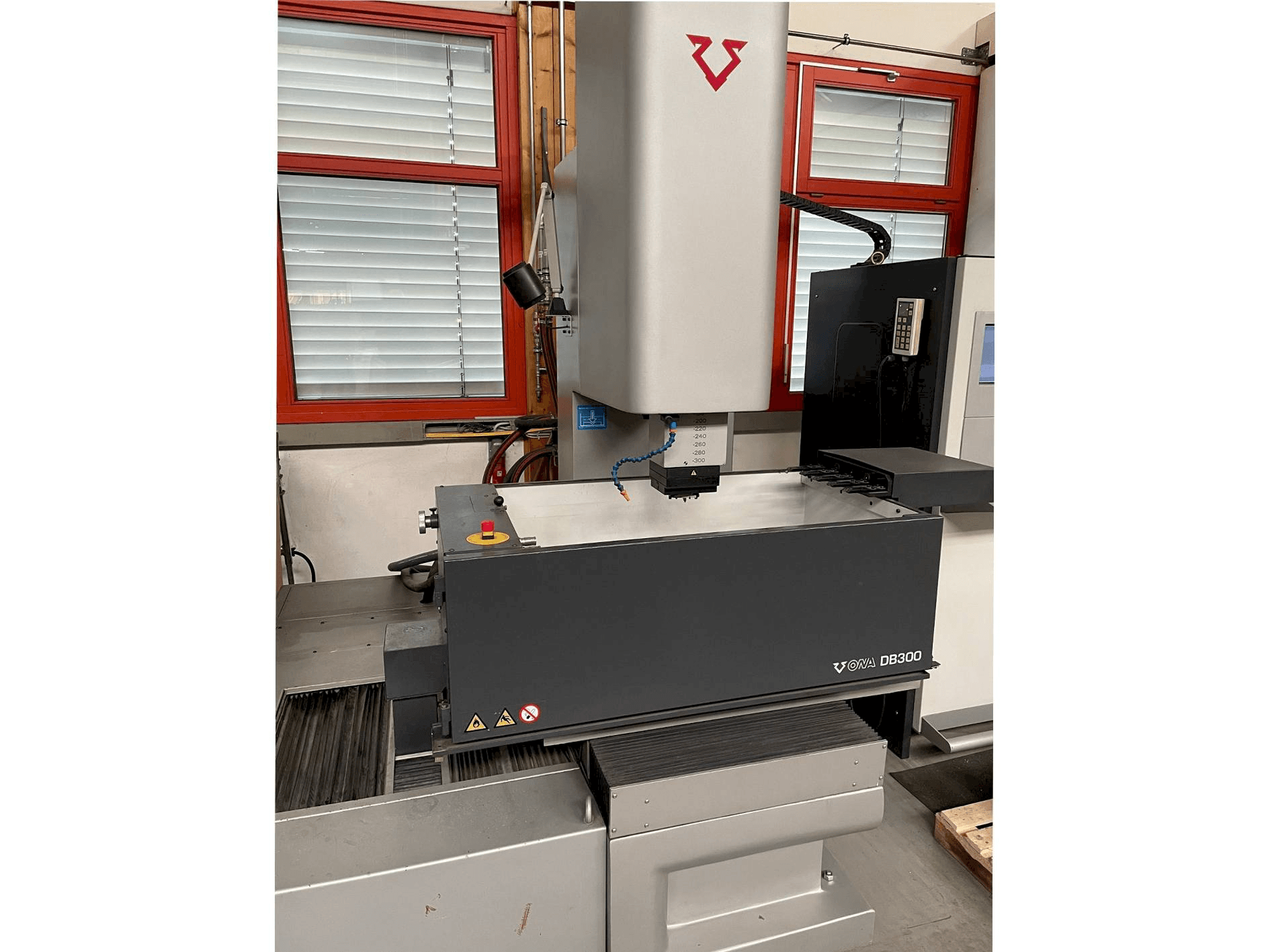

This ONA DB300 erosion machine was manufactured in 2005 in Spain. It is operated through a control unit of the same brand. This 2 axis machine has been working for 3200 hours. It can work with a workpiece weight of 750 kg and a workpiece height of 265 mm. Includes an electrode holder travel of 300 mm.

Overview

brand: ONA
year: 2005
MODEL: DB300
production hours: 3200
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold

Technical Information - ONA DB300

General Data

Measurements height: 2500 mm
Machine weight: 1700 kg

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 650 mm
Outer width: 400 mm
Height adjustment: 265 mm

Additional Equipment

- Programmable C-axis
- 3 pressure and 1 suction flushing
- Internal flushing by C-axis
- Manual remote control
- 5-fold electrode changer
- Special program for deep slots
- Special program for sprue tunnel
- Automatic wear compensation
- Generator with VDI 0 stage for polishing
- EROWA chuck for electrodes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electrode holder travel 300 mm
- - Maximun electrode weight 100 kg
- - Maximun static electrode weight on c-axis 50 kg
- - Maximun electrode weight on c-axis dynamic 12 kg
- - Maximun distance between electrode holder and table without c-axis/with c-axis 550/470 mm
- - Dimensions of the working container 1000x600x350 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
