OPS INGERSOLL - Speed Hawk 550GB-MIL-OPS-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

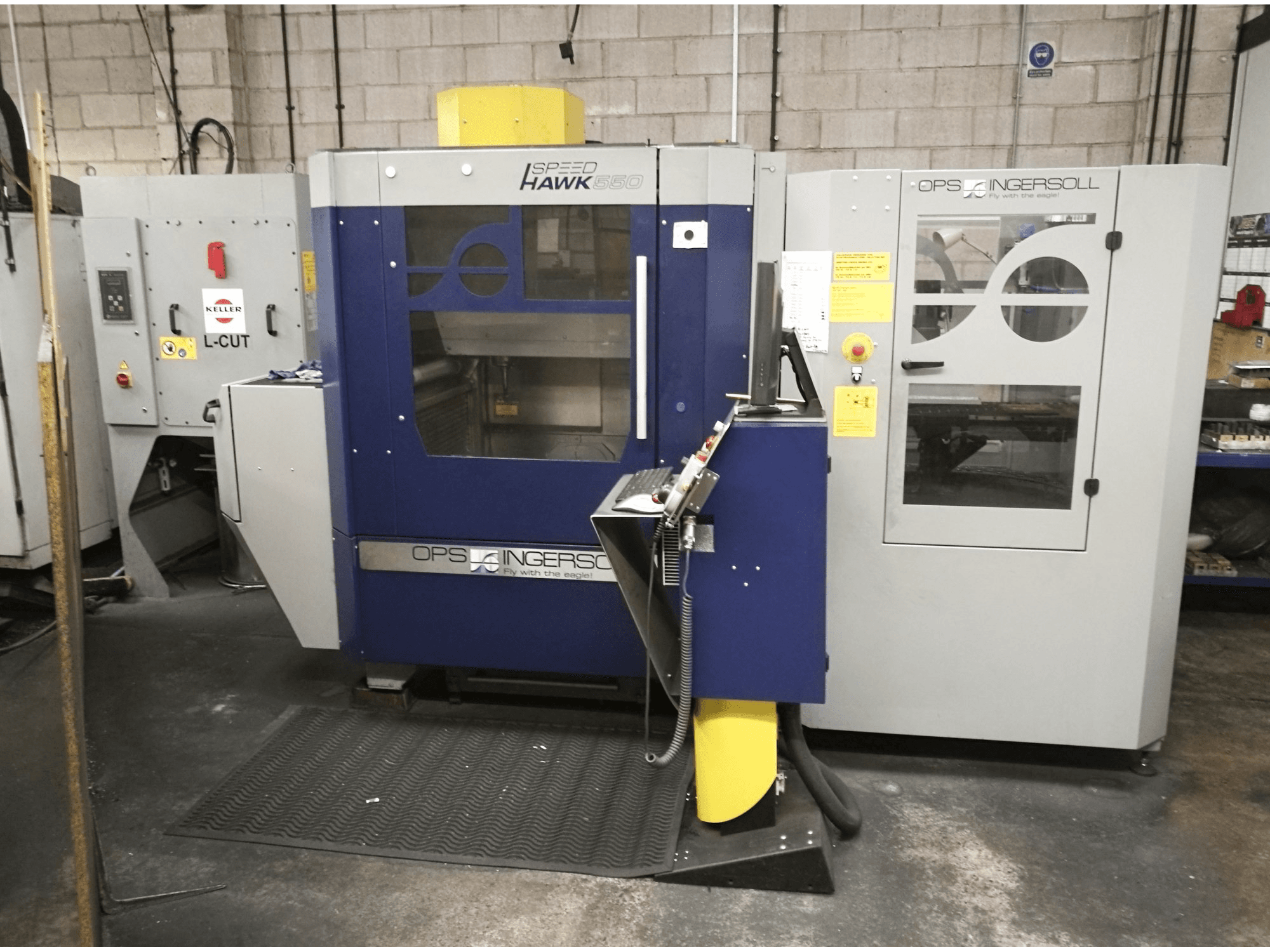

OPS-INGERSOLL Speed Hawk 550 5-Axis Machining Center

Show in original language

This OPS-INGERSOLL Speed Hawk 550 5-Axis Machining Center from 2013 is operated through a OPS-INGERSOLL Andron 3060 Control unit. Especially fit for milling EDM electrodes, the equipment stands out for its high spindle speed range, of up to 42000 rpm. The OPS-INGERSOLL “MultiChange easy” handling system is included as additional equipment.

Overview

brand: OPS INGERSOLL
year: 2013
MODEL: Speed Hawk 550
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold

Technical Information - OPS INGERSOLL Speed Hawk 550

General Data

Measurements width: 3300 mm
Measurements depth: 2750 mm
Measurements height: 2350 mm
Machine weight: 7400 kg

Main drive

Spindle speed range: 1-42000 1/min
Spindle motor power: 15 kW
Tool taper: HSK-E40

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 650 mm
Outer width: 550 mm
TSlots size: 5x14H12 mm
Number of tslots: 5

Tools

Slots in storage: 32
Max tool length: 160 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 38 kW
Air pressure: 4 bar

Additional Equipment

- OPS INGERSOLL Handlingsystem MultiChange easy

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
