➤ Used Optimum D 560x3000 For Sale | gindumac.com

Show in original language

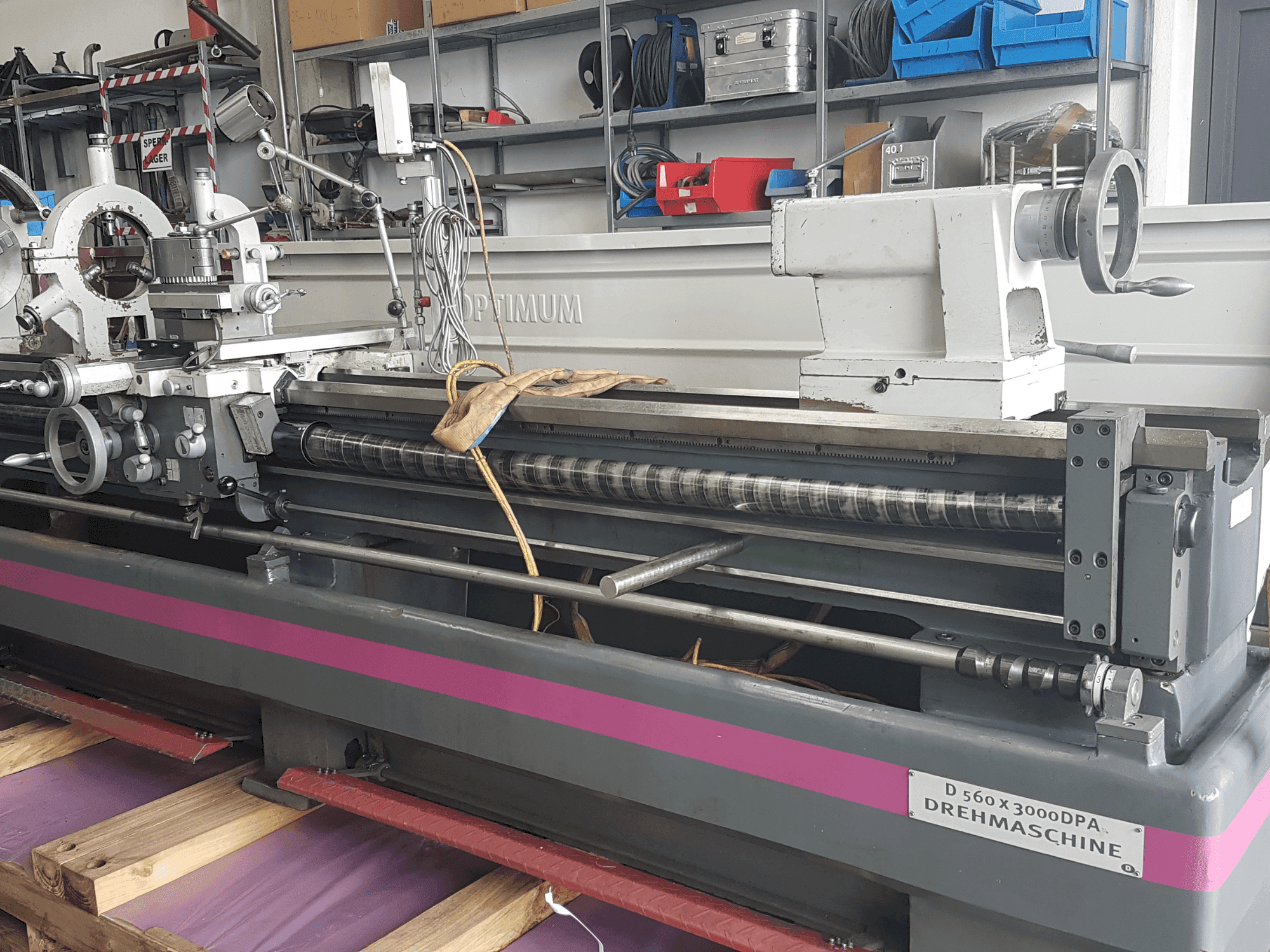

This Optimum D 560x3000 was manufactured in 2011. It features a spindle bore of 80 mm, a swing diameter over bed of 560 mm, and a maximum workpiece weight of 600 kg. The machine offers a spindle speed up to 1600 rpm and includes a coolant pump. Ideal for precision turning operations. Contact us for more information.

Overview

brand: Optimum
year: 2011
MODEL: D 560x3000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Optimum D 560x3000

General Data

Measurements width: 1120 mm
Measurements depth: 4400 mm
Measurements height: 1430 mm
Machine weight: 3920 kg

Main drive

Spindle speed range: 1600 1/MIN
Spindle bore: 80 mm
Tool taper: MT 7

Workpiece

Workpiece drm over bed: 560 mm
Workpiece drm over support: 350 mm
Workpiece weight: 600 kg

Tail Stock

Pinol diameter: 75 mm
Pinol tool taper: MK 5

Additional Information

Additional equipment

Lead Screw Thread Pitch: 6mm
Longitudinal Feed [mm/rev] in the Range: 0.059 - 1.646
Cross Feed [mm/rev] in the Range: 0.020 - 0.573
Metric Pitch [mm/rev] in the Range: 0.2 - 14
Inch Pitch [Threads/Inch] in the Range: 112 - 2
Modular Threads in the Range: 0.1 - 7
Diametrical Threads (ISO 678) in the Range: 4 - 112

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
