➤ Used ORMA NPC/L DIGIT30/13AF-BO For Sale | gindumac.com

Show in original language

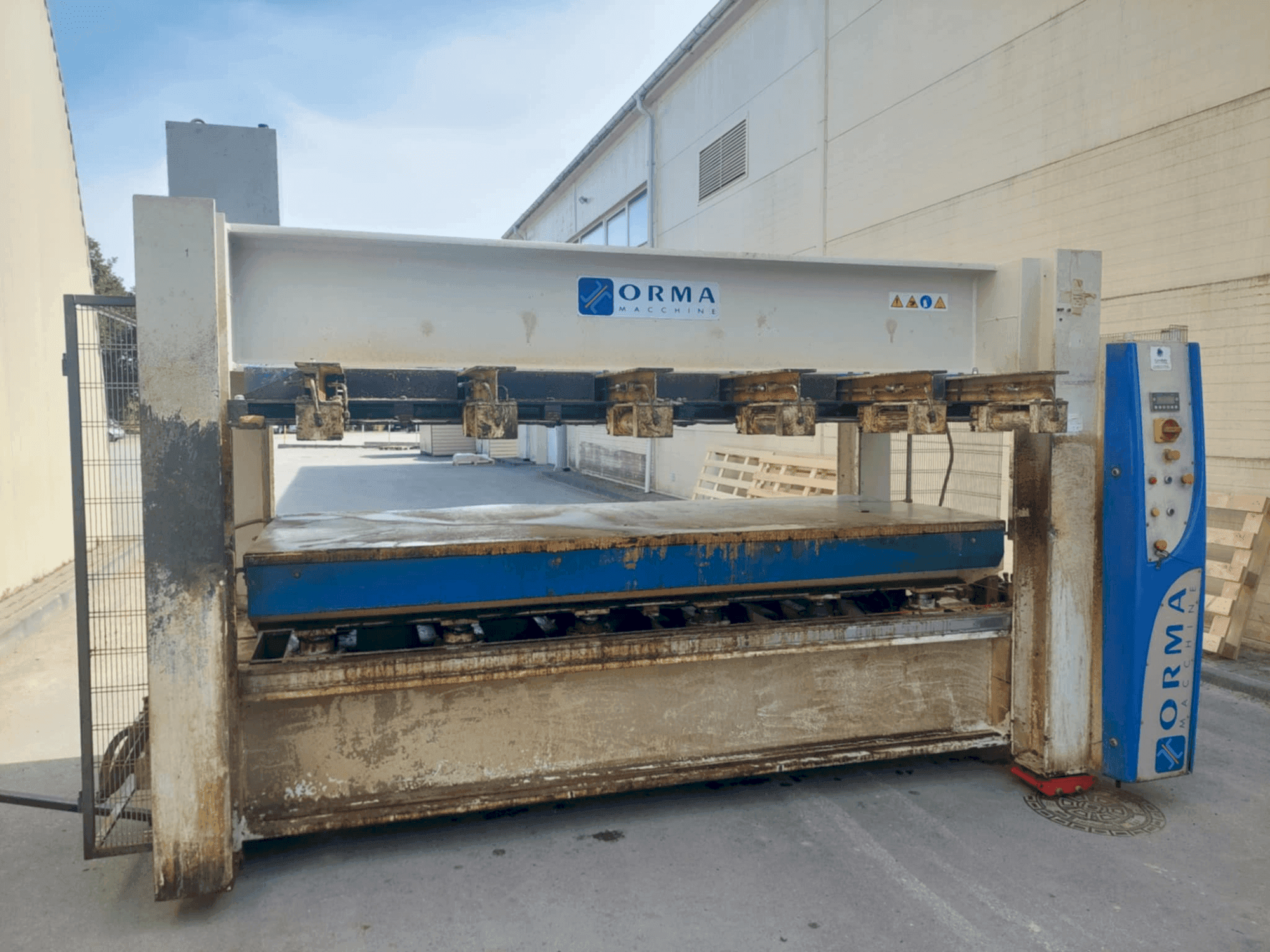

This ORMA NPC/L DIGIT30/13AF-BO was manufactured in 2007. A robust laminating press with a vertical total thrust of 240 tons and platens dimensions of 3000 × 1300 mm. It operates at a temperature of up to 130 °C and features a hydraulic power pack of 4 kW. Consider the opportunity to buy this ORMA NPC/L DIGIT30/13AF-BO laminating press. Contact us for more information about this machine.

Overview

brand: ORMA
year: 2007
MODEL: NPC/L DIGIT30/13AF-BO
application type: Pressing / Laminating
Location: Lithuania
machine type: Laminating Press

Technical Information - ORMA NPC/L DIGIT30/13AF-BO

General Data

Measurements width: 1650 mm
Measurements depth: 3600 mm
Measurements height: 1800 mm
Machine weight: 9000 kg

Main drive

Spindle motor power: 33600 W

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Voltage: 400 v / 3-phase / 50 hz
- - Vertical total thrust: 240 tons
- - Vertical specific pressure: 615 kg/cm²
- - Vertical platens dimensions: 3000 × 1300 mm
- - Vertical cylinders: 12 pcs // vertical cylinders diameter: Ø 85 mm
- - Horizontal total thrust: 30 tons
- - Horizontal cylinders: 6 pcs // horizontal cylinders diameter: Ø 65/40 mm
- - Operating temperature: 130 °c
- - Hydraulic power pack: 4 kw
- - Thermal power of electric boiler: 18 kw

Extra information

- General Data Condition: Used Status: Working (some oil leaks through vertical cylinders, does not interfere with operation)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
