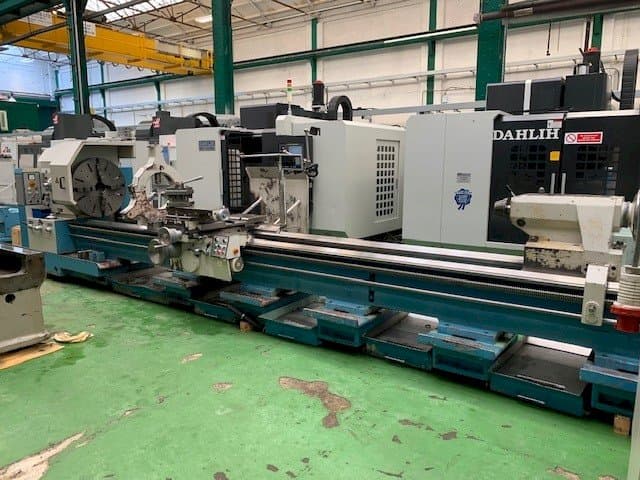

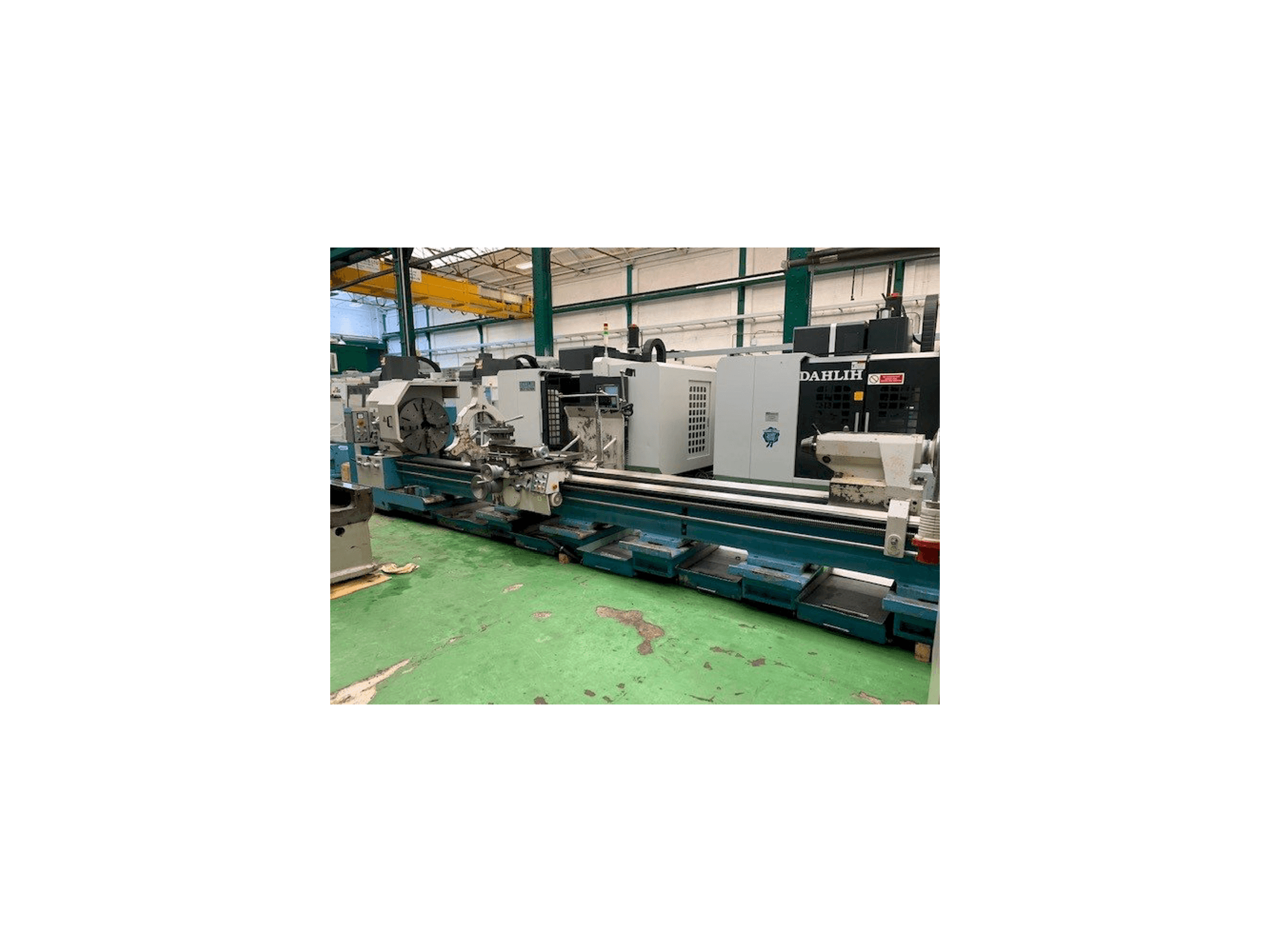

Front view of Poreba TPK 80x5000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Poreba TPK 80x5000

Photo Gallery

Poreba - TPK 80x5000GB-TUR-POR-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Poreba TPK 80x5000 Lathe

Show in original language

This Poreba TPK 80x5000 Lathe was built in 1979 but completely reconditioned in 2014. This machine can perform with a spindle speed up to 630 rpm.

Overview

brand: Poreba
year: 2014
MODEL: TPK 80x5000
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine

Technical Information - Poreba TPK 80x5000

General Data

Measurements width: 7500 mm
Measurements depth: 1750 mm
Measurements height: 1370 mm
Machine weight: 10000 kg

Main drive

Number of spindles: 1
Spindle speed range: 630 1/MIN
Spindle motor power: 15/22 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 800 mm
- - Swing over cross slide 530 mm
- - Distance between centres 5000 mm
- - Spindle bore 95 mm
- - Tailstock quill diameter 130 mm
- - Max. Workpiece weight clamped between centres with 2 x steady = 9000 kgs
- - Maximum weight in chuck without tailstock or steady 600 kgs
- - 760mm diameter 4 jaw chuck
- - Newall b60 digital readout
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
