POSmill - 1100DE-MIL-POS-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- POS POSmill 1100 Vertical Machining Center

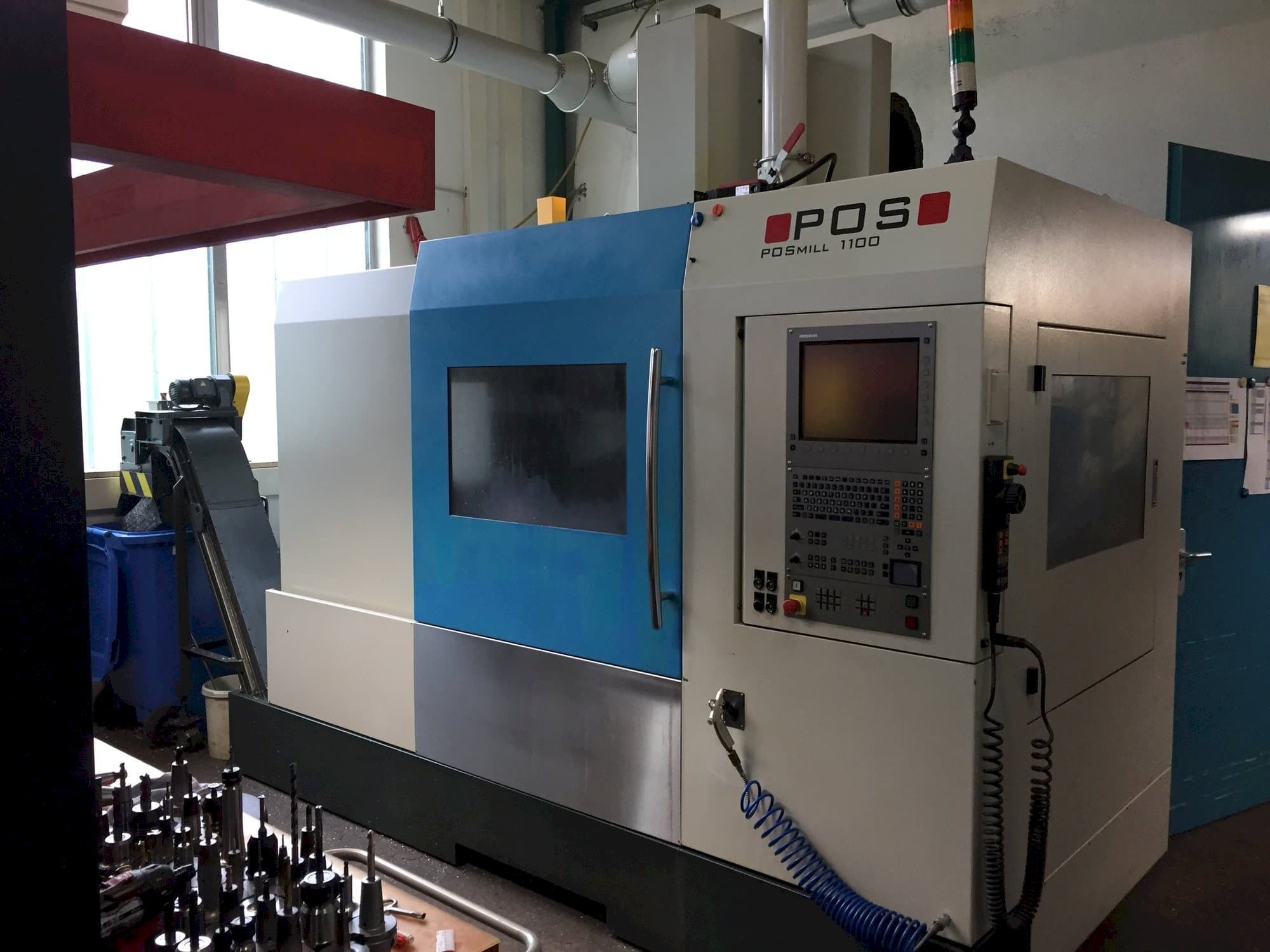

This POSmill 1100 Vertical Machining Center was manufactured in the year 2009 in Germany. It is operated through a Heidenhein iTNC 530 control unit and has been working for 14800 hours. This 3 axis machine counts with a spindle speed up to 15000 rpm. Includes a linear measuring system X,Y,Z and a Tool changer TC40.
Overview
- brand: POSmill
- year: 2009
- MODEL: 1100
- production hours: 14800
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill 1100
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 8500 kg
- Table Length: 1300 mm
- Table Load: 1000 kg
- Table Width: 600 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 25 kW
- Spindle Speed: 15000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Tool changer TC40
- Protective cabin
- Plexiglass Hinged belt
Machine Benefits
Technical Machine Benefits
- Linear measuring system x,y,z
- Inner coolant supply 20 bar with belt filter unit
- Slat band tension device
- Washdown device
- Water pistol
- Operation of wzw door locking system
- Tool change guard
- Coolant separator , mechanical
- Operation of wzw door locking system
- Workpiece measuring system 25 hdr
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
