- Quick-Tech I-60U Lathe

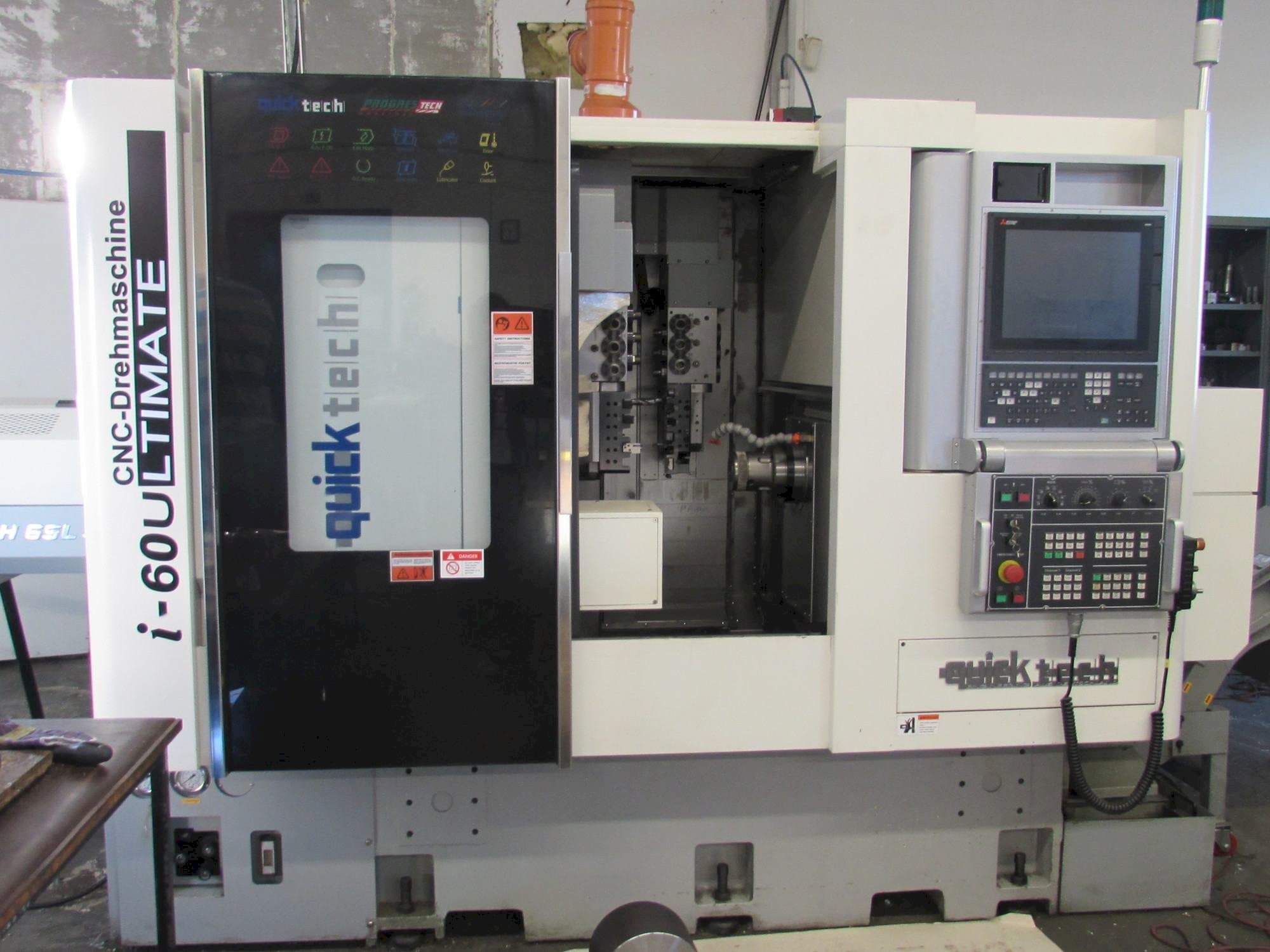

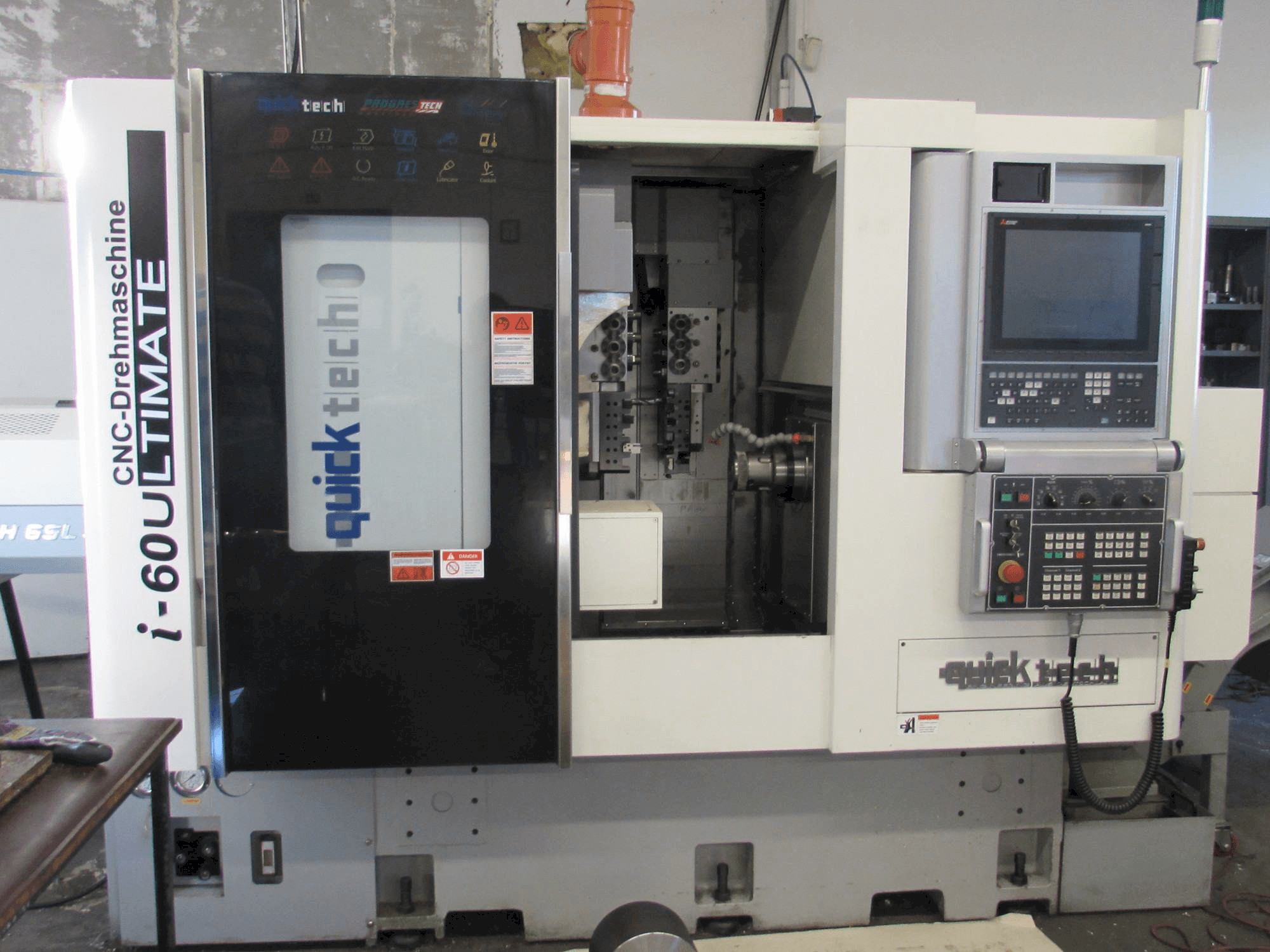

This Quick-Tech I-60U Lathe was built in 2017 in Taiwan. It has been operative for only 2346 hours. It is operated through a Mitsubishi M800 control unit. This machine incorporates 2 spindles and can operate with a spindle speed up to 5000 rpm. It includes a bar feeder Fedek DH65L (1,5 m) and an automatic lubrication.
Overview
- brand: Quick-Tech
- year: 2017
- MODEL: I-60U
- production hours: 2346
- application type: Turning
- Location: Czech Republic
- machine type: Swiss Type Turning Machine
- control unit brand: MITSUBISHI
Technical Information - Quick-Tech I-60U
Control Unit
- Control Brand: MITSUBISHI
- Control Model: M800
Dimensions
- Machine Depth: 1900 mm
- Machine Height: 1900 mm
- Machine Weight: 5800 kg
Movement
- X-axis Travel: 150 mm
- Y-axis Travel: 385 mm
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Automatic lubrication
- Machine like new
Technical Machine Benefits
- Bar feeder fedek dh65l (1,5 m)
- Set of tool holders (upon request)
- Main spindle (a2-6) max. Turning length 250 mm
- Main spindle power 11 kw, 5000 rpm, bore 62 mm, bar diameter 60 mm
- Subspindle (a2-6) max. Turning length 100 mm
- Subspindle power 5. 5 kw, 4000 rpm, bar diameter 42 mm
- X1, y1, z1 stroke: 450, 400, 300 mm
- Main tool head 6 outer, 5 inner positions (20 x 20 mm clamping), live tools 6 (3 radial, 3 axial)
- 2nd tool head 5 outer, 9 inner positions (20 x 20 mm clamping), live tools 6 (3 radial, 3 axial)
- C axis 0. 001 degrees (main spindle, subspindle)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
