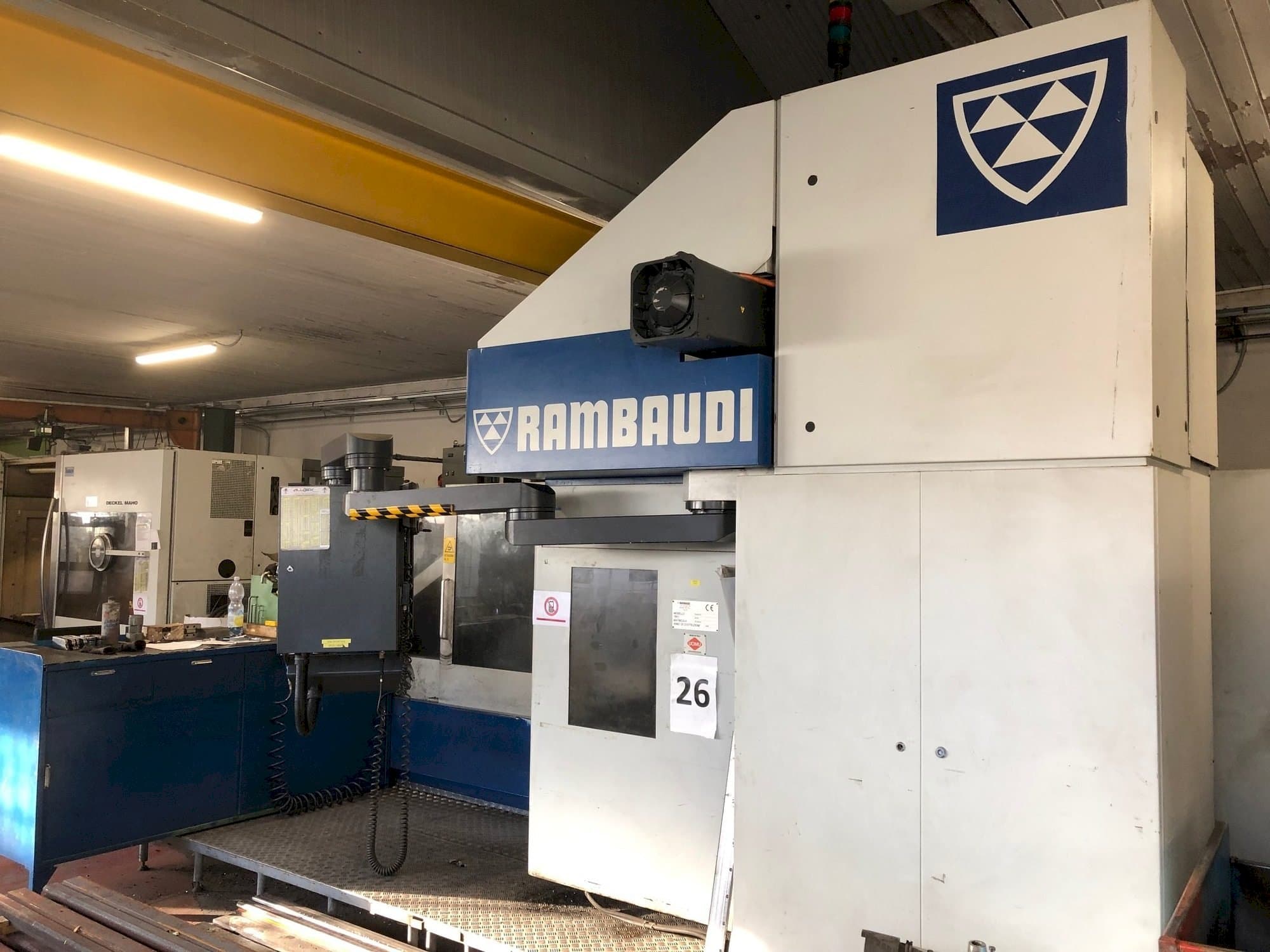

Front view of Rambaudi Ramfast RF105 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Rambaudi Ramfast RF105

Photo Gallery

Rambaudi - Ramfast RF105IT-MIL-RAM-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Rambaudi Ramfast RF105 Milling machine

Show in original language

This Rambaudi Ramfast RF105 Milling machine was manufactured in the year 2005. It is equipped with a FIDIA C10-S control unit and has 5 axis. The machine has a spindle speed of 28-24000 rpm.

Overview

brand: Rambaudi
year: 2005
MODEL: Ramfast RF105
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FIDIA

Technical Information - Rambaudi Ramfast RF105

General Data

Measurements width: 5300 mm
Measurements depth: 7000 mm
Measurements height: 4300 mm
Machine weight: 26000 Kg

Control Unit

Model: C10-S
Brand: FIDIA

Main drive

Spindle speed range: 28-24000 1/MIN
Spindle motor power: 28 kW
Number of axis: 5

Movement

X-AXIS Movement: 1600 mm
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 900 mm
Z-AXIS Rapid traverse: 45 m/min

Table

Outer length: 1200 mm
Outer width: 1200 mm

Tools

Slots in storage: 24
Max weight: 10 Kg
Max tool diameter: 105 mm
Max tool length: 250 mm
Type of tool holder: HSK63 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity: 1600x2000+500x900 mm
- - Transversal (y): 2000+500atc mm
- - Table rotation (b): 360000°
- - Head swing (a): +/- 105°
- - Cylinder swing capacity: 1200 mm
- - Torque: (s1) 90nm
- - Cone: hsk63a
- - Atc extension
- - Resolution (b-axis): 0. 001°, axis acceleration 4. 5m/s2
- - Table: range: approx. 3000 kgs
Qualitative Machine Benefits:
- - Independent air/oil lubrication, 24. 000 rpm electrospindle
- - Supplied accessories: second electrospindle 24,000 rpm electrical cabinet conditioner, remote handwheel, triple chip conveyor (2 longitudinal + 1 transversal collection)
- - Use and maintenance books: yes, wiring diagrams: yes, ce certification: yes, fairing: integral smoke extractor: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
