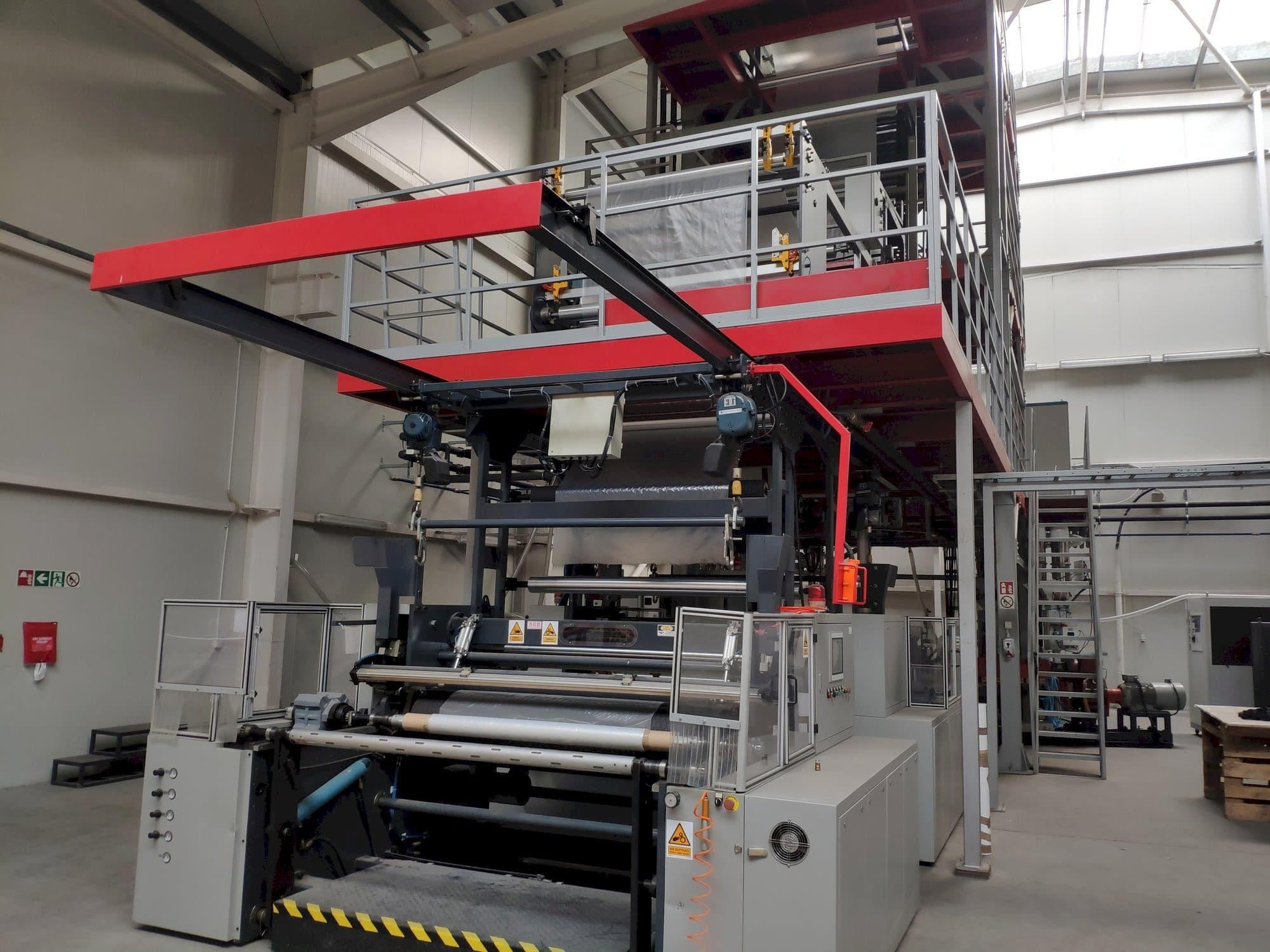

Front view of ROLBATCH 1600  machine

Thank you for your visit

This machine was recently sold.

ROLBATCH - 1600PL-EXT-ROL-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ROLBATCH 1600 Film Extrusion Machine was made in Germany in the year 2015. It is equipped with a B&R control unit. It incorporates 5 layers and can operate with a film extraction and rotation system 360°. It includes several additional equipments.

Overview

  • brand: ROLBATCH
  • year: 1994
  • MODEL: 1600
  • application type: Extrusion
  • Location: Poland
  • machine type: Film Extruder

Technical Information - ROLBATCH 1600

General Data

  • Measurements width: 16000 mm
  • Measurements depth: 8300 mm
  • Measurements height: 10500 mm
  • Machine weight: 38000 kg

Media

  • Main electronic connection: 380V / 50 Hz
  • Power consumption: 486 kW

    Additional Equipment

    • - Single-screw extruders 80 mm, L / D = 30: 1, 75 kW with inverter, - layers A and E, Maximum extruder output for LDPE processing: 170 kg / h - 2 pieces
    • - Single-screw extruders 50 mm, L / D = 30: 1, 22 kW with inverter, - layers B and D Maximum extruder output for LDPE processing: 40 kg / hour - 2 pieces
    • - Single-screw extruder 60 mm, L / D = 30: 1, 37 kW z - layer C. Maximum extruder output for LDPE processing: 90 kg / hour - 1 piece
    • - Manual screen changers for extruders A, B, C, D, E - 5 sets
    • - Head for 5-layer co-extrusion film - 1 piece
    • - The cooling system of the interior of the balloon "IBC" - 1 piece
    • - Automatic foil thickness measurement and control system: automatic air ring, automatic film thickness measuring system (PlastControl), automatic film thickness control system 1 set
    • - Calibration basket - 1 set
    • - Closing frame - 1 set
    • - Film extraction and rotation system 360 ° - 1 set
    • - Second water-cooled extraction - 1 set
    • - Tower - 1 set
    • - III-1700 automatic double winder 3rd generation - 1 set
    • - Central computer controlling the work of the line - 1 set
    • - Gravimetric feed system for the Irish brand TSM: 3 extruders x 4 components, 2 extruders for 1 component – 1 set
    • - Air compressor - cooperating with 2 lines - 1 piece
