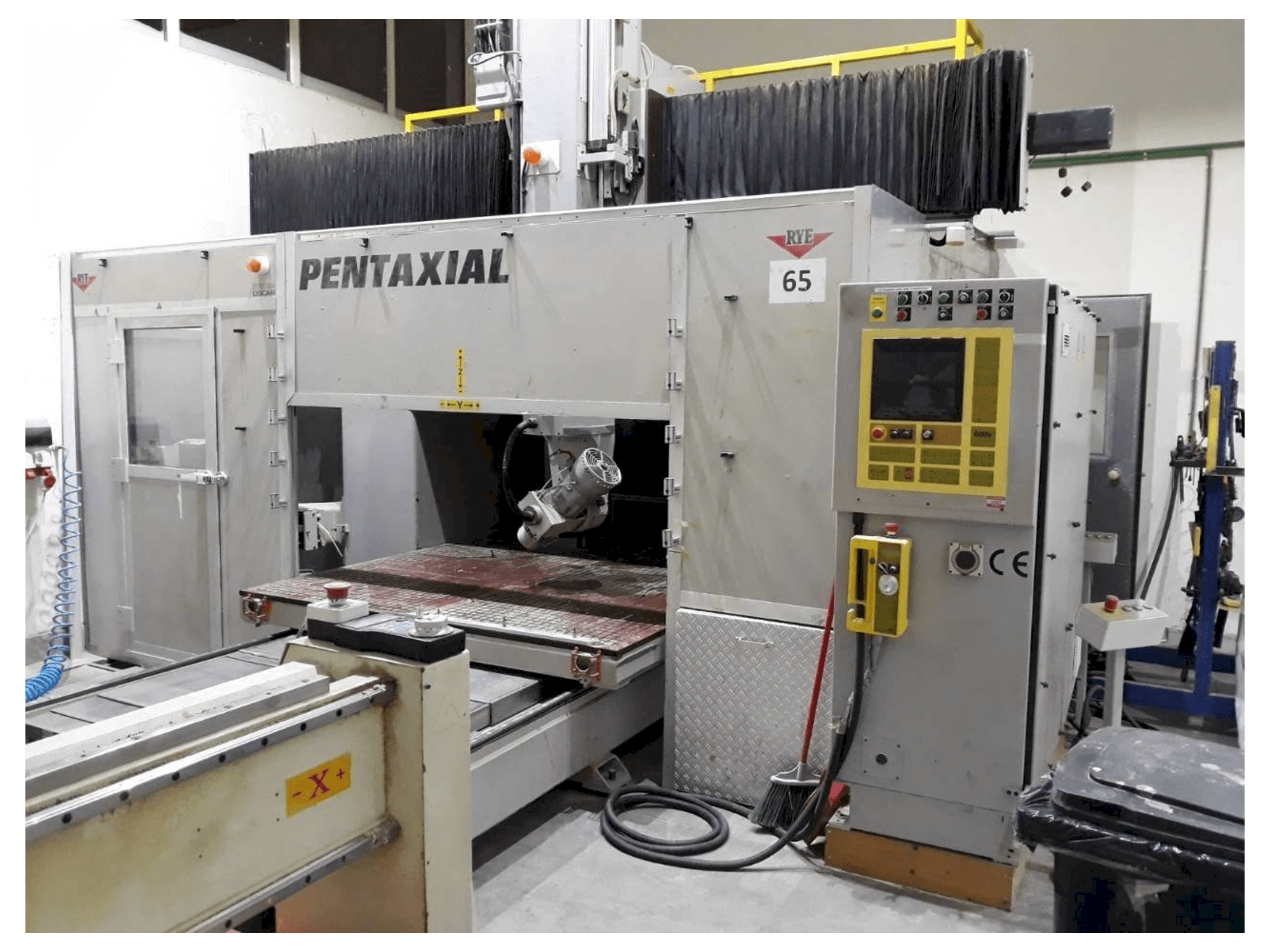

Front view of Rye Pentaxial 1710TP machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Rye Pentaxial 1710TP

Photo Gallery

Rye Pentaxial - 1710TPRS-MIL-RYE-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Rye Pentaxial 1710TP Milling

Show in original language

This Rye Pentaxial 1710TP Universal Machining Center was manufactured in 1998. This 6 axis machine is controlled through a BWO CNC900C Control unit. This model has a turning speed range of 1000-18000 rpm. The machine is in excellent condition of robust construction with powerful AC power servo motors.

Overview

brand: Rye Pentaxial
year: 1998
MODEL: 1710TP
application type: Milling
Location: Serbia
machine type: Universal Machining Centre

Technical Information - Rye Pentaxial 1710TP

General Data

Measurements width: 5400 mm
Measurements depth: 5250 mm
Measurements height: 4300 mm
Machine weight: 9000 kg

Control Unit

Model: CNC900C

Main drive

Spindle speed range: 1000-18000 1/MIN
Spindle motor power: 26 KW

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 2600 mm
Z-AXIS Movement: 710 mm
C-AXIS Movement: 2500 mm

Table

Outer length: 1700 mm
Outer width: 1000 mm

Additional Information

Machine history

Material type: Composites, aluminum, wood and plastic

Machine Benefits

Technical Machine Benefits:
- - Number of worktables: 2
- - Routing head: 10kw with 12 position rack tool changer
- - Max collet size: shank dia. Of 25mm
- - A axis (rotation): 360 degrees
- - B axis (rotation): 210 degrees
- - Protection and sound-proof enclosure of the working units
- - Two working tables with internal vacuum system to lock the working pieces
- - The movable tables in x and c direction are independent and can work in pendulum or synchronized as a single table.
- - Holtrop & jansma cabin measuring 270x300 cm with two doors armored with sound insulation panels.
Qualitative Machine Benefits:
- - Excellent condition of robust construction with powerful ac power servo motors.
- - Machine was retrofitted and pc control is set,
- - Mach3 cnc software
- - Suitable for use in the wood, aircraft and military industries.
- - Unique and very strong machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
