SAF - PLASMATOME.B 25DE-PLA-SAF-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- SAF PLASMATOME.B 25 Plasma Cutting Machine

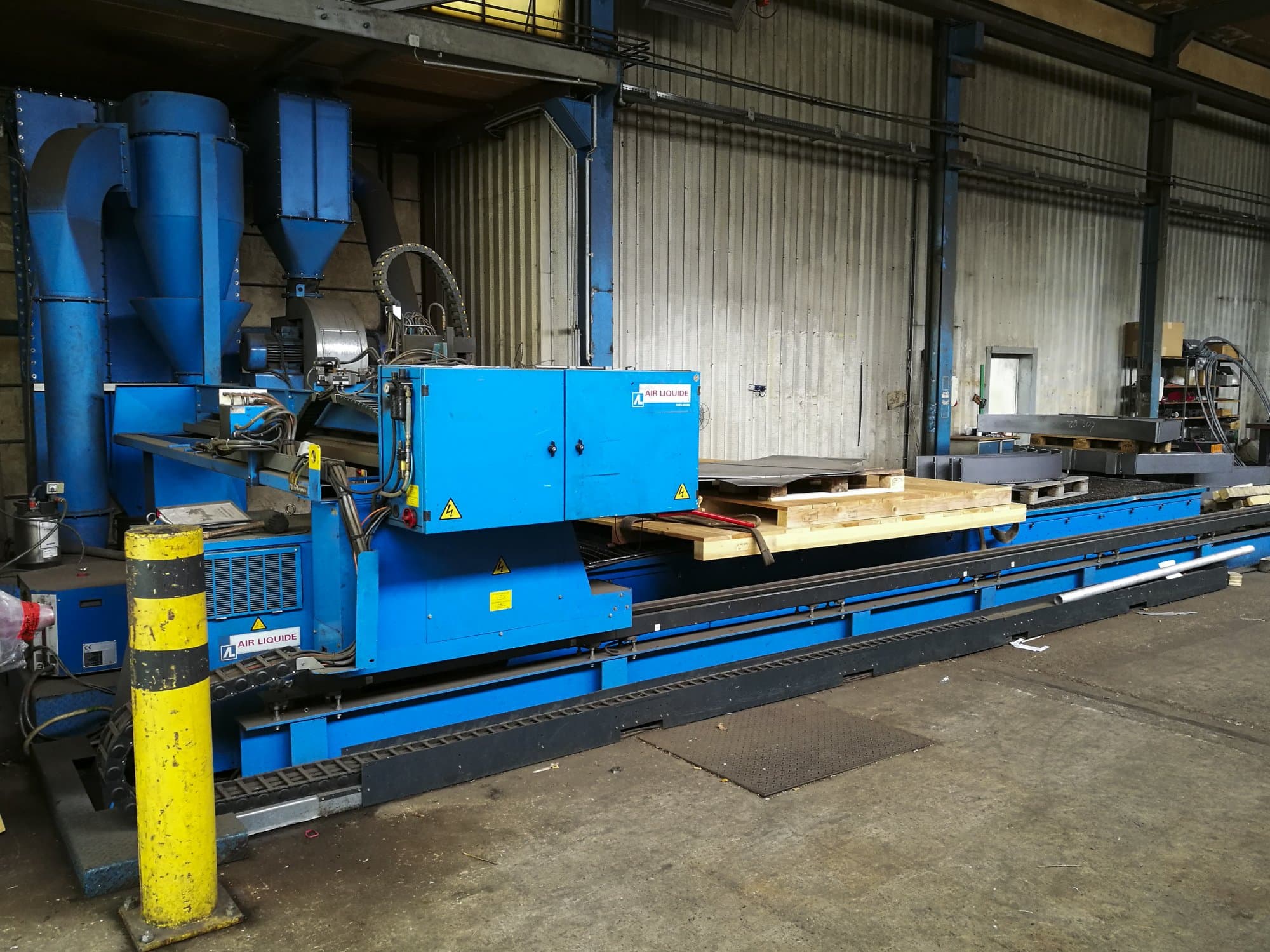

This SAF PLASMATOME.B 25 Plasma Cutting Machine was built in Germany in the year 2002, and has estimated production record of 31200 working hours. This machine is equipped with a SAF Digisaf 5 Control unit with Floppy interface, making it an easy to handle machine that stands in a good condition. The PLASMATOME.B 25 stands out through its outstandingly spacious table, allowing to work on up to 15000 mm on the X axis. In the past this machine has worked most of its time on 20 mm thick steel and, upon agreement, a dust extractor can be included as additional equipment.
Overview
- brand: SAF
- year: 2002
- MODEL: PLASMATOME.B 25
- production hours: 31200
- application type: Cutting
- Location: Germany
- machine type: Plasma Cutting Machine
Technical Information - SAF PLASMATOME.B 25
General Data
- Measurements width: 18000 mm
- Measurements depth: 8000 mm
- Measurements height: 2000 mm
Control Unit
- Model: Digisaf 5
- Interface: Floppy
Main drive
- Plasma brand: SAF Netrajet HP 125
Movement
- X-AXIS Movement: 15000 mm
- X-AXIS Working Feed: 15 m/min
- Y-AXIS Movement: 3000 mm
- Y-AXIS Working Feed: 15 m/min
Table
- Outer length: 7000 mm
- Outer width: 2600 mm
- Height adjustment: 2000 mm
Max Material thickness
- Steel: 22 mm
- Stainless steel: 15 mm
- Aluminum: 15 mm
Media
- Main electronic connection: 400 V / 50 Hz
Additional Equipment
- - Dust extractor (upon request)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
