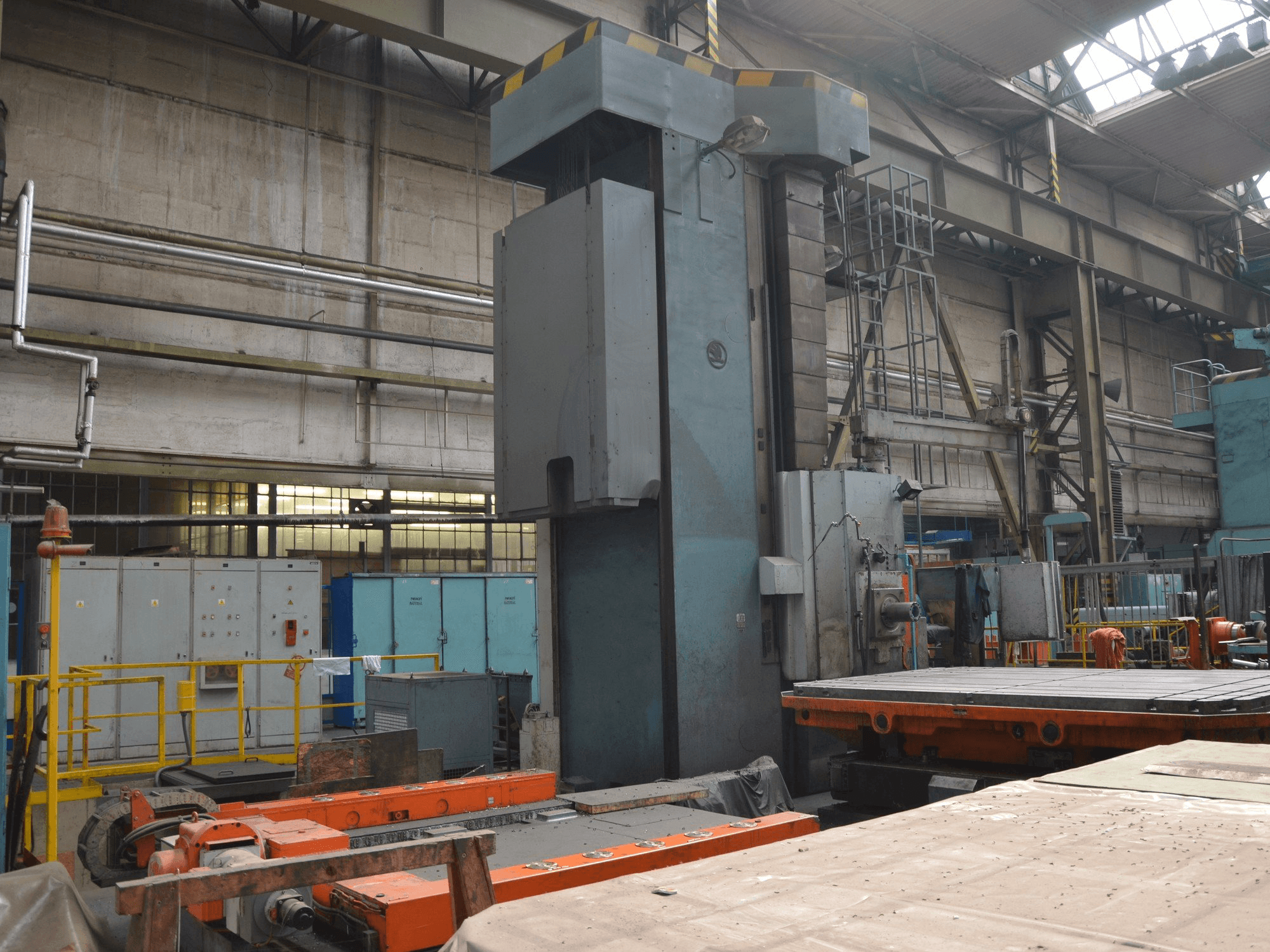

SKODA W 180NC Boring Machine

Show in original language

This SKODA W 180NC Boring Machine was manufactured in 19900 in the Czech Republic. Equipped with a Siemens SINUMERIK 850 ME Control unit, this machine has mainly worked with steel and stainless steel. This model stands out due to its large table size.

Overview

brand: SKODA
year: 1990
MODEL: W 180NC
application type: Other Machine Tools
Location: Czech Republic
machine type: Boring Machine (Metal)
control unit brand: SIEMENS

Technical Information - SKODA W 180NC

General Data

Machine weight: 140000 KG

Control Unit

Model: SINUMERIK 850 ME
Brand: SIEMENS

Main drive

Spindle speed range: 1000 rpm 1/MIN

Movement

X-AXIS Movement: 6500 mm
Y-AXIS Movement: 3000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 40000 kg

Table

Outer length: 3500 mm
Outer width: 2240 mm

Additional Equipment

- 2 pcs Replacable rotary table desks - size 3500 x 2240 mm
- 2 pcs Replacable rotary table desks - size 2240 x 2240 mm
- 3 pcs angle milling heads (IFVW 1 B, IFVW 2 B, IFVW 3 B)
- 4 pcs boring equipment (IWD 125, IWD 200, IWD 320, IWC)

Additional Information

Machine history

Material type: Steel, stainless steel
End product: Machinery parts
Industries: Machinery buildings

Machine Benefits

Technical Machine Benefits:
- - Spindle taper iso 60 (hydro-mechanical clamping)
- - Spindle diameter 180 mm
- - Main motor power 40 kw
- - Ram stroke (w axis) 1250 mm
- - Spindle + ram stroke (z+w axes) 2250 mm
- - Table movement (q axis) 1230 mm
- - Automatic tool changer
- - Chain pallets for 20 tools (6 pcs)
- - Rotary table ios 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
