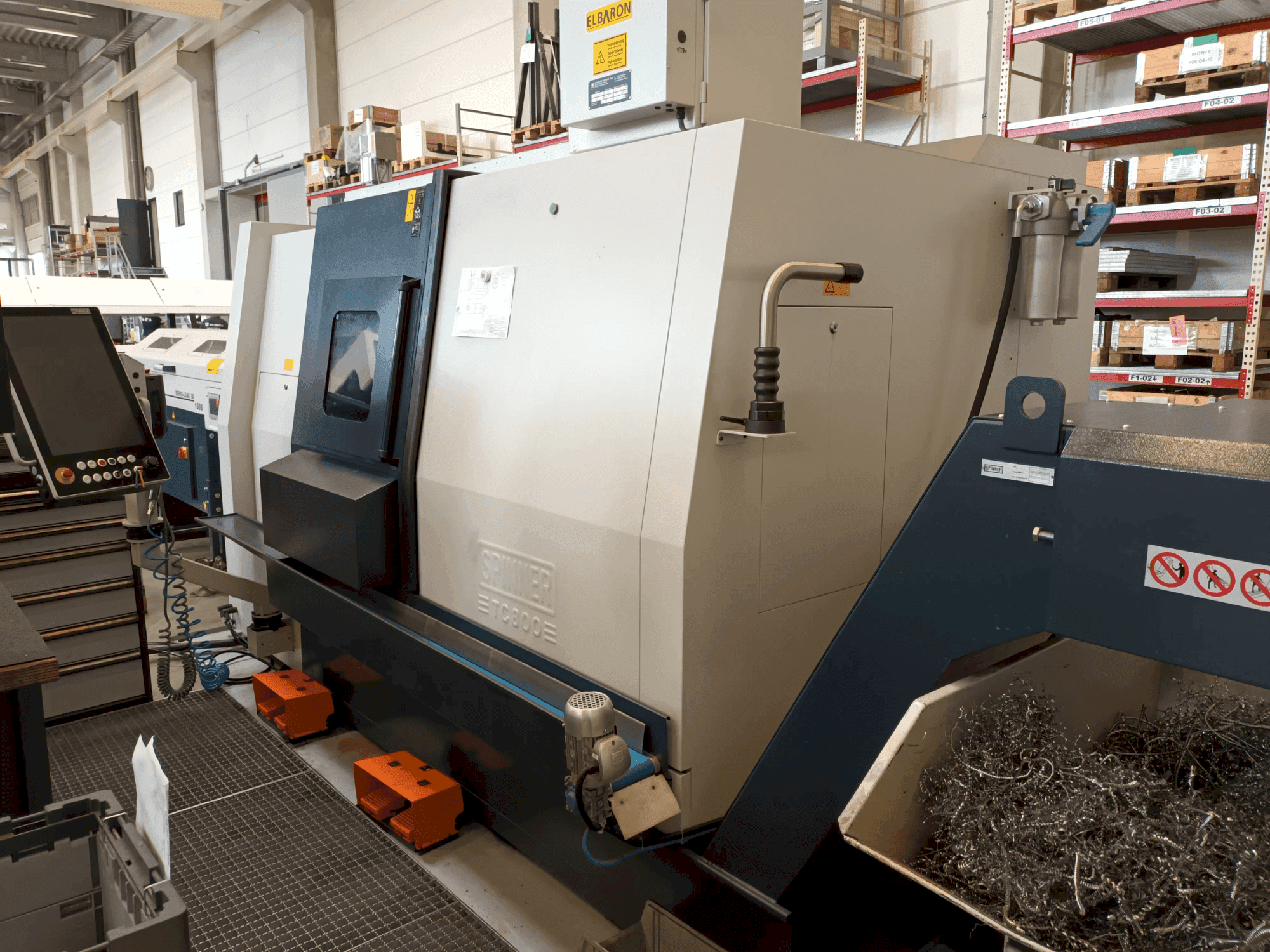

SPINNER - TC 800DE-TUR-SPI-2020-00003

Additional Equipment

• - Mist extraction system: For the work area
• - Parts catcher: Integrated in the work area door with collection chute
• - Optional: Conveyor belt for parts removal
• - UNIMAG interface: For bar loading magazines

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Technically flawless and functional
  • - The bar feeder has never been used
  • - The parts catcher as well
  • - Type: servo turret with cnc-controlled y-axis (vertical adjustment)
  • - Swivel speed: adjustable via feed potentiometer
  • - Touch probe: for tool measurement in the work area (quick-change coupling)

Extra information

• - Control Unit Controller: SIEMENS 840DE Control panel: 24" touchscreen (SPINNER SPIOS for Industry 4.0) Height-adjustable, rotatable, and tiltable Functions: Engraving cycles 3D simulation Residual material detection Languages: German (primary) English (secondary) Multifunctional handheld unit: With display for axis positions, spindle speed, feed rate, etc. Main Drive Main spindle: Torque: 930 Nm Bar capacity: 85 mm Clamping system: Hydraulic hollow clamping cylinder Chuck: SMW-Autoblok BHD (Ø 315 mm, 3-jaw) Spindle nose: DIN 55026/A8 Counter spindle: Speed range: 0-5000 rpm Power (Pmax): 23.5 kW Torque: 150 Nm Clamping system: Hydraulic hollow clamping cylinder Chuck: SMW-Autoblok BHD (Ø 210 mm, 3-jaw) Spindle nose: DIN /A6 Additional functions: Integrated ejector unit, spindle flushing for coolant
