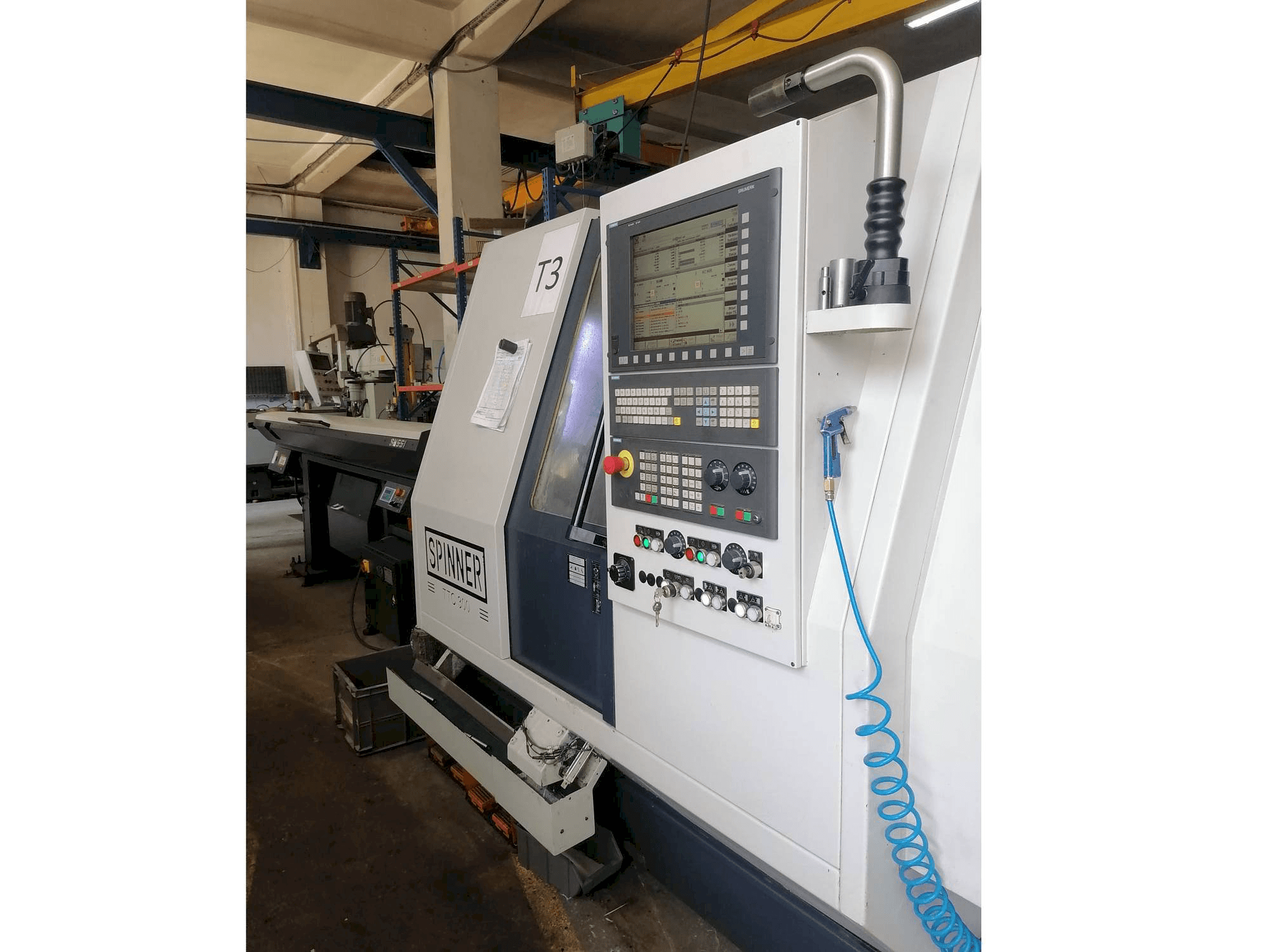

SPINNER TTC300-52 SMMCY Lathe

Show in original language

This SPINNER TTC300-52 SMMCY Lathe was manufactured in the year 2012 in Turkey. It is operated through a Siemens Sinumerik 840D control unit. This machine can operate with a spindle speed of up to 5000 rpm and a maximum turning length of 400 mm. 2 units are available.

Overview

brand: SPINNER
year: 2012
MODEL: TTC300-52 SMMCY
application type: Turning
Location: Turkey
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - SPINNER TTC300-52 SMMCY

General Data

Measurements width: 2000 mm
Measurements depth: 2000 mm
Measurements height: 2000 mm
Machine weight: 4600 kg

Main drive

Spindle speed range: 5000 1/MIN

Media

Main electronic connection: 3 x 400 V - 50/60 Hz
Chip conveyor: Yes

Additional Equipment

- LNS SYS51 magazine bar feeder, dia 51 max
- Spindle coolant system, Electronic panel coolant system
- Spinner original

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Slewing diameter: 400 mm
- - Max. Turning diameter: 200 mm
- - Max. Turning length: 400 mm
- - Stroke x1/x2/y (option) /z: 180/110/(+40/-40)/450 mm
- - Max. Speed x1/x2/y/z: 15/15/15/24
- - Mirror size: 210 mm
- - Spindle motor power (100% / 40%) torque (100% / 40%): 15 / 19 kw
- - Cooling tank capacity: 150l
- - Upper turret has c and y axis
- - Lower turret is c axis
Qualitative Machine Benefits:
- - Two turrets are working simultaneously
- - Siemens 840d with shop turn options.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
