➤ Used SPINNER VC 450 For Sale | gindumac.com

Show in original language

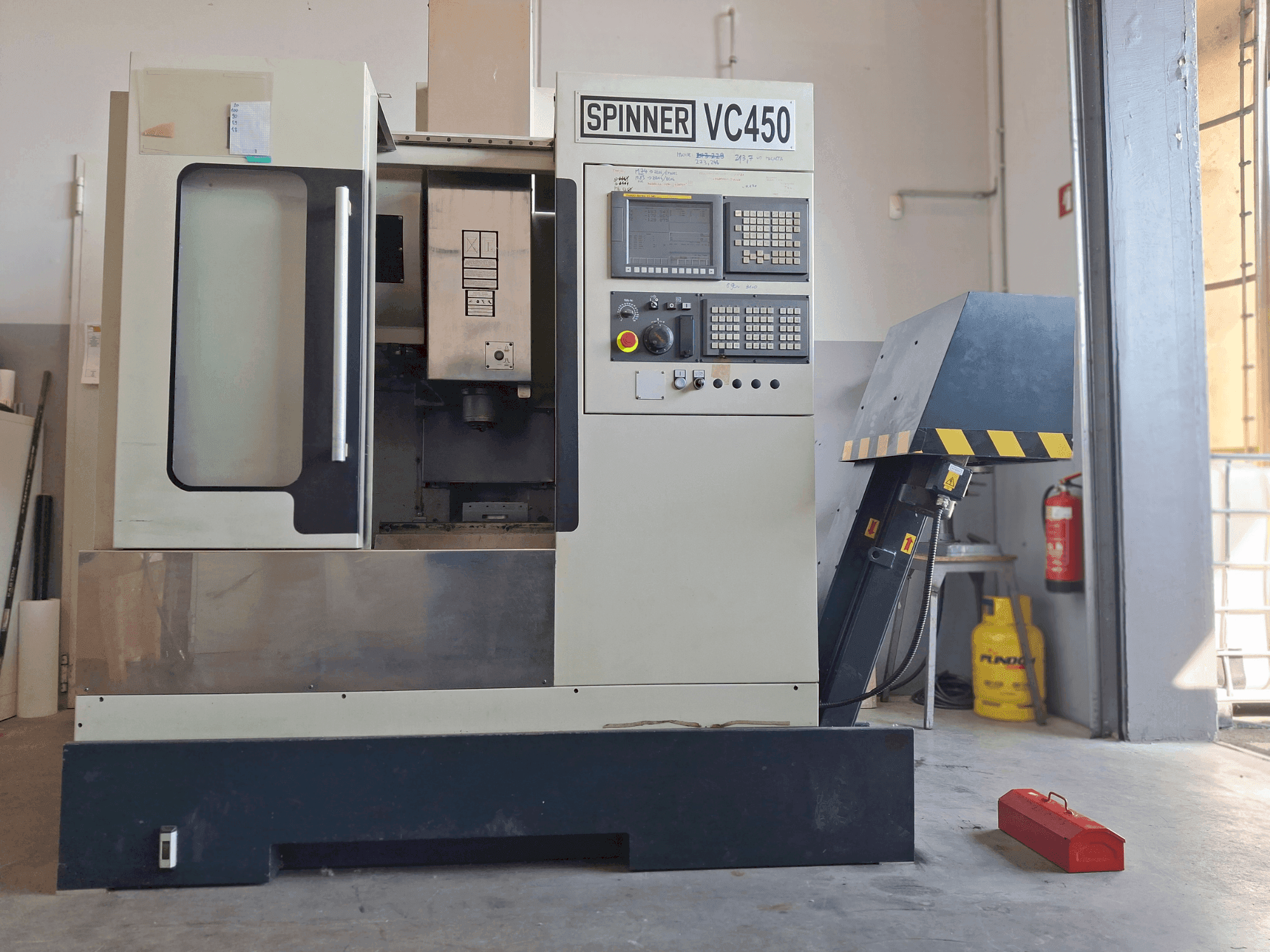

This 3-axis SPINNER VC 450 was manufactured in 2011. It features a Fanuc 0i-MD control unit, X/Y/Z travels of 450/400/400 mm, and a rapid traverse rate of 36 m/min. The spindle operates at up to 15,000 rpm with a power of 7.5 kW. It includes a 24-tool changer, linear guideways, and a chip conveyor. If you are looking to get high-quality milling capabilities consider the SPINNER VC 450 machine we have for sale. Contact us for more information.

Overview

brand: SPINNER
year: 2011
MODEL: VC 450
production hours: 0
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - SPINNER VC 450

Control Unit

Brand: FANUC
Model: oi-md

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 7.5 kW (S6/40%)
Tool taper: SK40 (DIN 69871-A)
Number of axis: 3

Movement

X-AXIS Movement: 450 MM
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 400 MM
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 400 MM
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 770 mm
Outer width: 410 mm
Table load: 200 kg

Tools

Slots in storage: 24

Media

Chip conveyor: Yes

Additional Equipment

- Air-blow system for spindle taper
- Included: Approx. 40 SK40 tool holders

Additional Information

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
