STAMA - MC 535SI-MIL-STA-2001-00001

Name: STAMA MC 535
Brand: STAMA
SKU: SI-MIL-STA-2001-00001
Price: 35700 GBP
Availability: InStock

£ 35,700

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

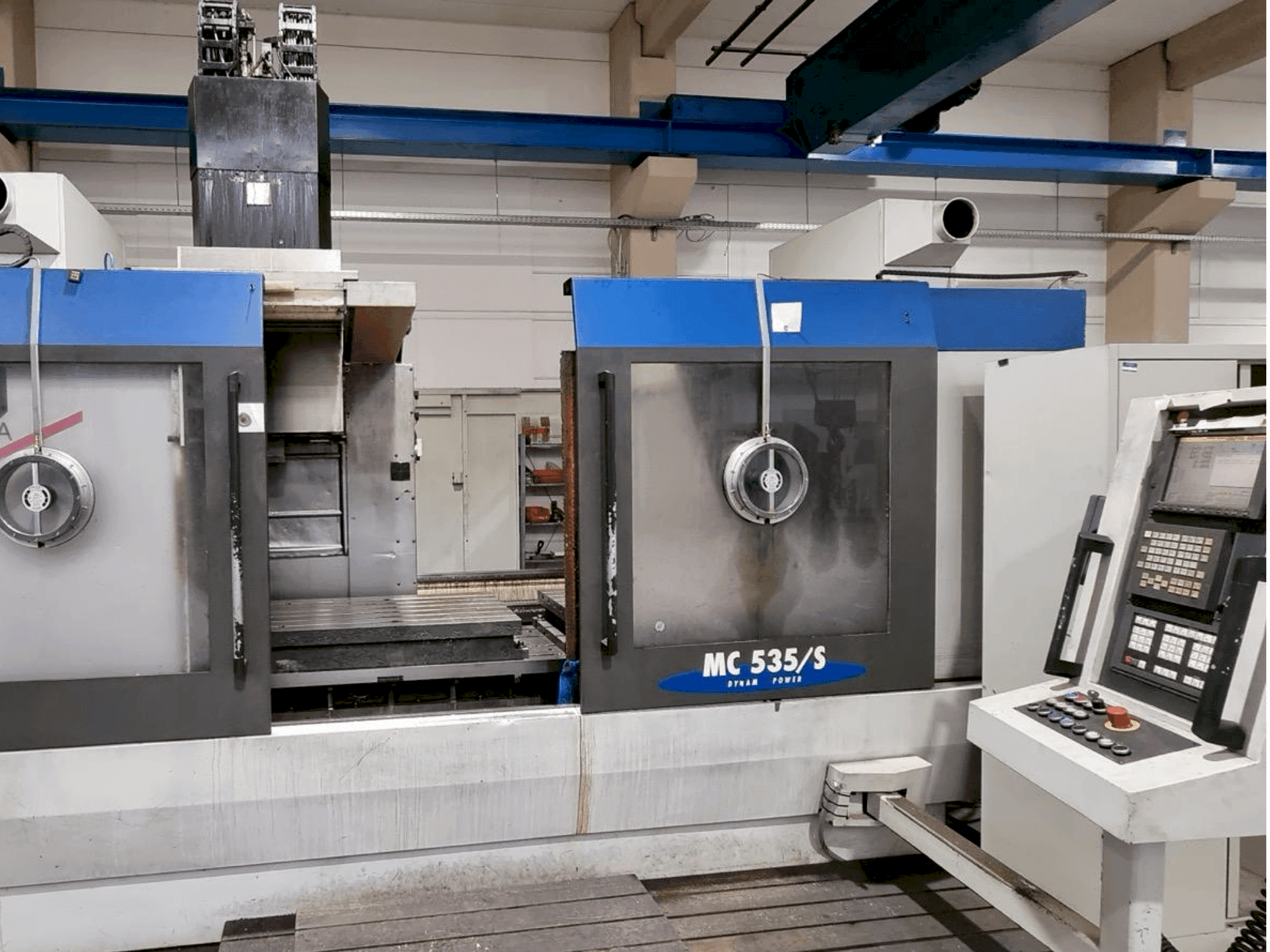

Stama MC 535 Vertical Machining center

Show in original language

This Stama MC 535 Vertical Machining center was manufactured in the year 2001 in Germany. It is equipped with 4 t-slots and operates with 3-axis. The max. workpiece weight is 3000 kg and the max. spindle speed 8000 rpm. The machine is in top condition and fully operational with currently 18,485 operating hours. It will be sold because of replacement with a new and larger one. For the moment it is not connected but upon agreement, on-site testing is possible.

Overview

brand: STAMA
year: 2001
MODEL: MC 535
production hours: 18485
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - STAMA MC 535

General Data

Measurements width: 4200 mm
Measurements depth: 7600 mm
Measurements height: 3700 mm
Machine weight: 12000 kg

Control Unit

Model: 18 MBi
Brand: FANUC

Main drive

Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 2200 MM
X-AXIS Rapid traverse: 10000 mm/min
Y-AXIS Movement: 500 MM
Y-AXIS Rapid traverse: 10000 mm/min
Z-AXIS Movement: 510 MM
Z-AXIS Rapid traverse: 10000 mm/min

Workpiece

Workpiece weight: 3000 KG

Table

Outer length: 3100 mm
Outer width: 520 mm
TSlots size: 18H12
Number of tslots: 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Slot spacing: 125/150
- - Table spindle nose max : 760 mm
- - Table height above floor : 858 mm
- - Swivel capability: no
- - Table spindle nose min : 250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
