Star - SR-20J type CIT-TUR-STA-2019-00002

Name: Star SR-20J type C
Brand: Star
SKU: IT-TUR-STA-2019-00002
Price: 87050 GBP
Availability: InStock

£ 87,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Star SR-20J type C For Sale | gindumac.com

Show in original language

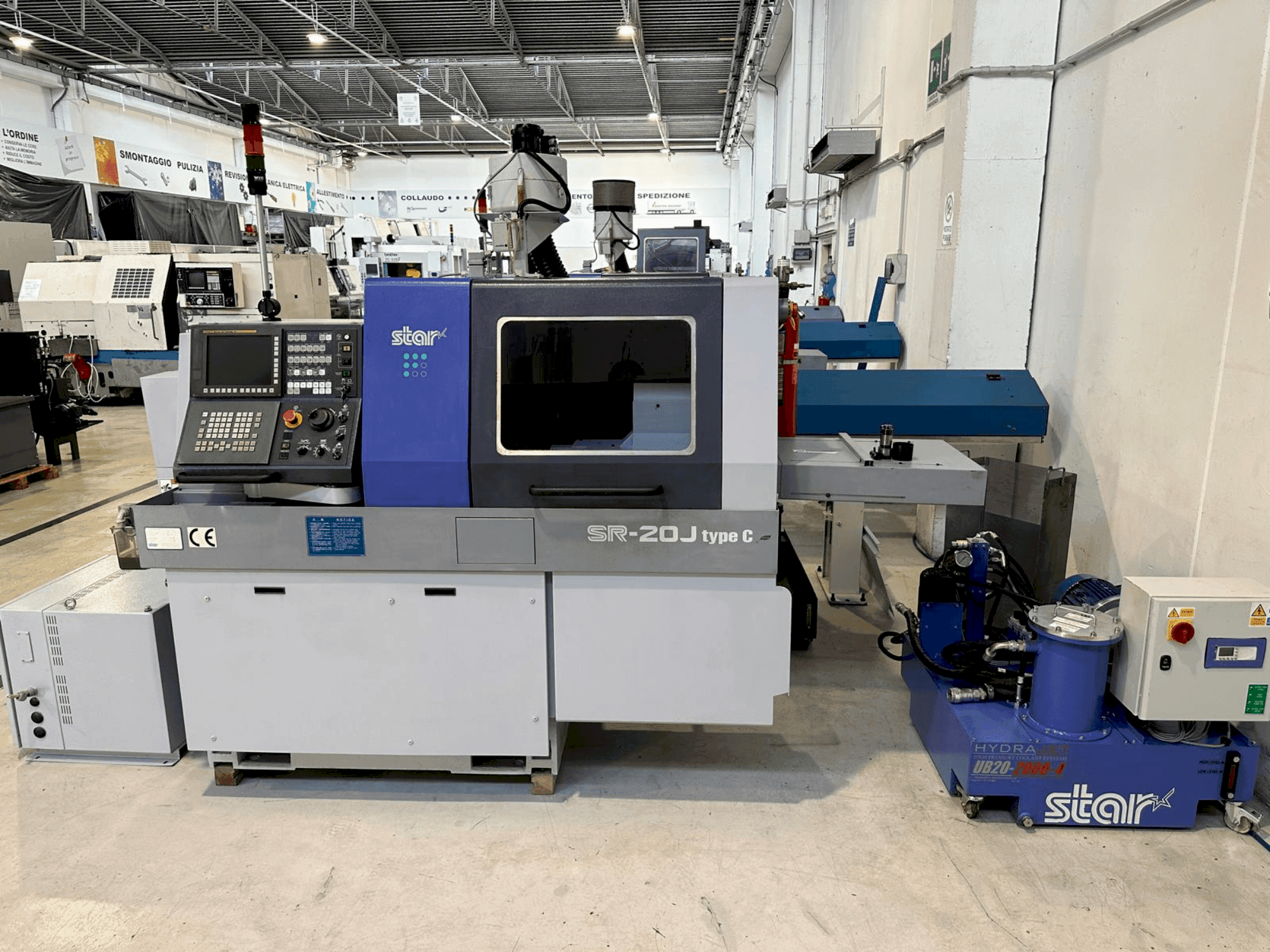

This 7-axis Star SR-20J type C swiss type turning machine was manufactured in 2019. It features a maximum machining diameter of 20mm, headstock stroke of 205mm, and spindle speeds up to 10,000rpm. Equipped with a Hydrajet high-pressure coolant system, Fire Trace suppressor, and a parts conveyor, it ensures efficient and safe operations. If you are looking to get high-quality turning capabilities consider the Star SR-20J type C machine we have for sale. Contact us for more information.

Overview

brand: Star
year: 2019
MODEL: SR-20J type C
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star SR-20J type C

General Data

Measurements width: 1200 mm
Measurements depth: 2250 mm
Measurements height: 1700mm
Machine weight: 2200 kg

Control Unit

Brand: FANUC
Model: SERIES 31I-MODEL B

Main drive

Spindle speed range: 8000rpm 1/MIN
Spindle motor power: 1.2kW
Number of axis: 7

Workpiece

Workpiece drm: 20mm

Tools

Number of index: 6

Additional Equipment

- Equipped with Hydrajet UB20-2000-4 High Pressure Coolant System, Filtermist S400 Mist Extraction Unit, Fire Trace Fire Suppressor, Tool Detection, Parts Conveyor, Werna Signal Production Tower & Manuals.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum stationary drilling capacity: Ø12mm (power driven Ø10mm)
- - Maximum tapping capacity: m10 (power driven m8) // maximum tapping capacity (back tools): m10 (power driven m8)
- - Maximum machining diameter: 20mm // back working maximum machining diameter: Ø20mm
- - Maximum front ejection length: 100mm
- - Maximum part projection length: 32mm
- - Maximum drilling capacity (back tools): Ø12mm (power driven Ø6mm)
- - Tool shank: 12mm
- - 4 position sleeve holder: front 4 / back 4
- - Cross milling: 3 positions
- - 4 position back tools

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
