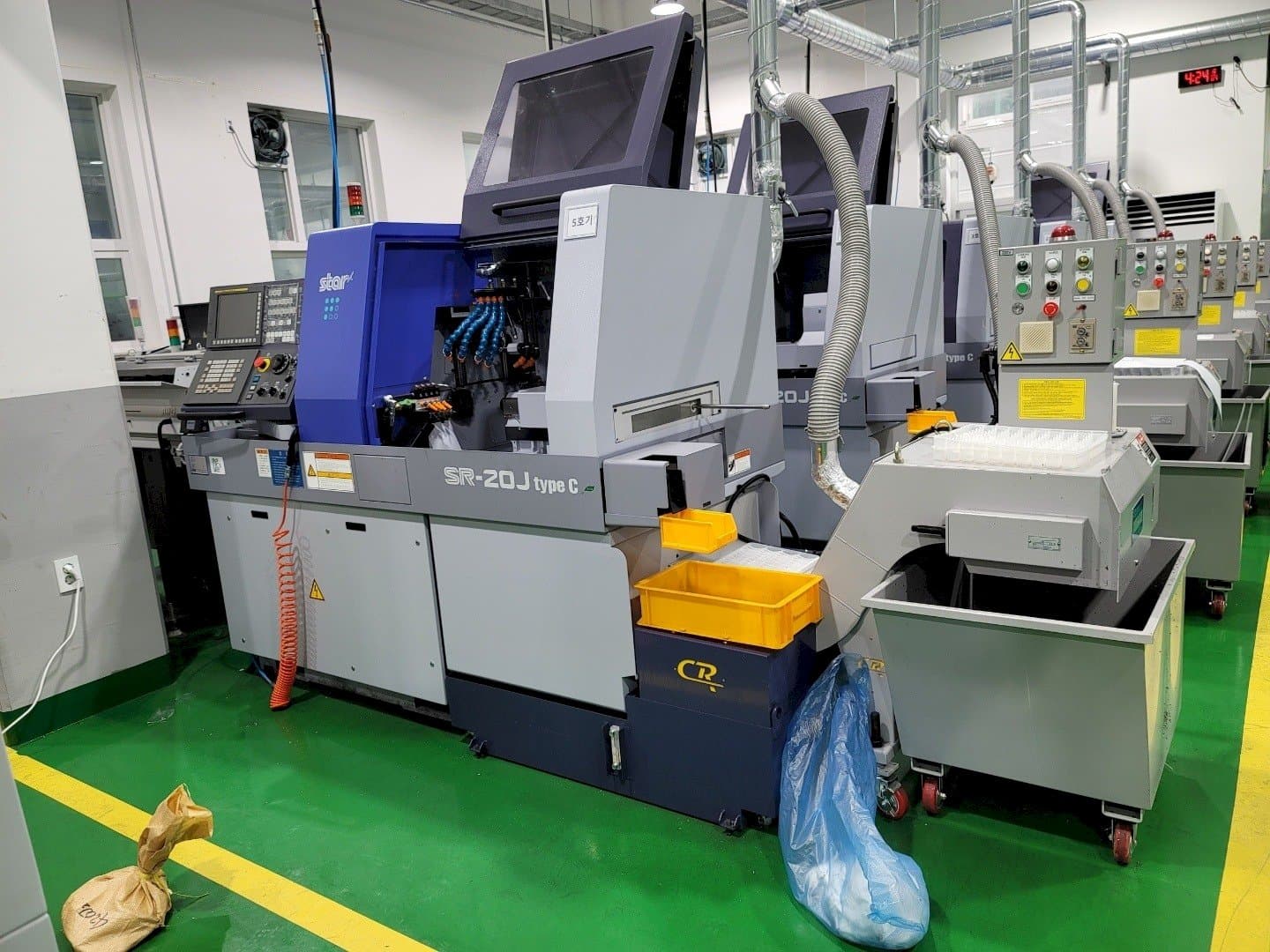

This Star SR20J type C Lathe was made in Japan in the year 2020. It has a record of only 200 hours. This machine is operated through a FANUC Series 31i-MODEL B control unit. It can work with a spindle speed up to 10000 rpm and a headstock stroke 205 mm. This machine has a sub-spindle and 4 spindle drilling head. Included coolant pump 120 Bar . There are 5 units available.
Overview
- brand: Star
- year: 2020
- MODEL: SR20J type C
- production hours: 200
- application type: Turning
- Location: South Korea
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - Star SR20J type C
Control Unit
- Control Brand: FANUC
- Control Model: SERIES 31I-MODEL B
Dimensions
- Machine Weight: 2200 kg
Technical Specification
- Spindle Power: 2.2 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Included coolant pump 120 Bar
Machine Benefits
Qualitative Machine Benefits
- Rapid feed rate: 35m/min (xb, zb)
- Main spindle indexing angle: c axis control
- Axis: c1, c2, x1, y1, z1, x2, z2
- Bar-feeder (barload bwg)
- Chip bucket
- Call right (led 3 step)
- Guideway type: lm guide
- Mpg handle; manual books
- Ce mark
- Machine condition 99. 99%
Technical Machine Benefits
- Max. Diameter: 20 mm
- Max. Headstock stroke standard: 205 mm
- Number of tools: 6 tools; front 4 tools, rear 4 tools
- Spindle speed: 8000 rpm (secondary) drive motor: 1. 2 kw
- Tool shank: 12 mm [4 spindle sleeve holder]
- Max. Drilling capability:∮10mm; max. Tapping capability: m8*p1. 25
- [2 spindle front sleeve holder] number of tools: front 2 tools
- Max. Drilling capability:∮ 8 mm, max. Depth of hole: 100mm
- Number of tools: cross milling 3 tools
- Max. Drilling capability:∮8 mm; max. Tapping capability: m6*p1. 0
Extra Information
the machine has sub-spindle and 4 spindle drilling head
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
