➤ Used DEMAG Ergotech 330-2300 - Injection Moulding

Show in original language

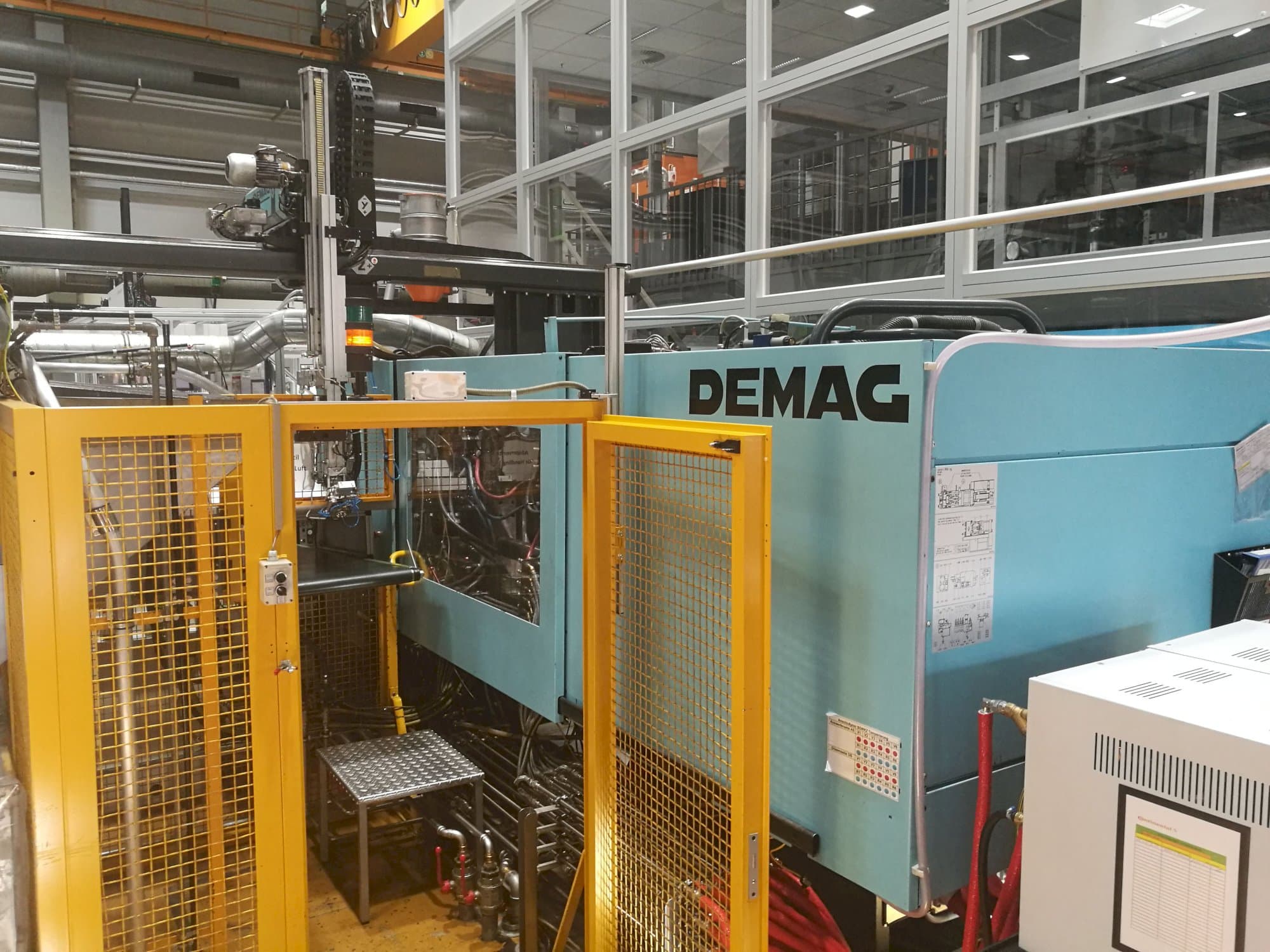

This DEMAG Ergotech 330-2300 Injection Moulding Machine was made in Germany in 1997. Operated through a DEMAG NC4 Control unit, this machine counts with a clamping force of 3300 kN and and injection pressure of 891 bar.

Overview

brand: SUMITOMO SHI DEMAG
year: 1997
MODEL: Ergotech 330-2300
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Ergotech 330-2300

General Data

Measurements width: 6500 MM
Measurements depth: 1900 MM
Measurements height: 2300 MM
Machine weight: 15000 kg

Control Unit

Model: NC4
CNC main language: German
CNC language customizable: Yes

Injection Unit

Shot weight: 2420 g/PS
Stroke volume: 60 cm³
Injection pressure: 891 bar
Plasticizing rate max.: 800 g/s PS

Clamping unit

Clamping force: 3300 kN
Opening stroke: 675 mm
Distance between bars: 710x630 mm
Mould height min: 330 mm
Mould height max: 830 mm
Size of mold platens: 1040x950 mm
Ejector stroke: 200 mm
Ejector force for / back: 80 kN

Media

Main electronic connection: 400 V / 50 Hz
Internal cooling: Yes

Additional Equipment

- Handling DEMAG (W322-448)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
