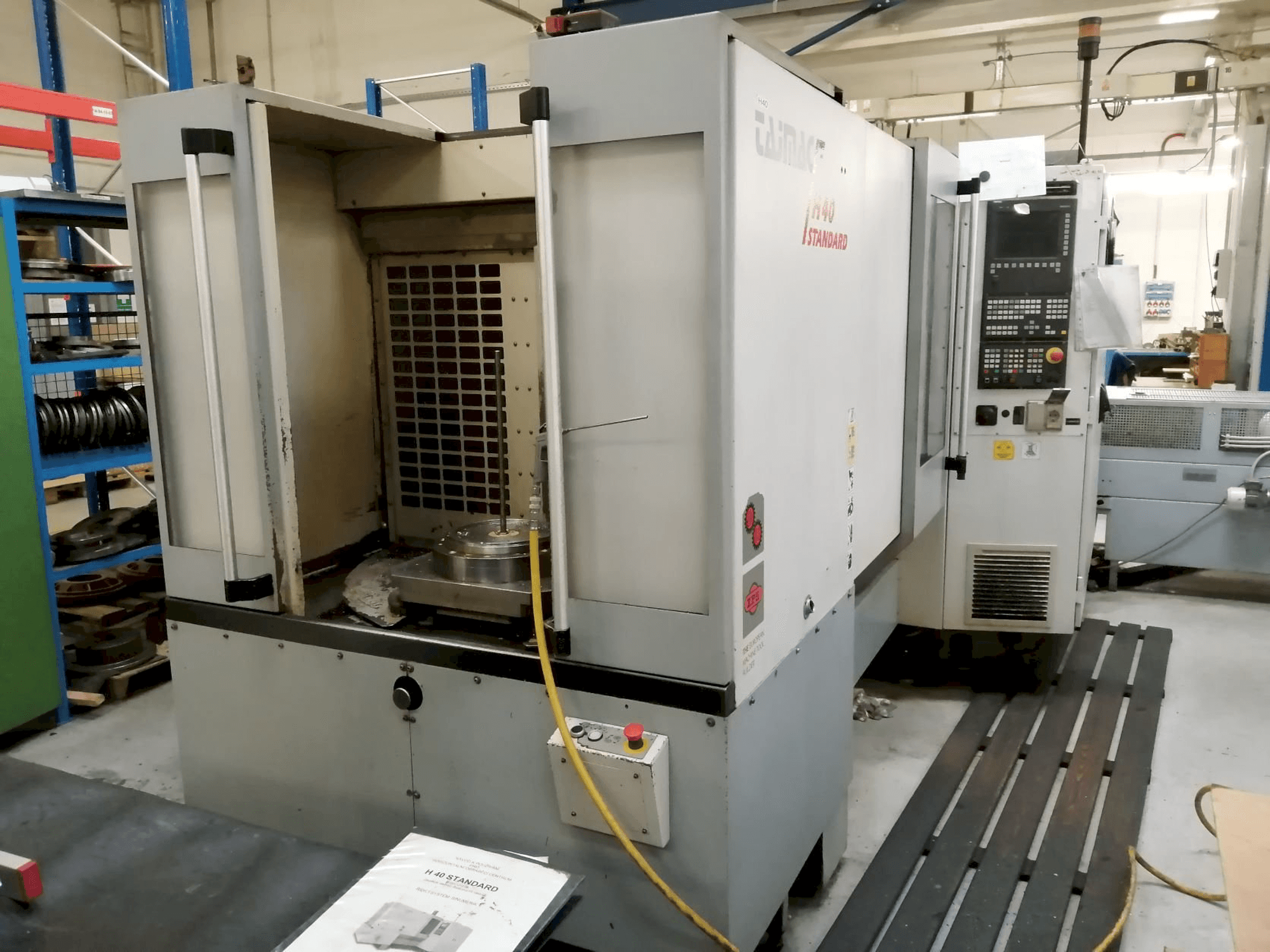

Front view of Tajmac-ZPC H40 Standard machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Tajmac-ZPC H40 Standard

Photo Gallery

Tajmac-ZPC - H40 StandardCZ-MIL-TAJ-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Tajmac-ZPC H40 Standard Horizontal Machine Center

Show in original language

This Tajmac-ZPC H40 Standard Horizontal Machine Center was made in Czech Republic in 2006. This 2 pallets and 4 axis machine operates through a Siemens Sinumerik 840D control unit and includes a table size of 400 x 500 mm. This machine also works with a spindle speed up to 8000 rpm.

Overview

brand: Tajmac-ZPC
year: 2006
MODEL: H40 Standard
production hours: 0
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - Tajmac-ZPC H40 Standard

General Data

Measurements width: 4177 mm
Measurements depth: 2170 mm
Measurements height: 2242 mm
Machine weight: 8600 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 560 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 400 mm
Outer width: 500 mm
Distance between: 50 mm

Tools

Slots in storage: 45
Max weight: 7 kg
Max tool diameter: 85/125 mm
Max tool length: 300 mm
Type of tool holder: SK 40

Media

Power consumption: 35 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 4 axis 2-palette center

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Through spindle coolant
- - Main motor power 12/17 kw (s1/s6-40%)
- - Min. /max. Distance between spindle nose and table 130-690 mm
- - Palette change time 10 s
- - Max. Workpiece size: dia 600 x height 600 mm
Qualitative Machine Benefits:
- - Regularly serviced, good condition
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
