Takisawa - NEX-350IT-TUR-TAK-2011-00002
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Takisawa NEX-350 Lathe
Show in original language

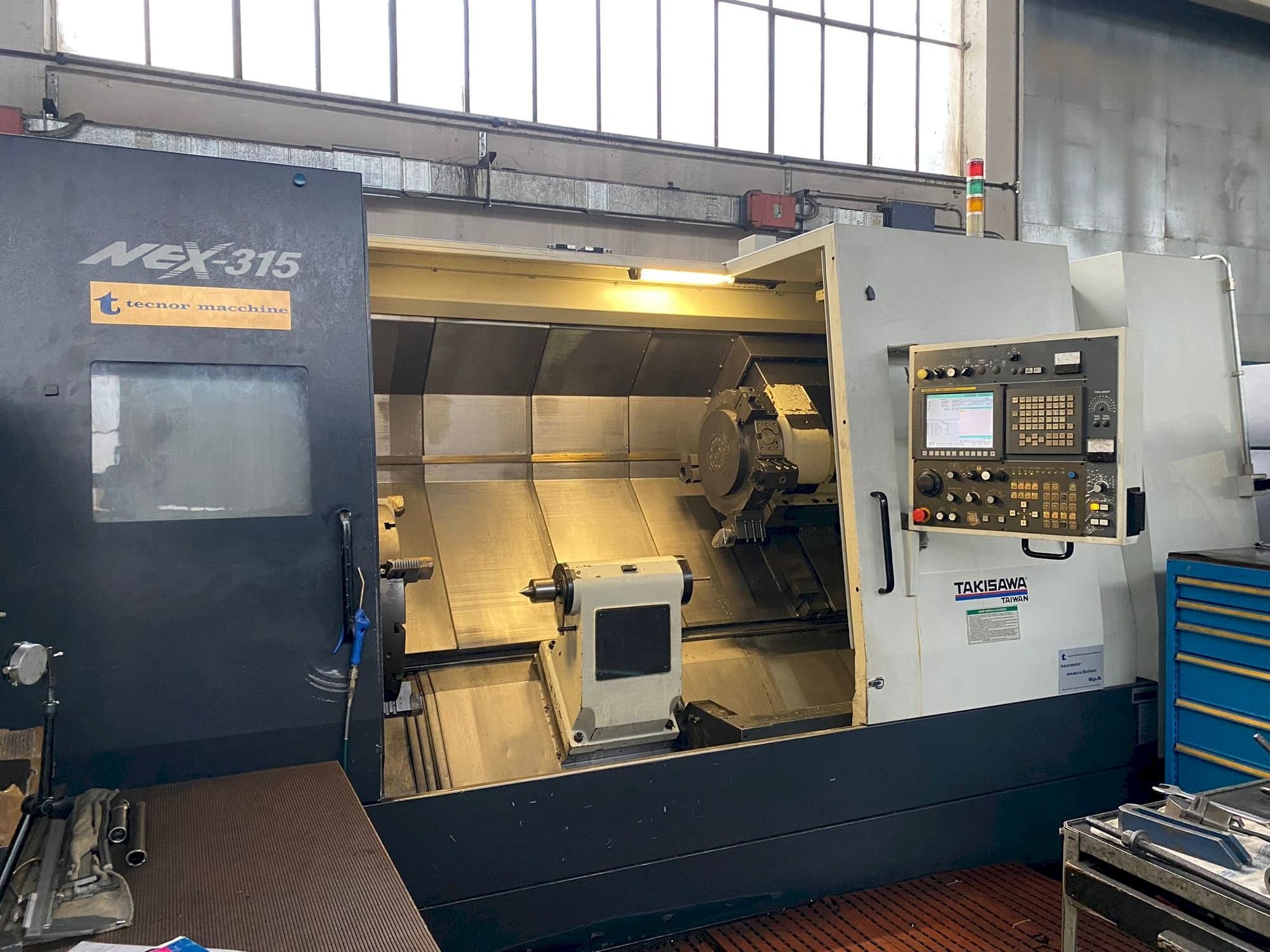

This Takisawa NEX-350 Lathe was manufactured in the year 2011. It is equipped with a TAKISAWA TURN-i FANUC control unit. The machine has a spindle speed of 2500 rpm.
Overview
- brand: Takisawa
- year: 2011
- MODEL: NEX-350
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - Takisawa NEX-350
Dimensions
- Machine Depth: 2100 mm
- Machine Height: 2340 mm
- Machine Weight: 11000 kg
Movement
- X-axis Travel: 390 mm
- Y-axis Travel: 1600 mm
Technical Specification
- Spindle Speed: 2500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Number of tools on the turret: 12
- Boring rod diameter: 50
- Feed rate x axis feed speed: 16 m/mm y axis feed speed: 16 m/mm z axis feed speed: 20 m/mm
- Tailstock tailstock stroke: 1600 mm tailstock chuck diameter: 150 mm tailstock chuck taper: mt#5 tailstock spindle stroke: 120 mm
- Numerical control (cn) type of control and characteristics: see details in par. 2. 3. 1 electricity supply *1 electrical power supply: 400 vac ±10% 3f+pe frequency: 50+60 hz control circuit voltage: 24 vdc installed power: 59 kva
- Motors *1 spindle motor: 30/37 kw rotary tool spindle motor: 5. 5/7. 5 kw b-axis servo motor: --- x-axis servo motor: 4. 0 kw y-axis servo motor: -- kw z axis servo motor: 7 kw indexing motor: 1. 2 kw turret hydraulic system motor: 1. 5 kw lubrication system motor: 0. 004 kw cooling system motor: 0. 4 kw
- Pneumatic supply: 0. 6 ÷ 0. 8 mpa feed temperature: 5 ÷ 40 °c without solid residues working pressure: 0. 5 mpa necessary flow rate: 10 litres/min
- Tank capacity *1 hydraulic power unit: 40 litres cooling lubricant tank: 230 litres lubrication control unit: 2 litres range change: 4 litres
Technical Machine Benefits
- Maximum rotation diameter: 820 mm
- Maximum turnable diameter: 620 mm
- Maximum turnable length: 1510 mm
- Maximum bar diameter: 105 mm
- Spindle bearing inner diameter: 160 mm
- Further information on work area and tool interferences par. 2. 4. 2
- Bar passage diameter: 117 mm
- Self-centering / collet technical characteristics: see value preface of this instruction manual
- Tool turret : turret type: 12t, rotation speed: 24000 rpm
- Tool stem height: 32
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
