TONGTAI TD-2500YBC Lathe

Show in original language

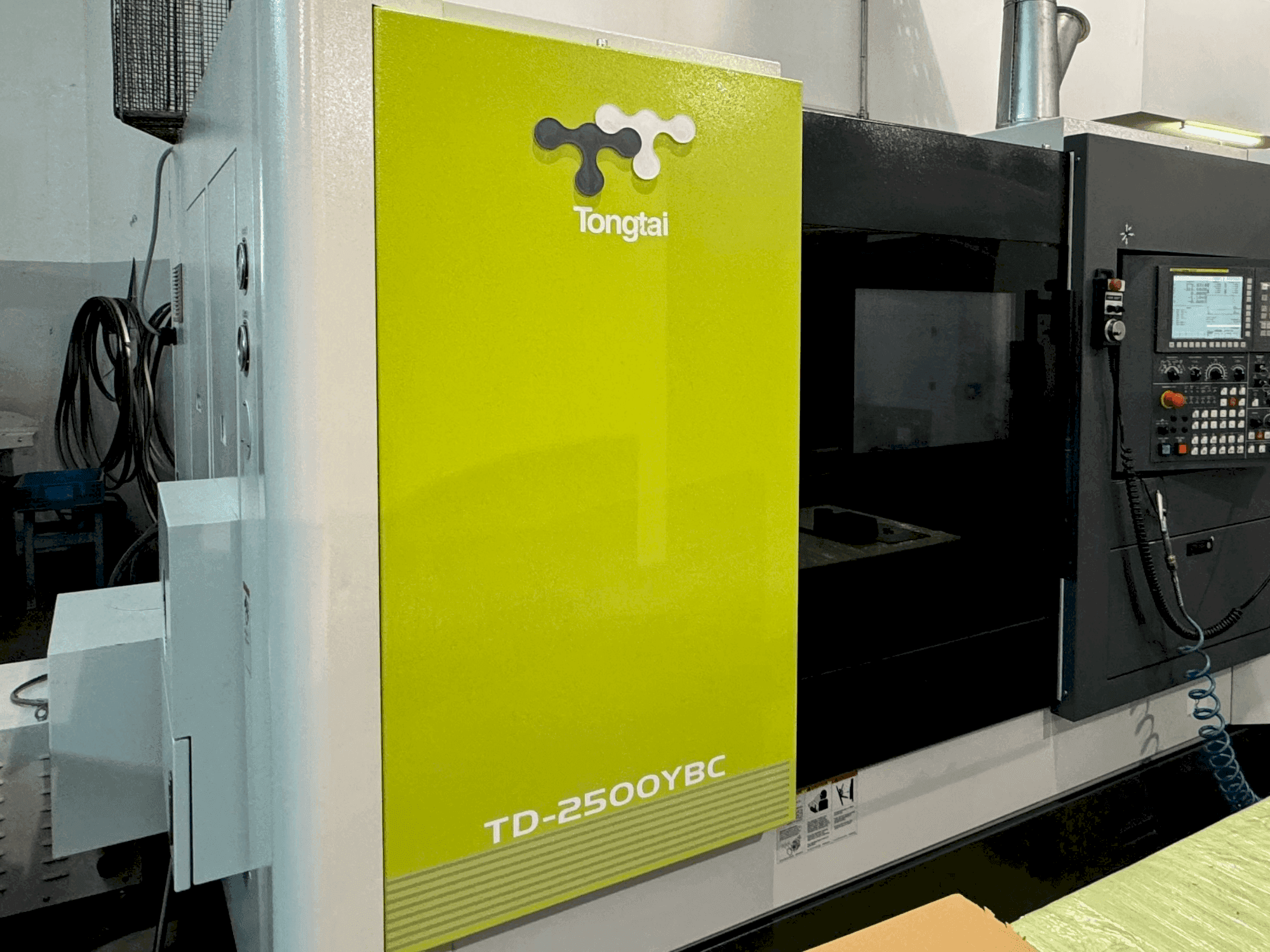

This TONGTAI TD-2500YBC Lathe was manufactured in 2019 in Taiwan. It is equipped with a FANUC Q1-TF control and has a spindle speed of 3500 rpm. The machine has 4 axes (X/Y/Z/B Axis Travel: 230/±51/600/630 mm) and can process a bar capacity of Ø64 mm. It is in a well-preserved condition with overall 7,600 operating hours.

Overview

brand: Tongtai
year: 2019
MODEL: TD-2500YBC
production hours: 7600
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Tongtai TD-2500YBC

General Data

Machine weight: 6340 KG

Control Unit

Model: Q1-TF
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 18.5
Number of axis: 4

Movement

X-AXIS Movement: 230 mm
Y-AXIS Movement: ±51 MM
Z-AXIS Movement: 600 MM
B-AXIS Movement: 630 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travel distance x-axis: 230 mm
- - Rapid traverse: x-axis: 30,000 mm/min - y-axis: 15,000 mm/min - z-axis: 30,000 mm/min
- - Rotational speed: 3,500 rpm (min. )
- - Chuck o. D. : 10" inch, bar capacity: Ø64 mm
- - X/y/z/b axis travel: 230/±51/600/630 mm
- - X/y/z/b axis rapid traverse: 30/15/30/30 m/min
- - Spindle nose: a2-8
- - Spindle motor: 18. 5/15/11 kw
- - Sub-spindle chuck o. D. : [6"] inch, sub-spindle speed: [5,000] rpm, sub-spindle motor: [7. 5/5. 5] kw
- - Tool capacity: vdi-40/bmt-65: 12 pc, vdi-30/bmt-55: 16 pc
Qualitative Machine Benefits:
- - Well-preserved used cnc lathe, tongtai td-2500

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
