TOS Kurim - FOQ 80CZ-MIL-TOS-2005-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- TOS Kurim FOQ 80 Milling Machine

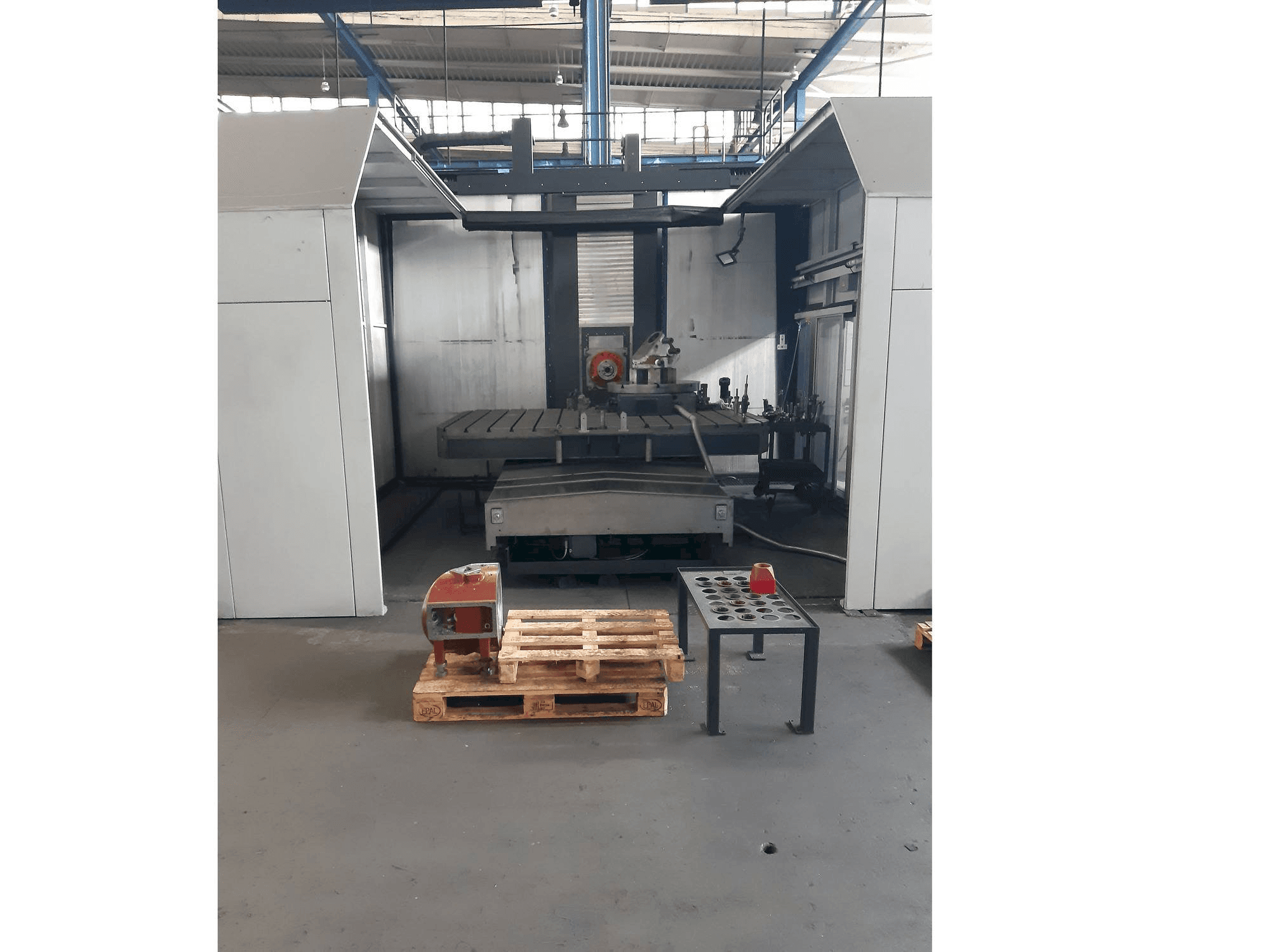

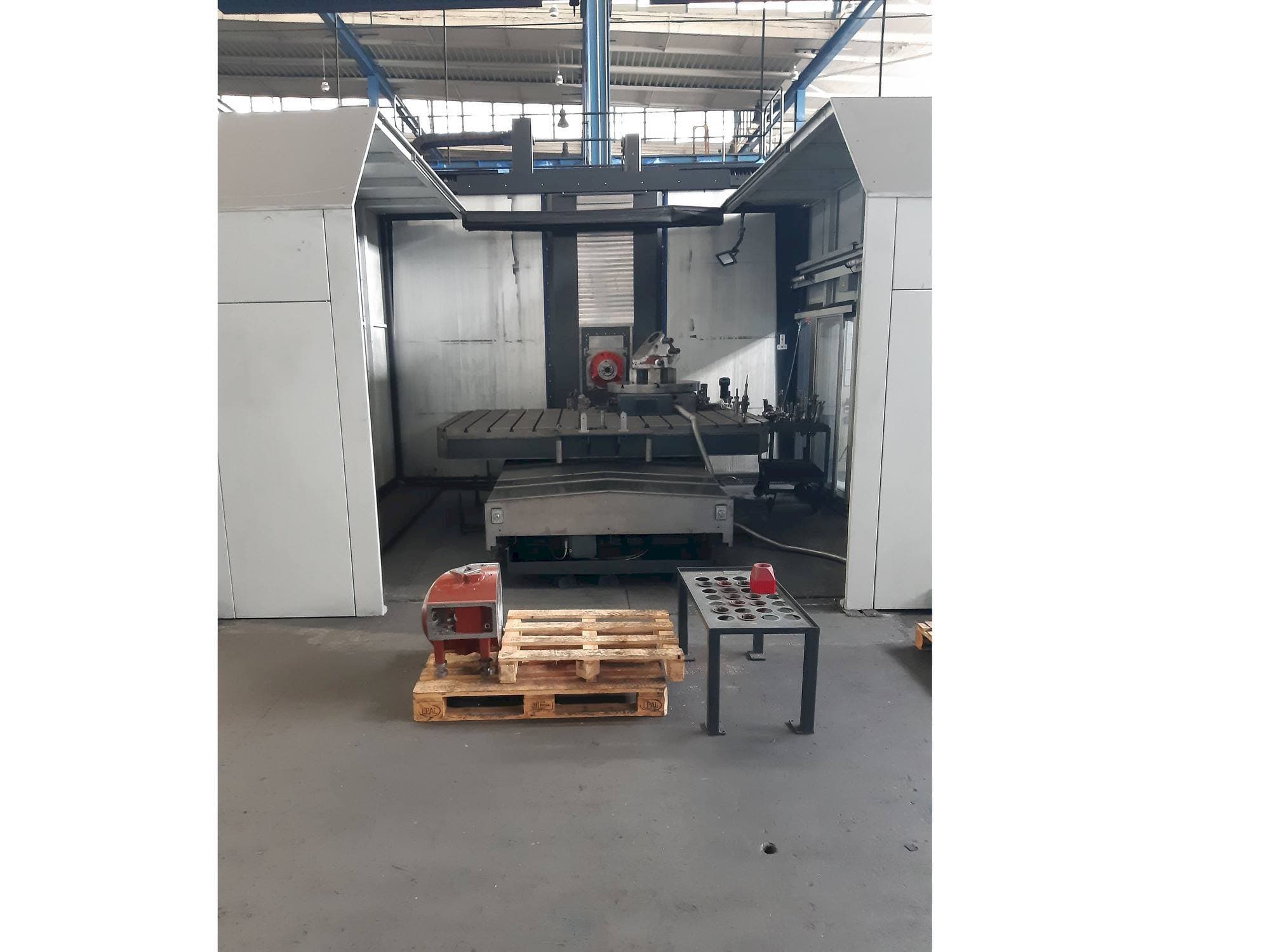

This TOS Kurim FOQ 80 Milling Machine was manufactured in the Czech Republic in the year 2005. This 7 axis machine operates through a Heidenhain iTNC 530 control unit. It can work with a spindle speed up to 4000 rpm. It has a table of 2000 mm outer length and 3000 mm outer width. The machine is in a very good condition.
Overview
- brand: TOS Kurim
- year: 2005
- MODEL: FOQ 80
- application type: Milling
- Location: Czech Republic
- machine type: Bed Type Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - TOS Kurim FOQ 80
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 63000 kg
- Table Length: 2000 mm
- Table Width: 3000 mm
Movement
- Number of Axes: 7
- X-axis Travel: 2600 mm
- Y-axis Travel: 1650 mm
- Z-axis Travel: 825 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Number of Tools: 20
- Spindle Power: 30 kW
- Spindle Speed: 4000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good conditions
Technical Machine Benefits
- Spindle for interchangeable heads
- Working feeds range x, y, z 1 – 30 000 mm/min
- Maximal feed force 20 000 n
- Spindle torque 2000nm
- Head va1: 4000 rpm, 2000 nm, iso50 ad, din
- 2-axis rotary head vk: 4000 rpm, 1000nm, iso50 ad, din
- Rmp60 renishaw workpiece probe
- High pressure cooling 30 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
