TOS Prima

Photo Gallery

TOS - PrimaCZ-MIL-TOS-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

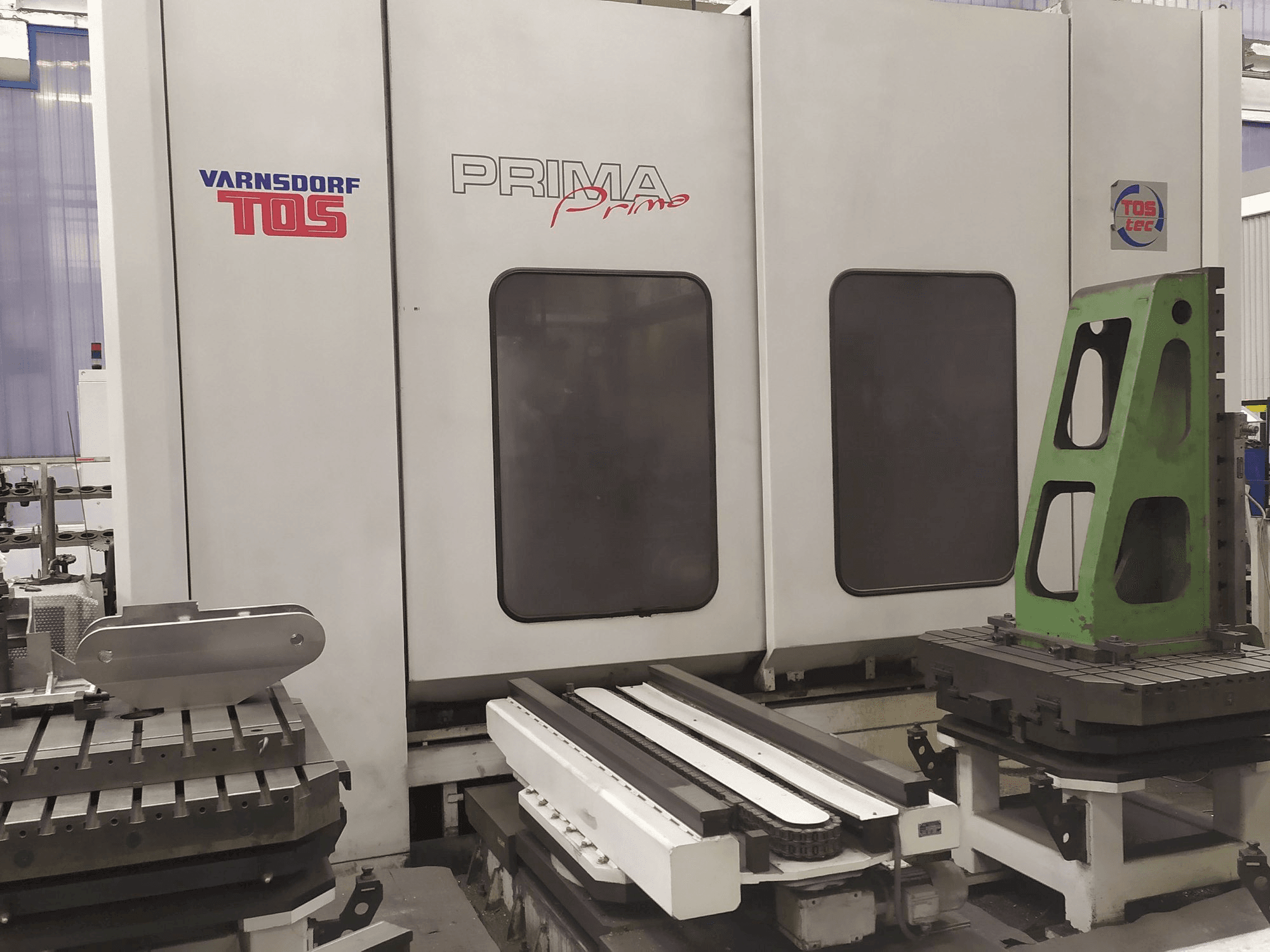

This TOS Prima horizontal machining center was built in 2007 in Czech Republic. It has a total of 65471 hours, of which 21744 are spindle hours. It is operated through a HEIDENHAIN iTNC 530 control unit. This 5 axis machine can perform with a spindle speed up to 5000 rpm and a work feed rate 20000 mm/min. It has been regularly maintained by TOS service only.

Overview

brand: TOS
year: 2007
MODEL: Prima
production hours: 65471
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - TOS Prima

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Spindle motor power: 28/22 kW (S6-60%/S1)
Number of axis: 5

Movement

X-AXIS Movement: 2000 MM
Y-AXIS Movement: 1300 MM
Z-AXIS Movement: 1600 MM
W-Axis Movement: 500 mm

Workpiece

Workpiece weight: 4000 KG

Table

Outer length: 1250 MM
Outer width: 1000 MM
Number of tslots: 22H8
Distance between: 100 MM

Tools

Slots in storage: 40
Max weight: 25 KG
Max tool diameter: 125/320 MM
Type of tool holder: ISO 50 DIN 69871

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
Regularly maintained by tos service only
New spindle bearings installed at 16. 000 hours

Technical Machine Benefits

Spindle diameter 100 mm
Torque 874/1100 nm (s6/s1)
Work feedrate 20. 000 mm/min
Rapid feedrate 30. 000 mm/min
B axis (table) indexing 0. 001 degree
Through spindle coolant 30 bar
5-pallet machining center

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
