Traub TNC 42/65 DGY Lathe

Show in original language

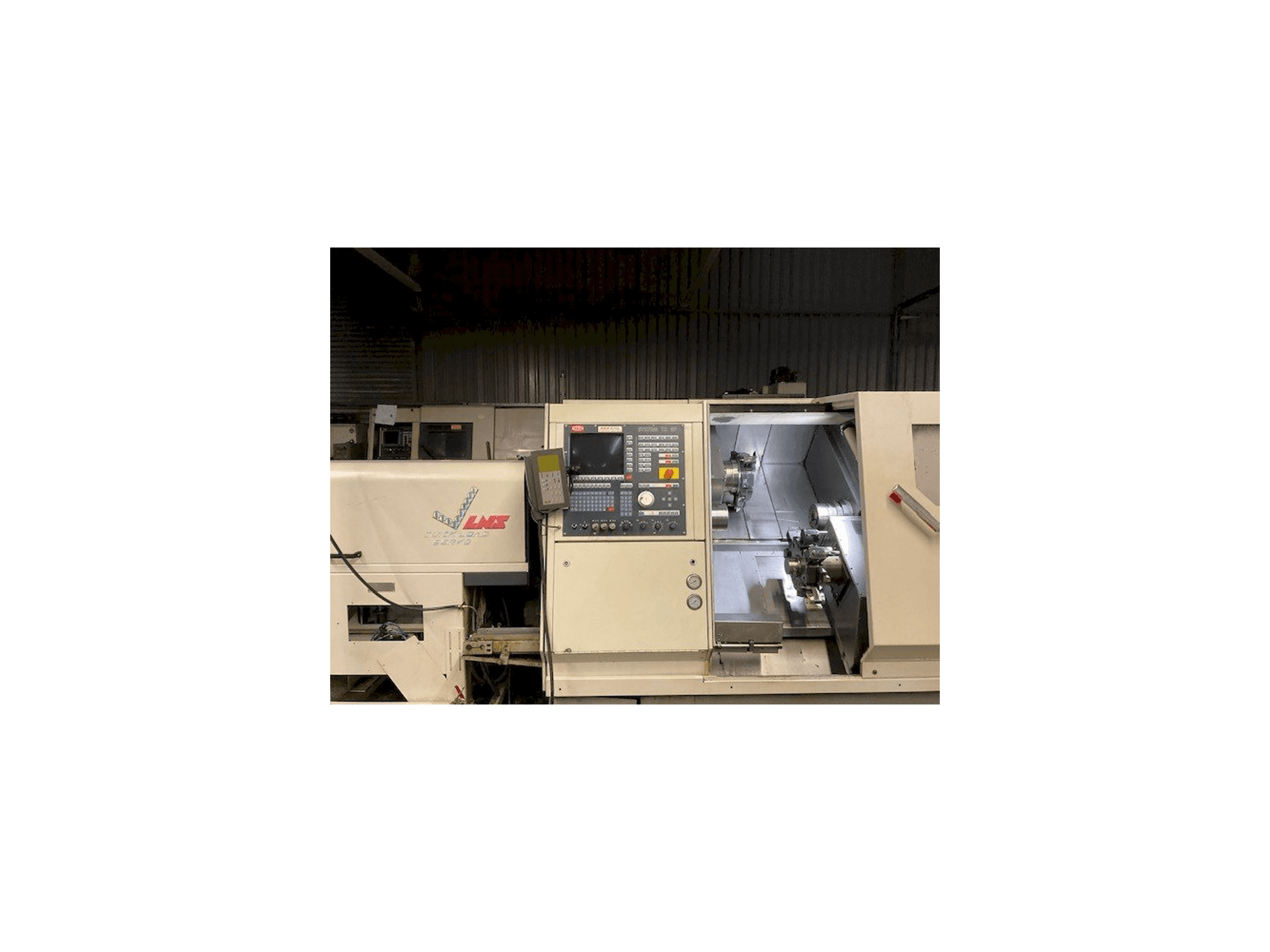

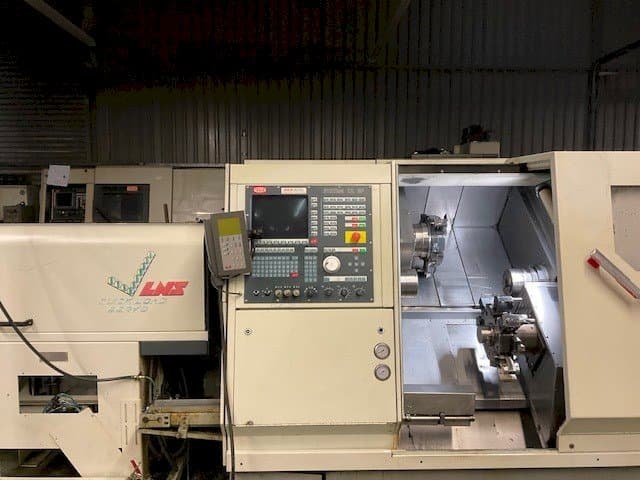

This Traub TNC 42/65 DGY Lathe was manufactured in the year 1995 and has 13000 production hours. It is equipped with a TRAUB TX8F control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: TRAUB
year: 1995
MODEL: TNC 42/65 DGY
production hours: 13000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - TRAUB TNC 42/65 DGY

General Data

Measurements width: 1970 mm
Measurements depth: 4030 mm
Measurements height: 1790 mm

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 18.5 KW

Media

Chip conveyor: Yes

Additional Equipment

- Central lubrication
- Two Heinbuch chucks
- 15 fixed tool holders
- 5 driven tools
- Optical tool measurement

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length 450 mm
- - Main and counter spindle clearance 65 mm
- - 2 c-axes
- - Tool turret 1 for 10 tool holder vdi30 of which red.
- - 10 with x, z and y axes.
- - 1 v-axis
- - Tool turret 2 for 10 tool holder vdi30 of which rot. 10 with x, z axes.
- - Bar loader dimensions length 2500 mm // width 1200 mm

Extra information

- The machine has been completely overhauled in 2015 // Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
