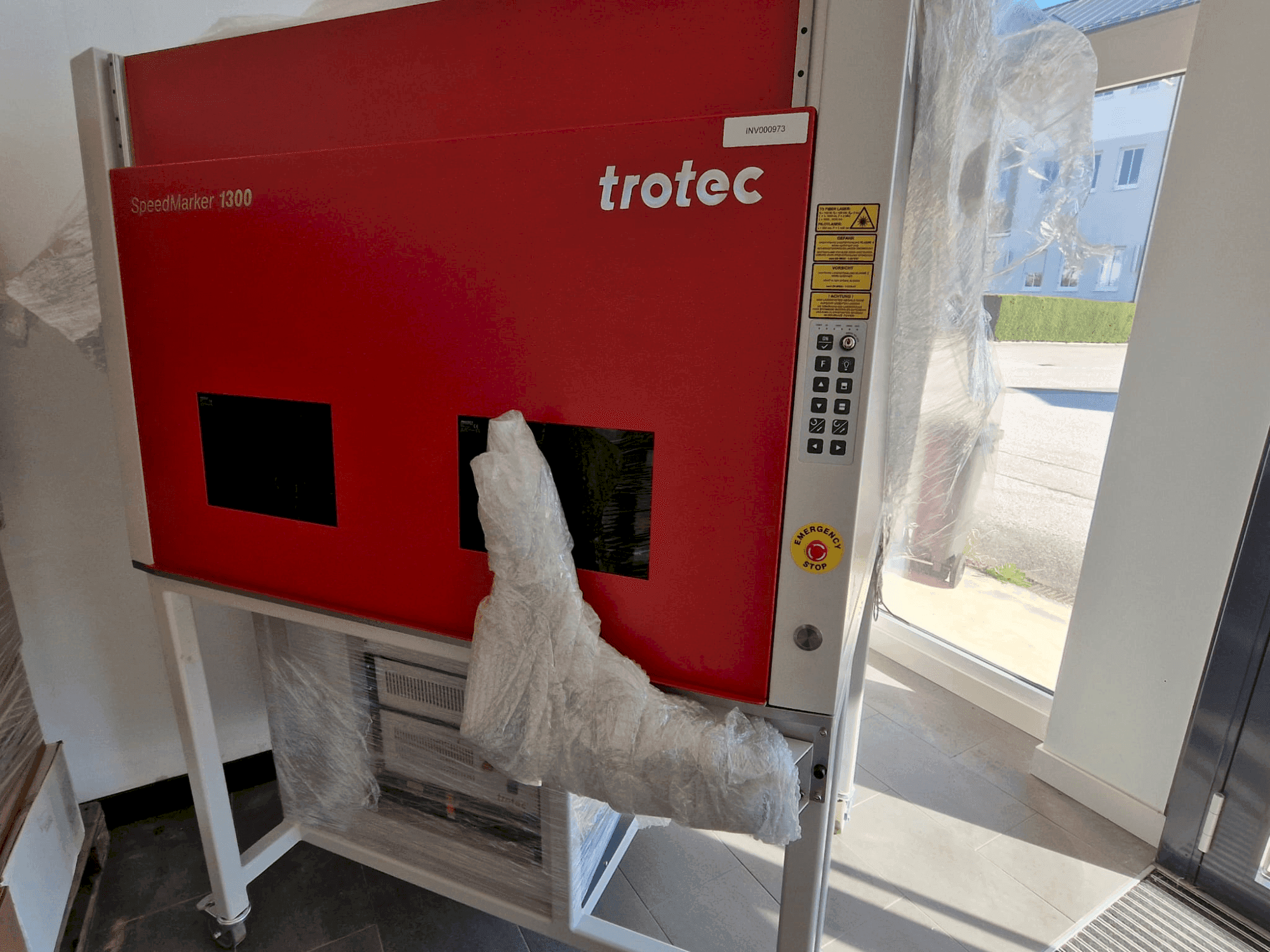

Trotec - SpeedMarker 1300DE-OTH-TRO-2022-00001

Additional Equipment

• - Pilot laser 650 mm / < 1 mW for focus adjustment to display the labelling field

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Air cooling
  • - Speedmark software package with graphical user interface
  • - Temperature: 15 - 35° c
  • - Humidity: 85%, non-condensing
  • - Laser power: available in 20w and 100w laser powers
  • - Flat field lens f254 with marking field: x=1000 mm x y=450 mm
  • - Max. Workpiece height: 303 mm
  • - F = 100 mm, labelling field 70 x 70 mm
  • - F = 160 mm, labelling field 120 x 120 mm
  • - F = 254 mm, labelling field 190 x 190 mm

Extra information

• - General Data Laser Beam Sources: Wavelength: 1065 ± 5 nm Power: 20W Laser Protection Class: 4 Scan Head: Galvanometer deflection unit Standard Equipment: Planar field objective F-Theta 160 mm Labelling field approx. 120 x 120 mm Control Unit Laser Control Interface: Ready for operation, laser start, laser marking completed, laser emission, emergency off Safety shutdown
