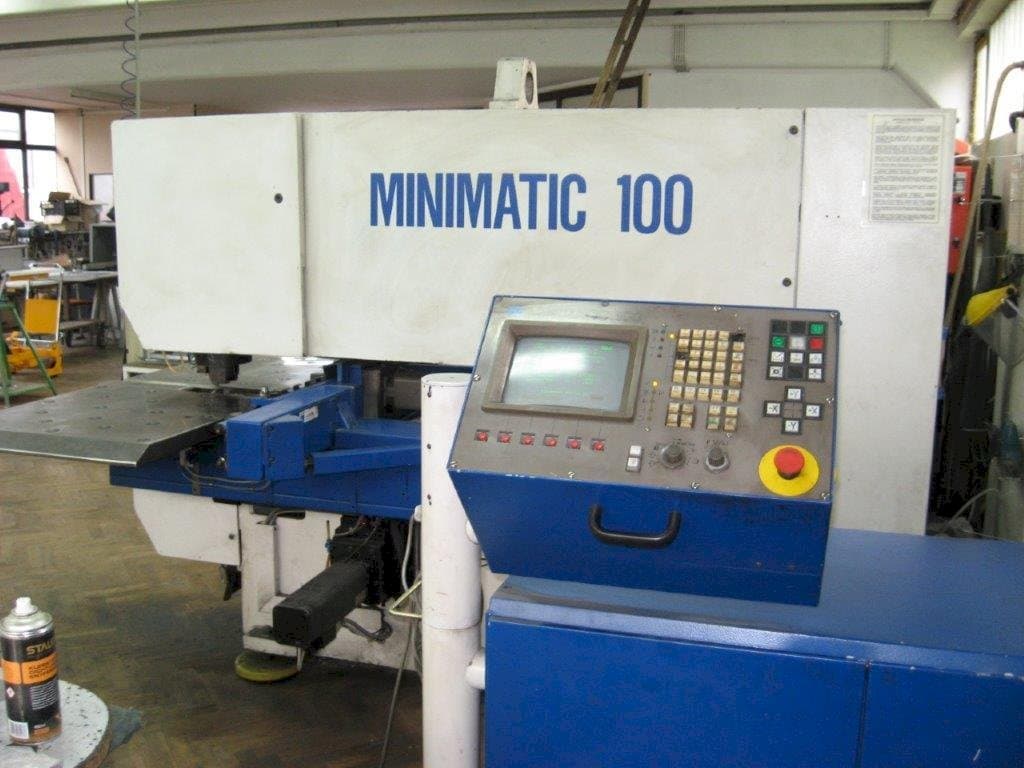

Front view of Trumpf Minimatic 100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Minimatic 100

Photo Gallery

TRUMPF - Minimatic 100HR-PUN-TRU-1989-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Minimatic 100 Punching Machine

Show in original language

This Trumpf Minimatic 100 Punching Machine from Germany was manufactured in 1989. Equipped with a Siemens Sinumerik 3N control unit, this machine can work with a punching force of 150 kN.

Overview

brand: TRUMPF
year: 1989
MODEL: Minimatic 100
application type: Punching
Location: Croatia
machine type: CNC Punch Press
control unit brand: SIEMENS

Technical Information - TRUMPF Minimatic 100

General Data

Measurements width: 1800 mm
Measurements depth: 3300 mm
Measurements height: 1900 mm
Machine weight: 3500 kg

Control Unit

Model: Sinumerik 3N
CNC main language: German
Brand: SIEMENS

Main drive

Punching force: 150 kN
Maximum sheet thickness: 1 mm

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 750 mm

Workpiece

Workpiece x: 750 mm
Workpiece y: 750 mm

Tools

Number of stations: 1
Slots in storage: 9

Max Material thickness

Steel: 4 mm

Media

Main electronic connection: 380V 50Hz
Power consumption: 9 kVA

Additional Information

Machine history

Material type: Steel
Material thickness: 1 mm
End product: Kitchenware
Industries: Kitchen elements, interiors

Machine Benefits

Technical Machine Benefits:
- - Fast sheet perforation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
