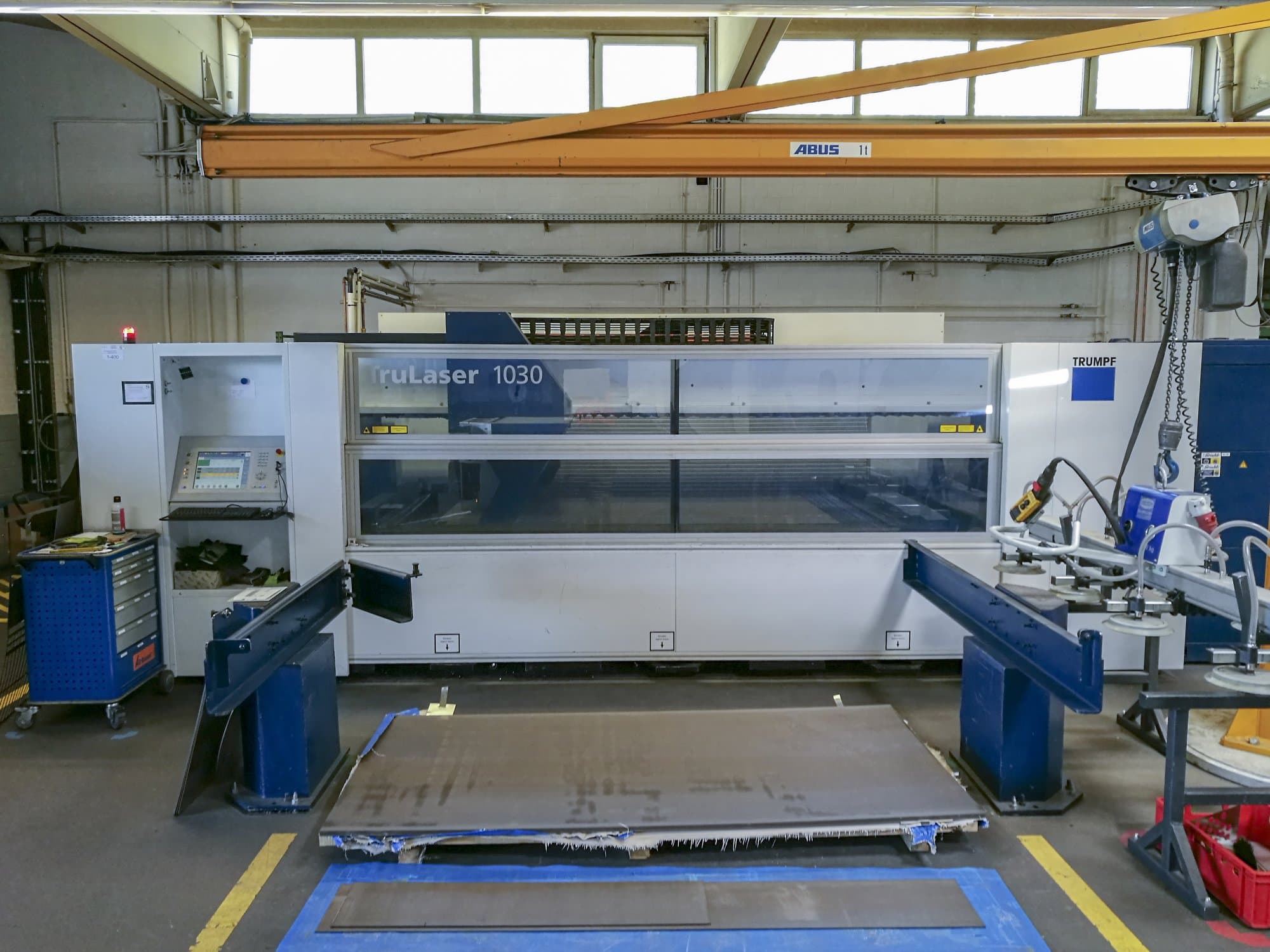

Front view of Trumpf TruLaser 1030 (L22) Machine
Front view of Trumpf TruLaser 1030 (L22) Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruLaser 1030 (L22)DE-LAS-TRU-2010-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf TruLaser 1030 (L22) Laser Cutting Machine was manufactured in Germany in 2010 and has been operative for approximately 20000 production hours ever since. Operated through a B&R Automation PC620 Control unit, this machine has handled mainly steel of up to 8 mm of thickness in the past. With maintenance inspections every 6 months run by Trumpf, the equipment has a recently replaced tube, UV lamp, gas bottle and a new spare cutting head.

Overview

  • brand: TRUMPF
  • year: 2010
  • MODEL: TruLaser 1030 (L22)
  • production hours: 20000
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine

Technical Information - TRUMPF TruLaser 1030 (L22)

General Data

  • Measurements width: 7369 mm
  • Measurements depth: 2723 mm
  • Measurements height: 2291 mm
  • Machine weight: 8900 kg

Control Unit

  • Model: Automation PC620

Main drive

  • Laserpower: 2 kW
  • Laser type: CO2
  • Laser brand: Trumpf

Movement

  • X-AXIS Movement: 3048 mm
  • Y-AXIS Movement: 1524 mm
  • Z-AXIS Movement: 76 mm

Workpiece

  • Workpiece weight: 575 kg

Max Material thickness

  • Steel: 15 mm
  • Stainless steel: 6 mm
  • Aluminum: 5 mm

Media

  • Main electronic connection: 400 V
  • Power consumption: 65 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
