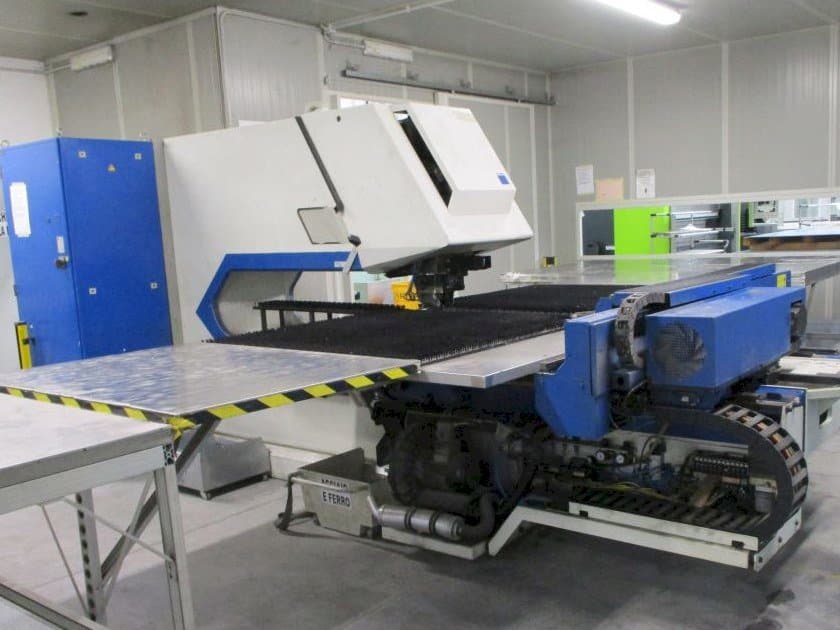

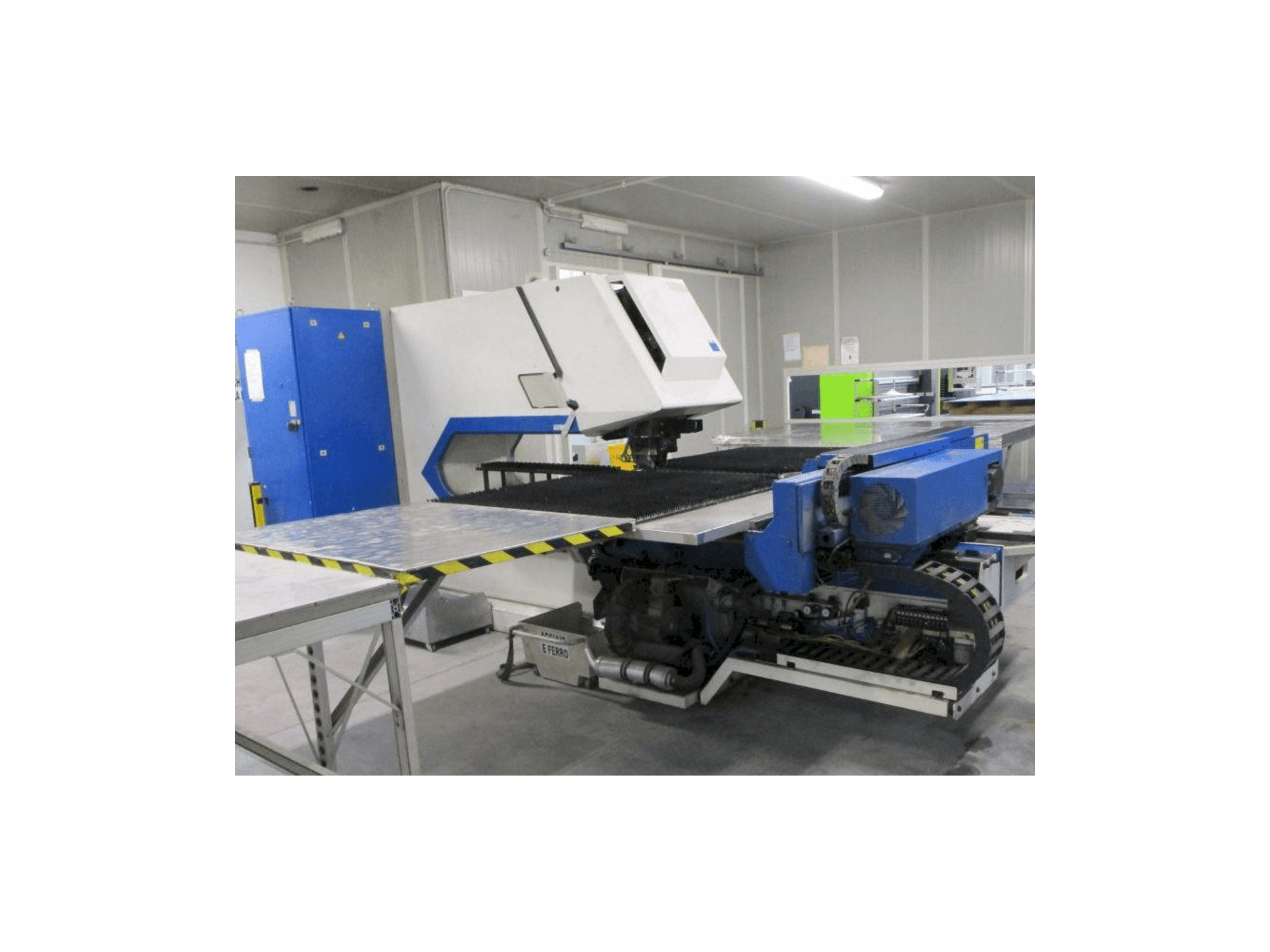

This Trumpf Trumatic 2000R Turret Punching Machine was made in the year 2000 in Germany and has been working for 39329 hours. Operated through a Bosch Type 3 Control unit, this machine can work with a punching force of 180 kN with a maximum sheet thickness of 6.4 mm. It stands out for its 21 punch boxes and 45 punches of various shapes and sizes. Must be noted that the machine is currently inside a soundproof box.
Overview
- brand: TRUMPF
- year: 2000
- MODEL: Trumatic 2000R
- production hours: 39329
- application type: Punching
- Location: Italy
- machine type: Turret Punch Press
- control unit brand: BOSCH
Technical Information - TRUMPF Trumatic 2000R
General Data
- Measurements width: 4100 mm
- Measurements depth: 5700 mm
- Measurements height: 2255 mm
- Machine weight: 8000 kg
Control Unit
- Model: Type 3
- Brand: BOSCH
Main drive
- Punching force: 180 kN
- Maximum sheet thickness: 6.4 mm
Movement
- X-AXIS Movement: 90 m/min MM
- Y-AXIS Movement: 60 m/min MM
- X-Y-Simultaneous Movement: 108 m/min MM
Workpiece
- Workpiece weight: 75 kg
Table
- Outer length: 1275 mm
- Outer width: 1280 mm
Tools
- Slots in storage: 9-90
- Max tool diameter: 200 mm
Media
- Power consumption: 17 kVA
Additional Equipment
- - 21 tool holders
- - 45 punches
- - soundproof box
Additional Information
- Technical Machine Benefits:
- - Programmable extractor force 4000-17000 kn
- - 9 tools linear magazine
- - Rotation of all tools
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
