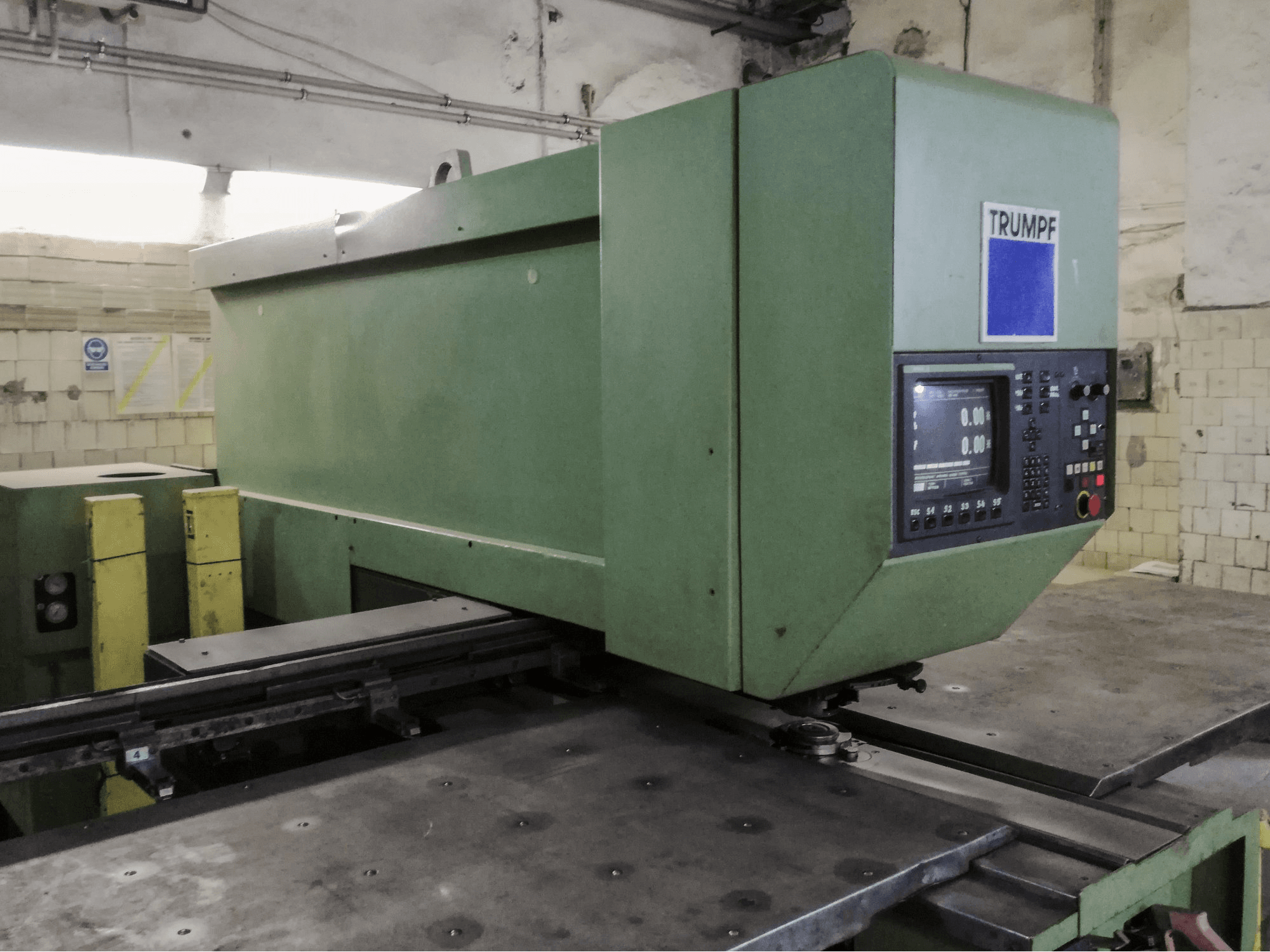

Left view 1 of Trumpf Trumatic 235 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 235

Photo Gallery

TRUMPF - Trumatic 235PL-PUN-TRU-1987-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 235 Turret Punching Machine

Show in original language

This Trumpf Trumatic 235 Turret Punching Machine from Germany was manufactured in 1987. Equipped with a Control unit from Bosch, this compact machine has a punching force of 250 kN.

Overview

brand: TRUMPF
year: 1987
MODEL: Trumatic 235
application type: Punching
Location: Poland
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 235

General Data

Measurements width: 6160 mm
Measurements depth: 4500 mm
Measurements height: 2140 mm
Machine weight: 7500 kg

Control Unit

Brand: BOSCH

Main drive

Punching force: 250 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 100 kg

Max Material thickness

Steel: 6.4 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 14 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
