➤ Used Trumpf Trumatic 500 Turret Punching Machine

Show in original language

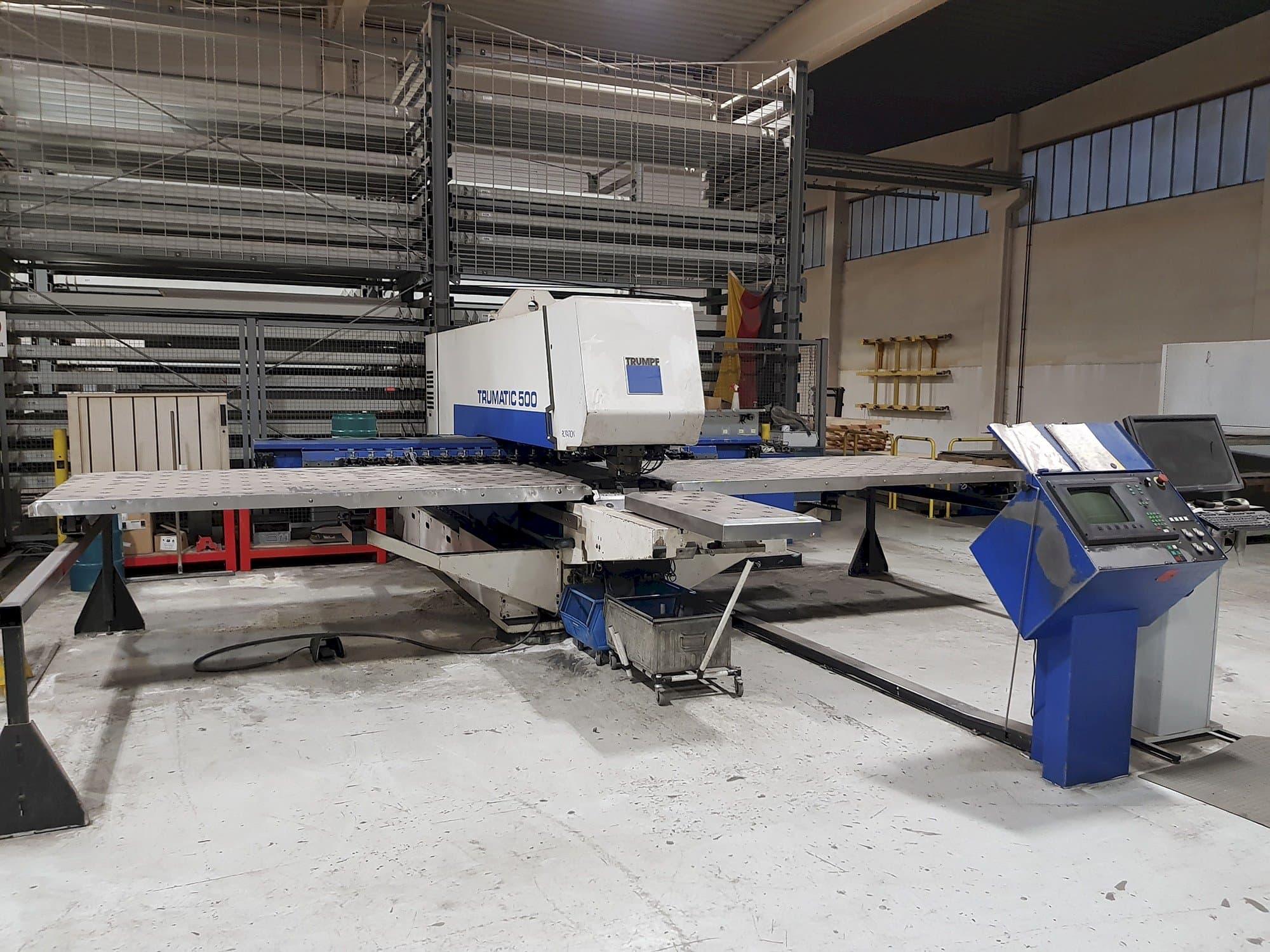

This Trumpf Trumatic 500 Turret Punching Machine was manufactured in the year 1996 in Germany and is equipped with a Bosch Trumagraph CC220S control unit. It has a production record of 79000 working hours. This machine has a punching force of 220 kN and a maximum sheet thickness of 8 mm. This machine includes the following equipment options: multitool, slot, softpunch, thread shape, signing, small parts sorting, low-scratch processing and re-setting.

Overview

brand: TRUMPF
year: 1996
MODEL: Trumatic 500
production hours: 79000
application type: Punching
Location: Germany
machine type: Turret Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 6900 mm
Measurements depth: 5800 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: Trumagraph CC220S
Brand: BOSCH

Main drive

Punching force: 220 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2500 mm
X-AXIS Working Feed: 90 m/min
Y-AXIS Movement: 1300 mm
Y-AXIS Working Feed: 60 m/min

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1300 mm
Workpiece z: 8 mm
Workpiece weight: 150 kg

Tools

Number of stations: 20

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 17 kVA
Air pressure: 6 bar
Chip conveyor: Yes

Additional Equipment

- Re-setting cylinder available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
